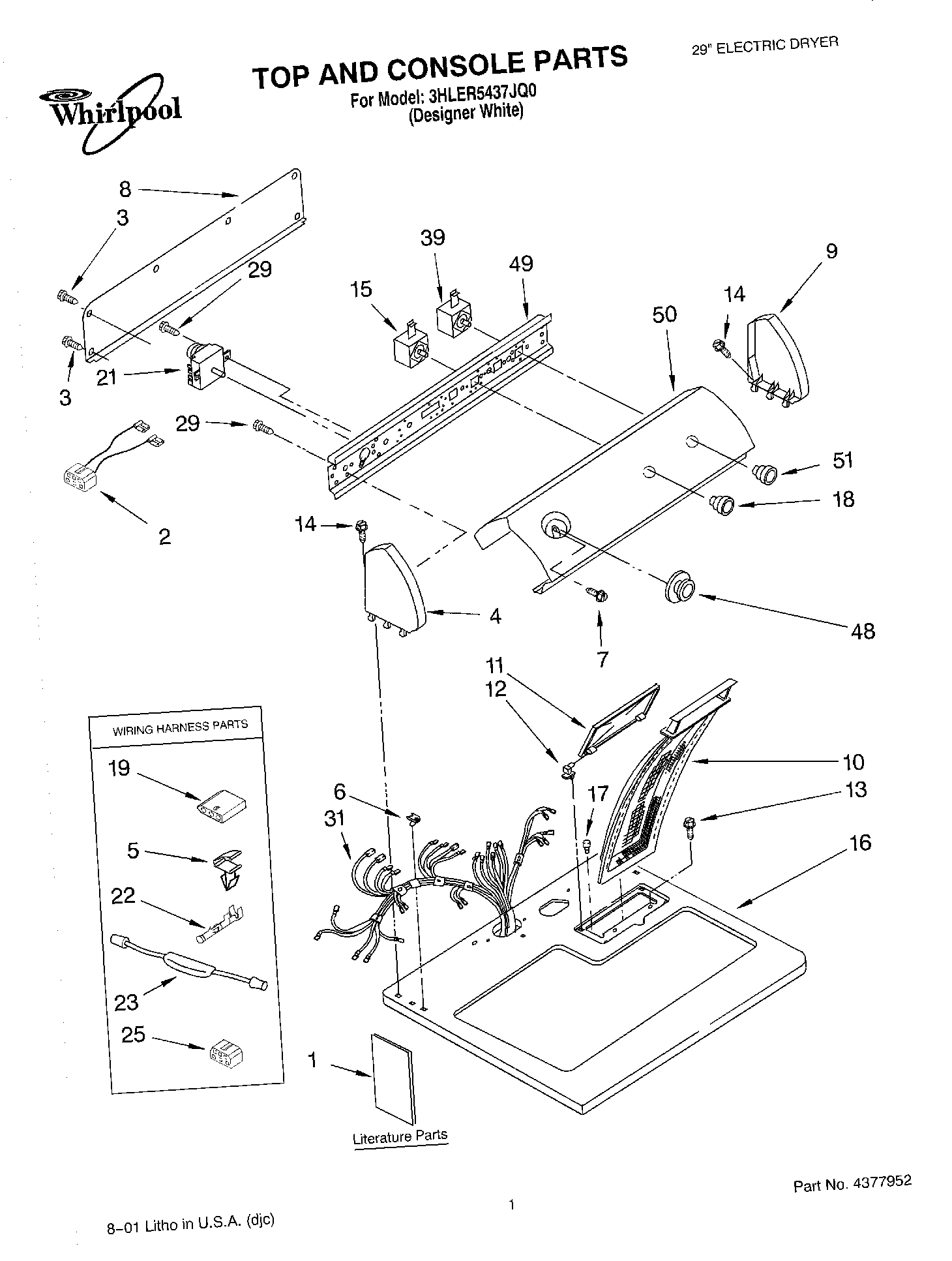

3HLER5437JQ0 01 – SECTION

3HLER5437JQ0 01 – SECTION

Written by

in

3HLER5437JQ0 01 – SECTION

Products

PositionProduct
Dryer
1Literature Parts (Installation Instructions (Spanish))
1Literature Parts (Wiring Diagram)
1Literature Parts (Use & Care Guide)
1Literature Parts (Installation Instructions (English))
28283286 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
5WP3394427 Whirlpool Clip
6WP357213 Whirlpool Hinge Stopper
73400859 Whirlpool Screw
8W10103406 Whirlpool Rear Panel
9W10820038 Whirlpool Endcap
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044470 Whirlpool Hinge Assembly
12WPW10044480 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
153399638 Whirlpool Switch
16Top
17Bumper, Lint Lid
18WP3957799 Whirlpool Knob
193936144 Whirlpool Connector
21WP3396215 Whirlpool Timer
22WP94614 Whirlpool Terminal
23279872 Whirlpool Resistor
25Block, Disconnect
29WPW10139210 Whirlpool Screw
31Harness, Wiring
39WP3395382 Whirlpool Push To Start Switch
48WP3957754 Whirlpool Knob Assembly
49Bracket, Control
50Panel, Control
513957804 Whirlpool Knob
51350938 Whirlpool Spray Gun
5172017 Whirlpool Appliance Touch-Up Paint White
51799344 Whirlpool Refrigerator Paint
51350930 Whirlpool White Spray Paint
