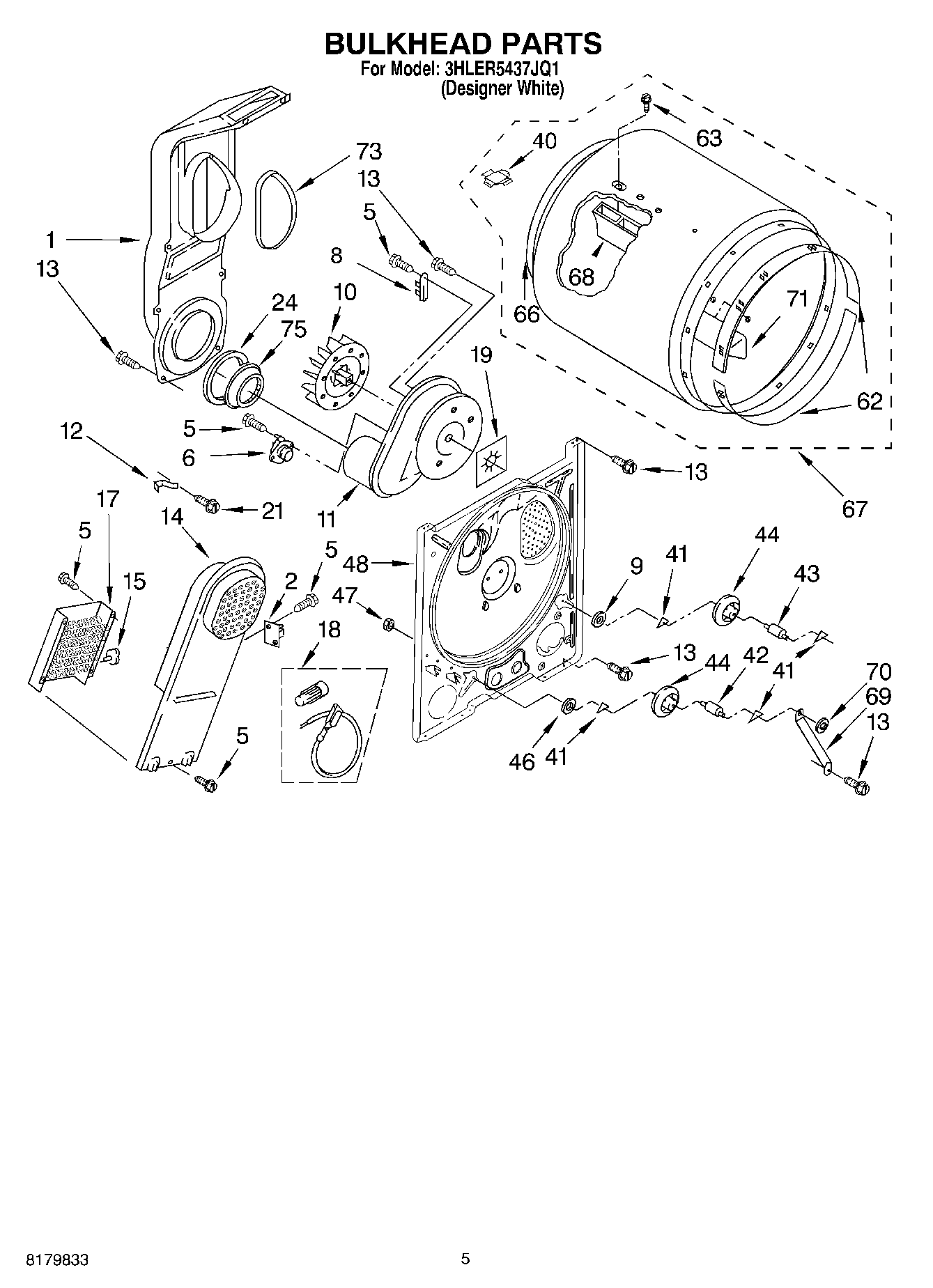

3HLER5437JQ1 03 – SECTION

Products

Position	Product
1	W11117429 Whirlpool Chute Assembly
2	279816 Whirlpool Dryer Thermal Cut-Off Fuse Kit
5	WP90767 Whirlpool Screw
6	WP3387137 Whirlpool Thermostat
8	WP3392519 Whirlpool Dryer Thermal Fuse
9	WP3388703 Whirlpool Washer
10	WP694089 Whirlpool Dryer Blower Wheel
11	WP8577230 Whirlpool Housing
12	279771 Whirlpool Clip
13	SCREW
14	WP8541818 Whirlpool Box
15	WP3977749 Whirlpool Thermostat Fix
17	WP279843 Whirlpool Heating Element
18	279457 Whirlpool Dryer Heating Element Wide Spade Connection
19	Seal, Blower
21	WP489463 Whirlpool Refrigerator Screw
24	W11415783 Whirlpool Seal
40	8066086 Whirlpool Plug
41	WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
42	SHAFT SUPPORT ROLLER DRYER
43	SHAFT SUPPORT ROLLER DRYER
44	349241T Whirlpool Dryer Drum Support Roller Kit
46	WP348197 Whirlpool Washer Assembly
47	WP3359452 Whirlpool Nut
48	W11178668 Whirlpool Bulkhead
62	279441 Whirlpool Front Bearing Ring
63	WPW10109200 Whirlpool Screw
66	W10612022 Whirlpool Felt Seal
67	W10899578 Whirlpool Dryer Drum Assembly
68	BAFFLE-DRM
69	W11684613 Whirlpool Bracket
70	WP90296 Whirlpool Clip
71	WP3403636 Whirlpool Drum Baffle
73	SEAL
75	W11233063 Whirlpool Shield Assembly
