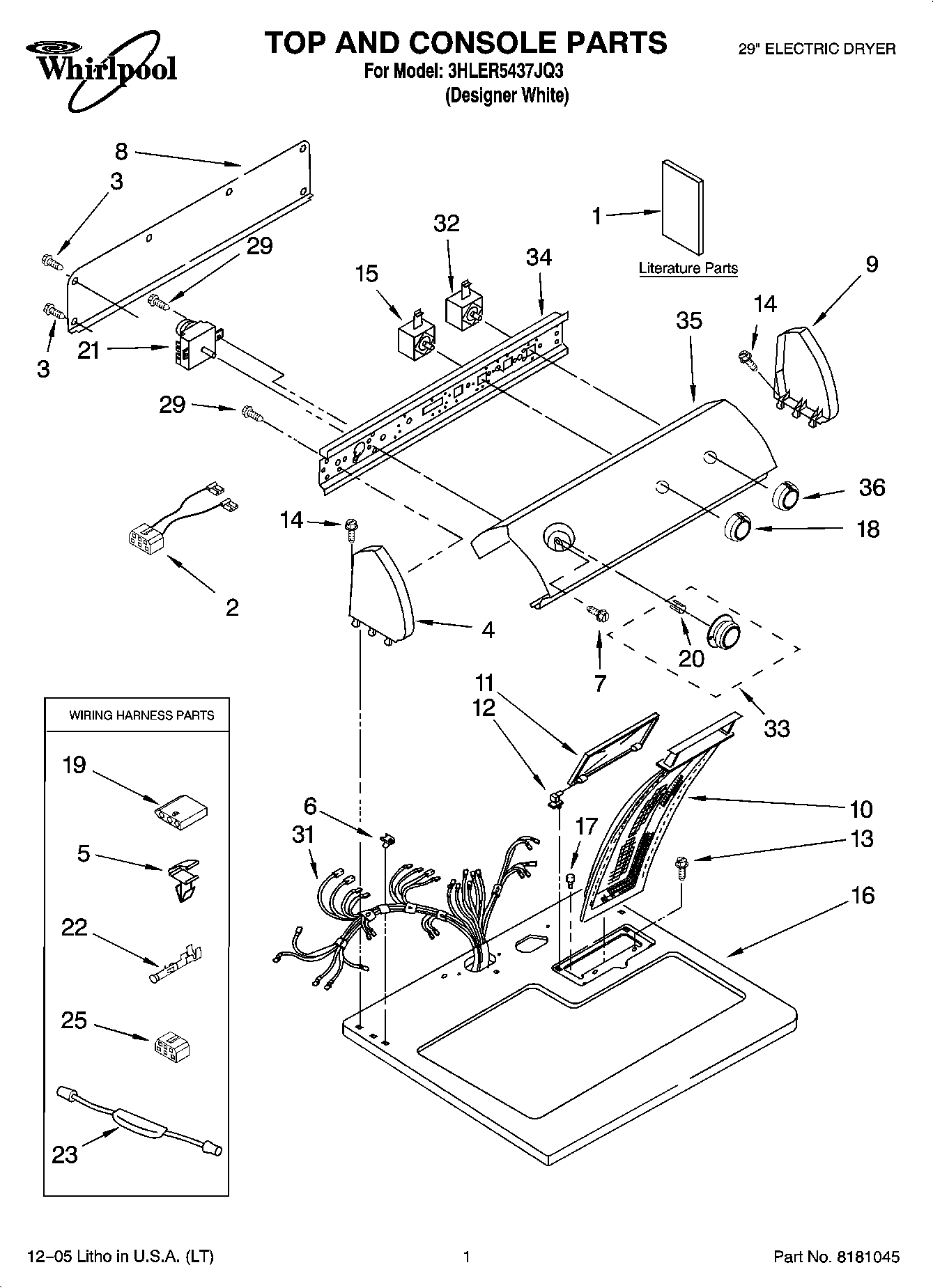

3HLER5437JQ3 01 – TOP AND CONSOLE PARTS

3HLER5437JQ3 01 – TOP AND CONSOLE PARTS

Written by

in

3HLER5437JQ3 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Following May Be Purchased DO-IT-YOURSELF REPAIR MANUALS
1Installation Instructions (Spanish)
1Installation Instructions (English)
1WPL 677818
1Use & Care Guide
1Wiring Diagram
28283286 Whirlpool Wire Harness
3WP693995 Whirlpool Screw
5WP3394427 Whirlpool Clip
6WP357213 Whirlpool Hinge Stopper
73400859 Whirlpool Screw
8W10103406 Whirlpool Rear Panel
9W10820038 Whirlpool Endcap
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
153399638 Whirlpool Switch
16Top
17Bumper, Lint Lid
18WP3957799 Whirlpool Knob
193936144 Whirlpool Connector
20WP688805 Whirlpool Spring Clip
21WP3396215 Whirlpool Timer
22WP94614 Whirlpool Terminal
23279872 Whirlpool Resistor
25Block, Disconnect
29WPW10139210 Whirlpool Screw
31Harness, Wiring
32WP3395382 Whirlpool Push To Start Switch
33WP3957754 Whirlpool Knob Assembly
34Bracket, Control
35Panel, Control
363957804 Whirlpool Knob
