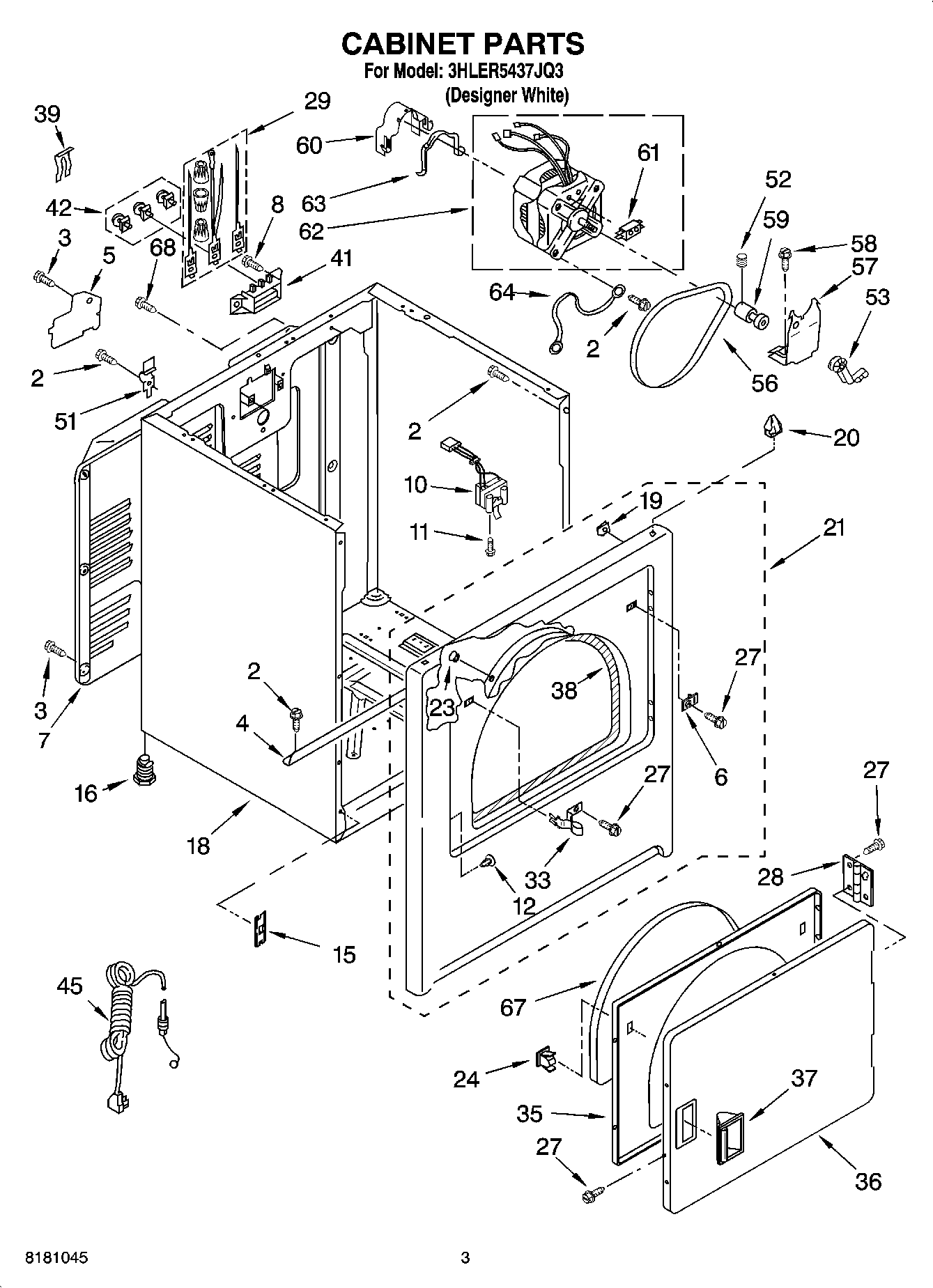

3HLER5437JQ3 02 – CABINET PARTS

3HLER5437JQ3 02 – CABINET PARTS

Products

PositionProduct
2SCREW
3WP693995 Whirlpool Screw
4Bracket, Cabinet
5W11539855 Whirlpool Refrigerator Pump
6WP3403630 Whirlpool Plug
7280043 Whirlpool Rear Panel
8WP308685 Whirlpool Microwave Screw
10SWITCH-DOOR DRYER
11WP3395530 Whirlpool Screw
12WP3404413 Whirlpool Plug
15W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
1649621 Whirlpool Leveling Feet
188533643 Whirlpool Dryer White Cabinet
19WP98234 Whirlpool Nut
20WP18776 Whirlpool Lock
21Panel, Front
23279220 Whirlpool Clip
24WP3389441 Whirlpool Door Catch
27WP488627 Whirlpool Refrigerator Screw
28WPW10362431 Whirlpool Hinge Assembly
29279318 Whirlpool Terminal
33W11429589 Whirlpool Strike
35WP3402341 Whirlpool Door
36W10861227 Whirlpool Door Assembly
37WP3405184 Whirlpool White Door Handle
38W11035878 Whirlpool Bearing and Seal
39W11712577 Whirlpool Clip
41WP3397659 Whirlpool Terminal Block
42279393 Whirlpool Terminal Block Screw and Nut Kit
45Cord, Power
51WP8066217 Whirlpool Hinge
52SCREW, SET
53WP691366 Whirlpool Dryer Idler Pulley Assembly
56341241 Whirlpool Dryer Drum Belt
57WP348780 Whirlpool Base
583400500 Whirlpool Screw
59W11618508 Whirlpool Drive Motor
60WP3404162 Whirlpool Clamp
61279827 Whirlpool Dryer Drive Motor
63WP660658 Whirlpool Clamp
64Wire, Ground (Motor)
67SEAL-DOOR DRYER
68W10850756 Whirlpool Screw
