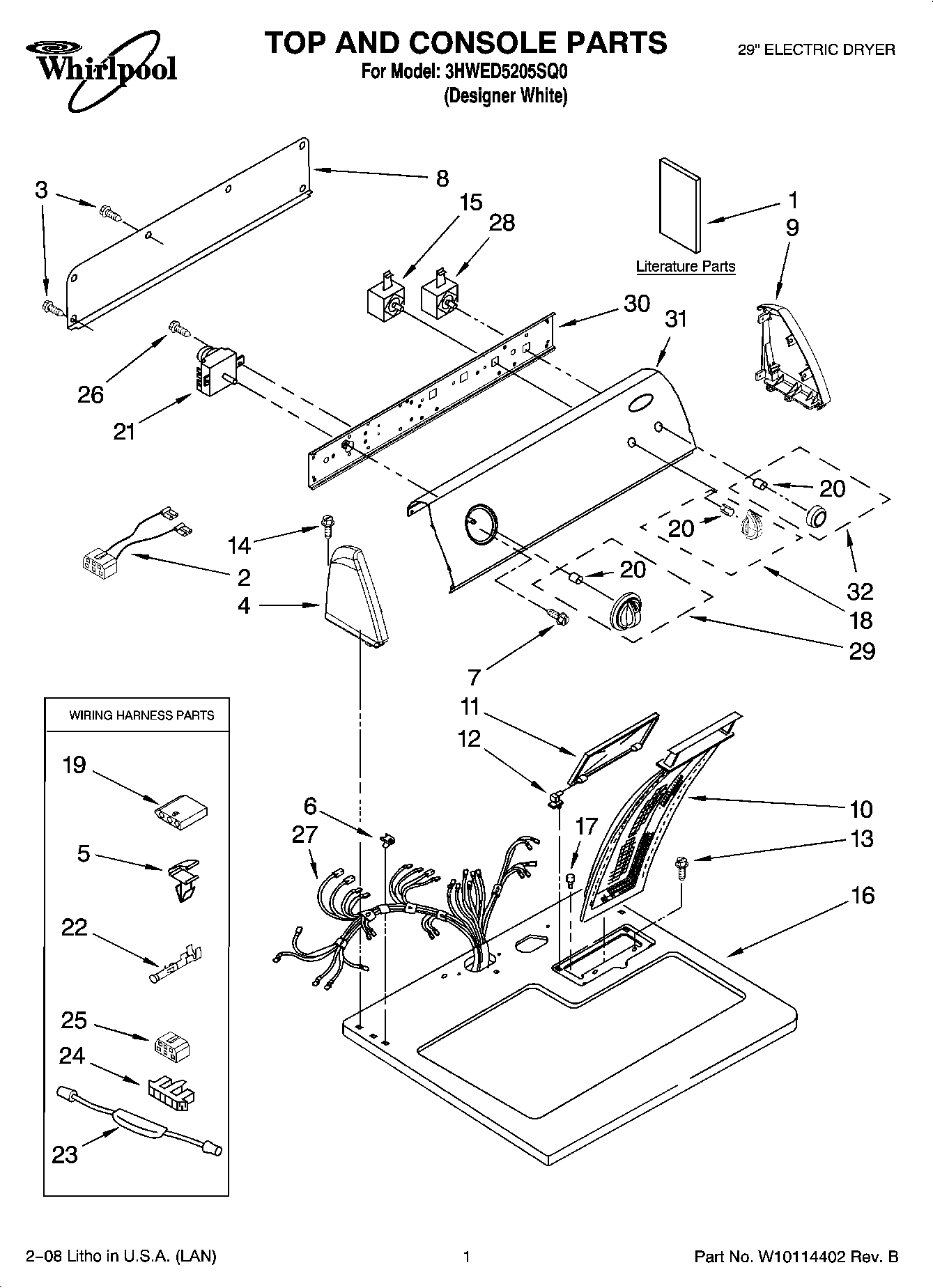

3HWED5205SQ0 01 – TOP AND CONSOLE PARTS

3HWED5205SQ0 01 – TOP AND CONSOLE PARTS

Written by

in

3HWED5205SQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1Wiring Diagram
1Installation Instructions
1Use & Care Guide
2Wire Jumper Assembly
3WP693995 Whirlpool Screw
5WP3394427 Whirlpool Clip
6WP357213 Whirlpool Hinge Stopper
73400859 Whirlpool Screw
8W10103406 Whirlpool Rear Panel
9W10820038 Whirlpool Endcap
10WP349639 Whirlpool Lint Filter
11Cover, Lint Screen
12WPW10044480 Whirlpool Hinge Assembly
12WPW10044470 Whirlpool Hinge Assembly
13W11693756 Whirlpool Screw Assembly
14WP388326 Whirlpool Screw
153399638 Whirlpool Switch
16Top
17Bumper, Lint Lid
18Knob, Control
193936144 Whirlpool Connector
20WP8536939 Whirlpool Spring Clip
21WP3396215 Whirlpool Timer
22WP94614 Whirlpool Terminal
23279872 Whirlpool Resistor
24Connector, Timer
25Block, Disconnect
26WP90767 Whirlpool Screw
27Harness, Wiring
28WP3395382 Whirlpool Push To Start Switch
29WP8566061 Whirlpool Knob
30Bracket, Control
31Panel, Control
32WP8566065 Whirlpool Knob
