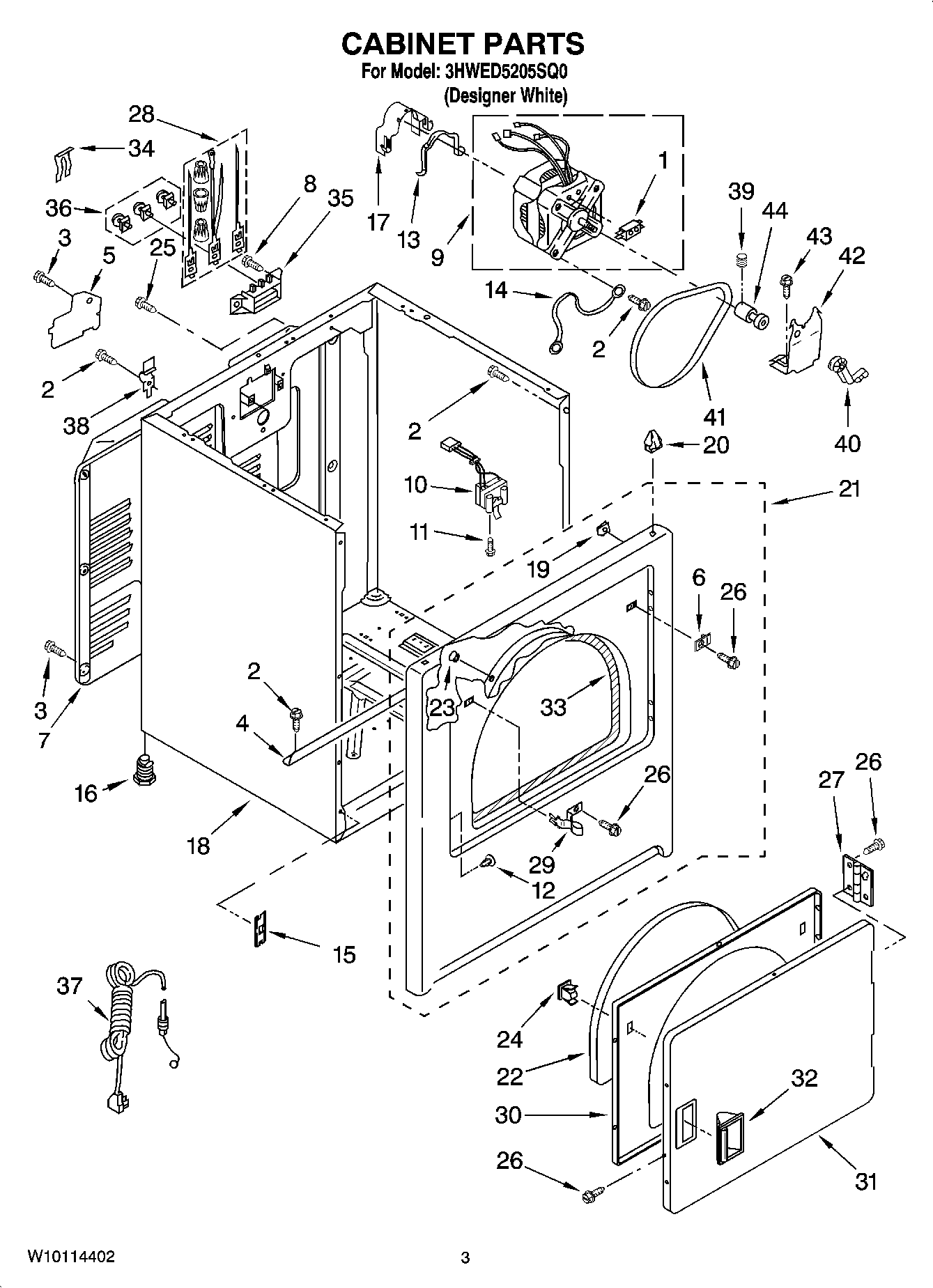

3HWED5205SQ0 02 – CABINET PARTS

Products

Position	Product
1	279827 Whirlpool Dryer Drive Motor
2	SCREW
3	WP693995 Whirlpool Screw
4	Bracket, Cabinet
5	W11539855 Whirlpool Refrigerator Pump
6	WP3403630 Whirlpool Plug
7	280043 Whirlpool Rear Panel
8	WP308685 Whirlpool Microwave Screw
10	SWITCH-DOOR DRYER
11	WP3395530 Whirlpool Screw
12	WP3404413 Whirlpool Plug
13	WP660658 Whirlpool Clamp
14	Wire, Ground (Motor)
15	W10854425 Whirlpool Dryer Front Panel Bottom Mounting Clip
16	49621 Whirlpool Leveling Feet
17	WP3404162 Whirlpool Clamp
18	8533643 Whirlpool Dryer White Cabinet
19	WP98234 Whirlpool Nut
20	WP18776 Whirlpool Lock
21	Panel, Front
22	SEAL-DOOR DRYER
23	279220 Whirlpool Clip
24	WP3389441 Whirlpool Door Catch
25	W10850756 Whirlpool Screw
26	WP488627 Whirlpool Refrigerator Screw
27	WPW10362431 Whirlpool Hinge Assembly
28	279318 Whirlpool Terminal
29	W11429589 Whirlpool Strike
30	WP3402341 Whirlpool Door
31	W10861227 Whirlpool Door Assembly
32	WP3405184 Whirlpool White Door Handle
33	W11035878 Whirlpool Bearing and Seal
34	W11712577 Whirlpool Clip
35	WP3397659 Whirlpool Terminal Block
36	279393 Whirlpool Terminal Block Screw and Nut Kit
37	Cord, Power
38	WP8066217 Whirlpool Hinge
39	SCREW, SET
40	WP691366 Whirlpool Dryer Idler Pulley Assembly
41	341241 Whirlpool Dryer Drum Belt
42	WP348780 Whirlpool Base
43	3400500 Whirlpool Screw
44	W11618508 Whirlpool Drive Motor
