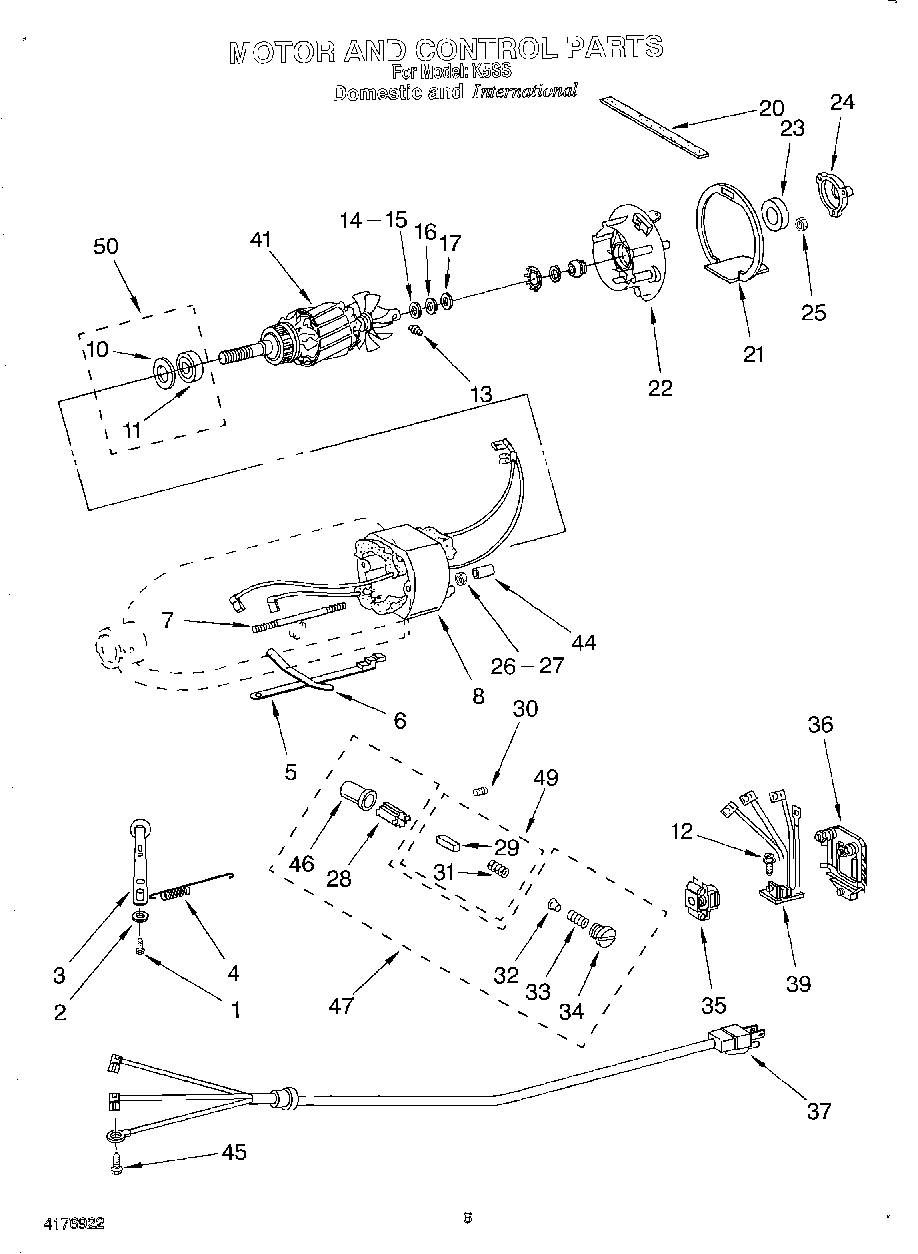

3K5SS 05 – MOTOR AND CONTROL

3K5SS 05 – MOTOR AND CONTROL

Written by

in

3K5SS 05 – MOTOR AND CONTROL

Products

Position	Product
	67500-55 “O“ Ring (Mixer Attachment Pak (Includes Food Grinder (FG-A), Food Strainer (FVSP), And Vegetable Slicer, (RVS-A)
	Food Tray (FT)
	Speed Disc (Service Tool)
	JUICER (JE)
	FOOD GRINDER (FG-A)
	W11312468 Whirlpool Pour Shelf
	WPL 3177925
	WPW10714130 Whirlpool Mixer Bowl
	WPL 3180616
	4162154 Whirlpool Water Jacket
	W11200218 Whirlpool Grease Filter
	PASTA MAKER PLATES (SNPA)
	FRUIT/VEGETABLE STRAINER PARTS (USE WITH FG-A MODEL ONLY) (FVSP)
	FRUIT/VEGETABLE STRAINER AND FOOD GRINDER (FVS-FG-A)
	PASTA MAKER AND FOOD GRINDER (INCLUDES SNP PASTA MAKER PLATES) (SNFGA)
	ROTOR SLICER/ SHREDDER(WITH4 STANDARD CONES) FINE SHREDDER,COARSE SHREDDER,THICK SLICER,AND THIN SLICER (RVS-A)
	Grain Mill (GM-A)
	CAN OPENER (CO)
	SAUSAGE STUFFER KIT (SSA)
1	Screw, Pivot
2	Washer, Spring
3	WP9709276 Whirlpool Speed Control Lever
3	WP9709277 Whirlpool Speed Lever
4	WP3183680 Whirlpool Spring
5	Speed Link & Cam
6	WP240205 Whirlpool Spring
7	W10851015 Whirlpool Stat Screw
8	100 Volt (Japan Only)
8	WPW10417246 Whirlpool Field Assembly
8	W10870869 Whirlpool Field Assembly
10	WP9704324 Whirlpool Washer
11	W11133634 Whirlpool Armature
12	W11084238 Whirlpool Screw Assembly
13	WP16998 Whirlpool Drive Stud
16	W11233557 Whirlpool Washer
20	WP9701501 Whirlpool Seal
21	WP240775-1 Whirlpool Endcap Seal
22	WP3180526 Whirlpool Bearing Bracket
23	WASHER
26	Nut, Hex Machine (10-24)
27	Lock Washer No.10 Ext. Shake- proof
28	W11656718 Whirlpool Insert
29	WPW10380496 Whirlpool Stand Mixer Motor Brush
30	W11176201 Whirlpool Screw
32	WP116286 Whirlpool Spring Cap
33	WP116287 Whirlpool Spring Cap
34	WP3184211 Whirlpool Brush Cap
34	WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
35	WPW10330804 Whirlpool Speed Governor
36	WPW10119326 Whirlpool Speed Control
37	W11105837 Whirlpool Power Cord
37	W11396625 Whirlpool Power Cord
37	W10706734 Whirlpool Power Cord
37	Cord & Plug 110 Volt (Cord & Plug (220 Volts))
37	W11545825 Whirlpool Power Cord
39	W11174552 Whirlpool Stand Mixer Phase Board
39	WPW10325124 Whirlpool Phase Board
41	W11105834 Whirlpool Armature
41	W10900799 Whirlpool Armature
44	W11210996 Whirlpool Sleeve
45	Screw
46	WP3179908 Whirlpool Brush Holder
47	4162546 Whirlpool Brush Holder
50	WPL 4176025
