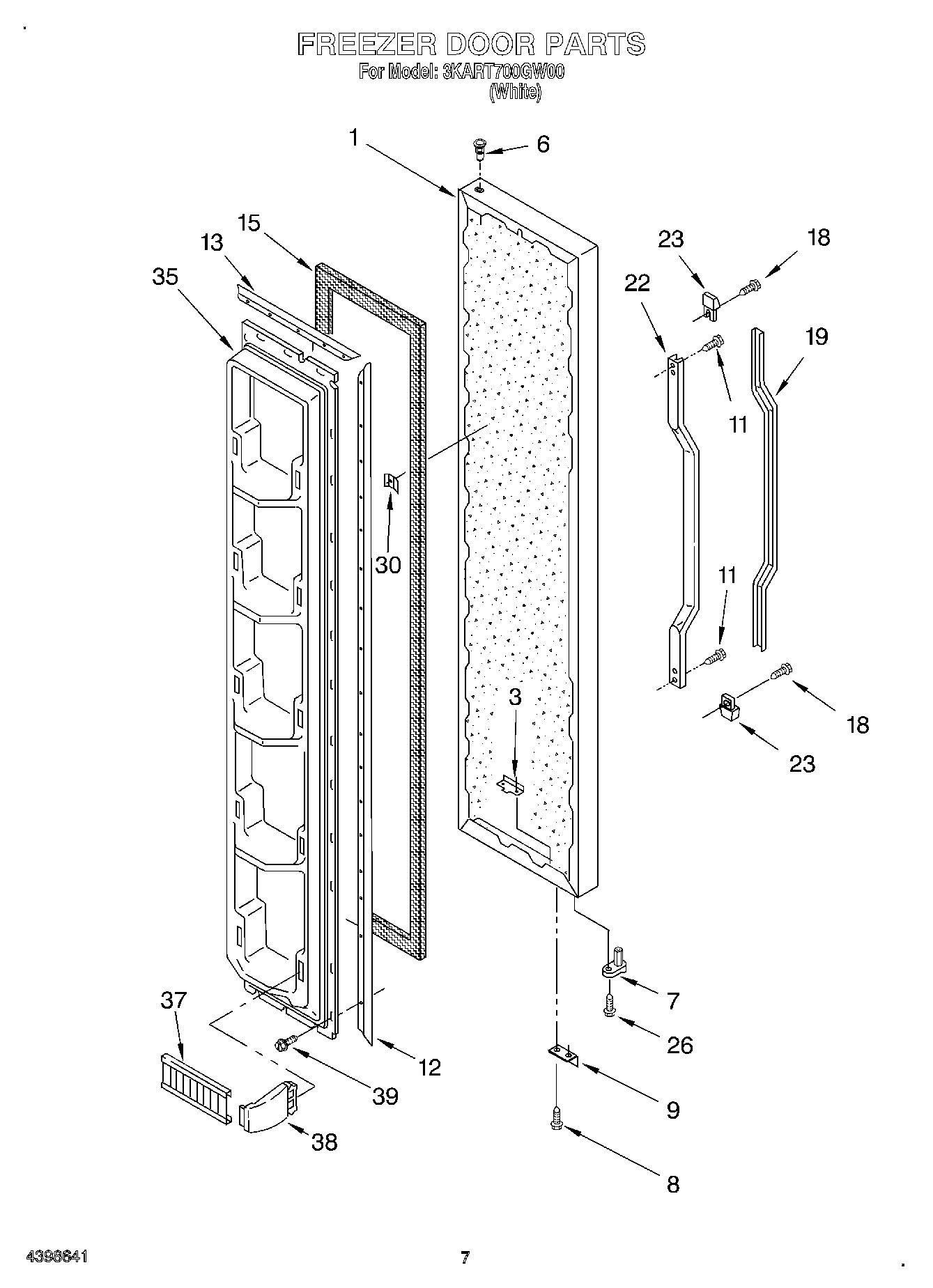

3KART700GW00 05 – FREEZER DOOR

Products

Position	Product
1	Freezer Door Panel
3	SCREW PLATE
6	WP2182181 Whirlpool Refrigerator Thimble
7	WP2182179 Whirlpool Cam Closer
8	WP999367 Whirlpool Refrigerator Screw
9	Bracket, Door Stop (Chrome)
11	WP489463 Whirlpool Refrigerator Screw
12	Retainer, Gasket
13	Retainer, Gasket
15	2188405A Whirlpool Refrigerator Door Gasket
18	WP3400852 Whirlpool Refrigerator Screw
19	Insert, Handle
22	Retainer, Insert
23	End Cap, Handle
26	WP3400012 Whirlpool Refrigerator Screw
30	Screw Anchor (2)
35	Interior, Door Panel
37	Trim, Door Shelf
38	WP2196100 Whirlpool Shelf Retainer Bar Support
39	WP489069 Whirlpool Compactor Screw
