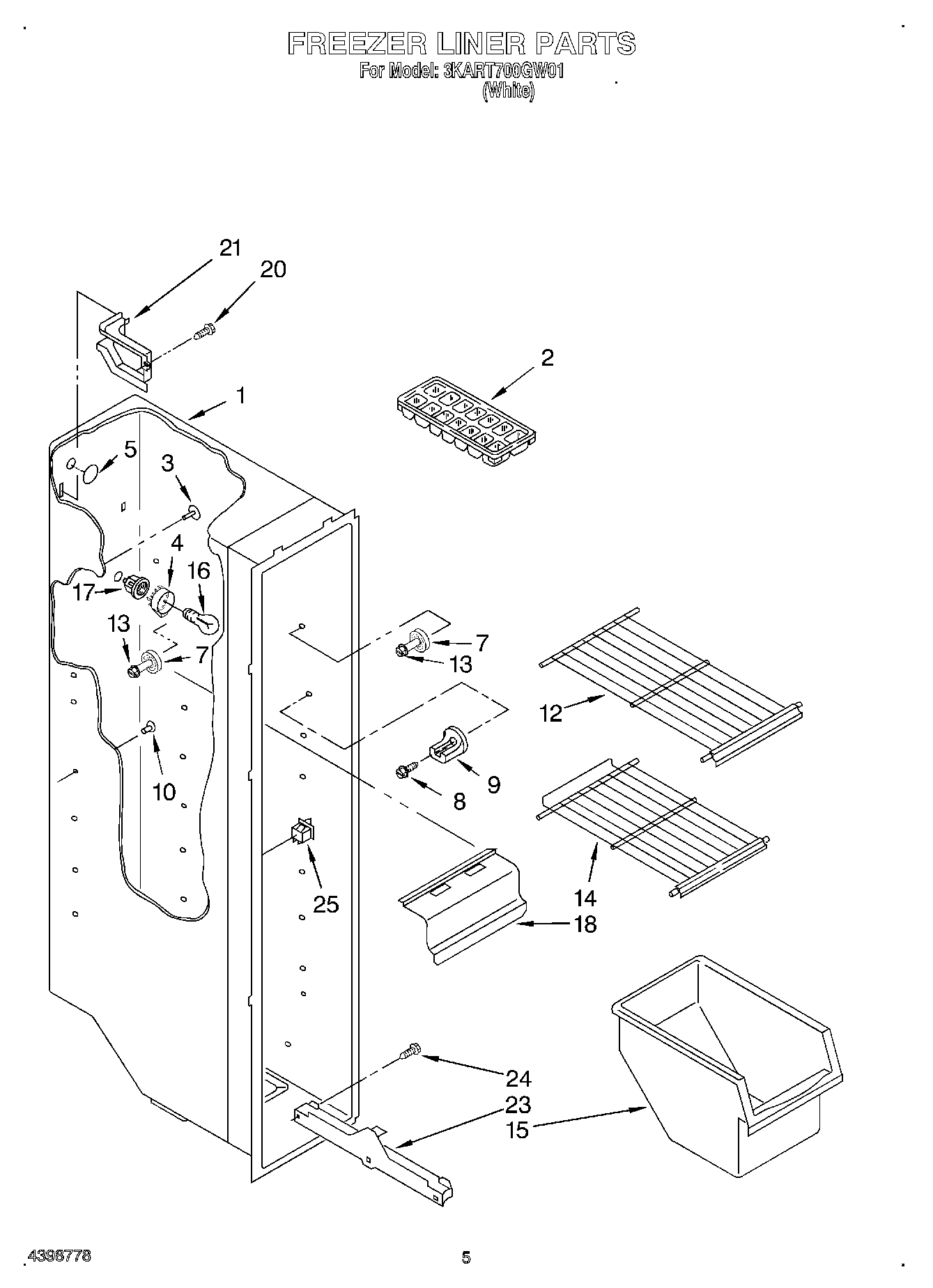

3KART700GW01 03 – FREEZER LINER

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	WP841180A Whirlpool Microwave Glass Turntable Tray
3	WP941839 Whirlpool Refrigerator Button Plug
4	Shroud, Light
5	Hole Seal
7	WP2196483 Whirlpool Refrigerator Shelf Stud
8	W10142289 Whirlpool Air Conditioner Screw
9	Stud, Rear
10	Grommet
12	Shelf
13	WP3400806 Whirlpool Screw
14	Shelf (2)
14	Shelf (1)
15	Bin, Freezer
16	WP67002552 Whirlpool Refrigerator Light Bulb
17	SOCKET
18	WP2155595 Whirlpool Refrigerator Light Lens
20	SCREW
21	Cover, Wiring
23	Slide, Basket (Left Side)
23	W10845583 Whirlpool Refrigerator Track
24	718257 Whirlpool Dishwasher Screw
25	W11384469 Whirlpool Door Switch
