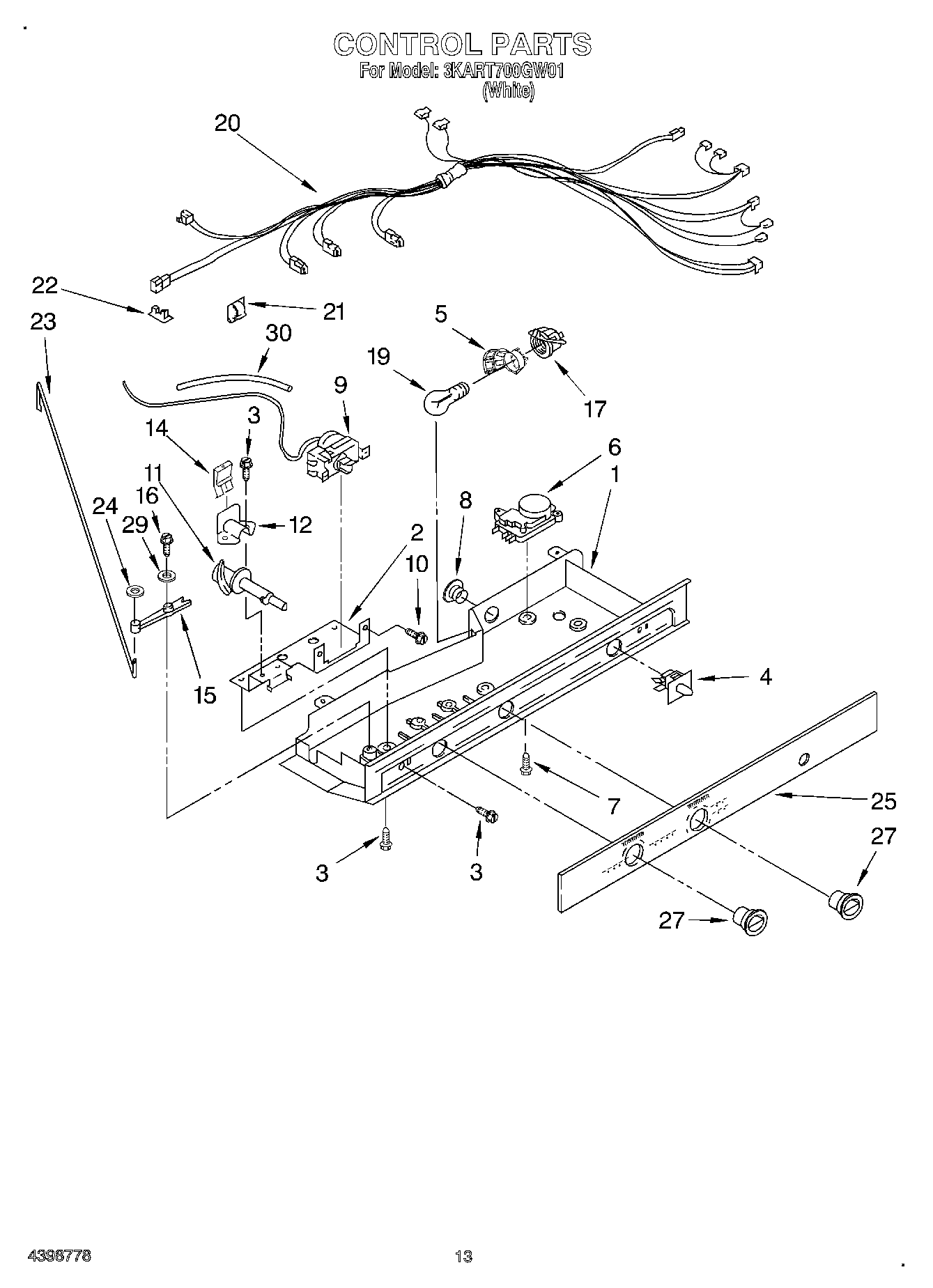

3KART700GW01 08 – CONTROL, OPTIONAL

3KART700GW01 08 – CONTROL, OPTIONAL

Written by

in

3KART700GW01 08 – CONTROL, OPTIONAL

Products

Position	Product
1	Control Box
2	Mounting Bracket
3	WP3196557 Whirlpool Screw
4	WP2149705 Whirlpool Refrigerator Door Switch
5	WP2175210 Whirlpool Refrigerator Shroud
6	Defrost Timer
7	489392 Whirlpool Refrigerator Screw
8	940014 Whirlpool Refrigerator Primary Button Plug
9	WP2198202 Whirlpool Refrigerator Temperature Thermostat
10	WP965173 Whirlpool Dishwasher Screw
11	WP2182195 Whirlpool Refrigerator Cam
12	1110560 Whirlpool Refrigerator Bearing
14	WP2196062 Whirlpool Refrigerator Clip
15	Pivot Arm
16	627068 Whirlpool Refrigerator Screw
17	4387478 Whirlpool Refrigerator Light Socket
19	WP67002552 Whirlpool Refrigerator Light Bulb
20	Control Box Harness
21	WP1115374 Whirlpool Refrigerator Clip
22	CLIP, WIRING
23	Connecting Rod
24	Fastener, Push-On
25	Escutcheon, Control Box
27	Knob, Air Control
29	489203 Whirlpool Refrigerator Washer
30	WPW10190943 Whirlpool Refrigerator Icemaker
30	WP542638 Whirlpool Refrigerator Grease
30	72032 Whirlpool Touch Up Paint Black
30	350930 Whirlpool White Spray Paint
30	285006 Whirlpool Spray
30	WP2196003 Whirlpool Refrigerator Bar Riser
30	350942 Whirlpool Spray Paint
30	212643 Whirlpool Refrigerator Permagum Sealer
30	Golden Harvest (Uncut)
30	Golden Harvest
30	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
30	Almond (Uncut)
30	WP72107 Whirlpool Touchup
30	799344 Whirlpool Refrigerator Paint
30	72017 Whirlpool Appliance Touch-Up Paint White
30	511873 Whirlpool Refrigerator Paint
30	606755 Whirlpool Refrigerator Bag
30	833938 Whirlpool Refrigerator Terminal
30	WPL 876029
30	WPL 799833
30	Enamel, Black (1 Qt. Uncut)
30	CEMENT, ALUMILASTIC (1 1/4 OZ.)
30	TAPE, VINYL (3/4 X 108“)
30	Torx Key
30	WP505587 Whirlpool Refrigerator Sealer
30	WP503695 Whirlpool Refrigerator Sealer
30	876370 Whirlpool Refrigerator Insulation
30	350956 Whirlpool Spray Assembly
