3KART730GW01 05 – REFRIGERATOR DOOR

3KART730GW01 05 – REFRIGERATOR DOOR

Written by

in

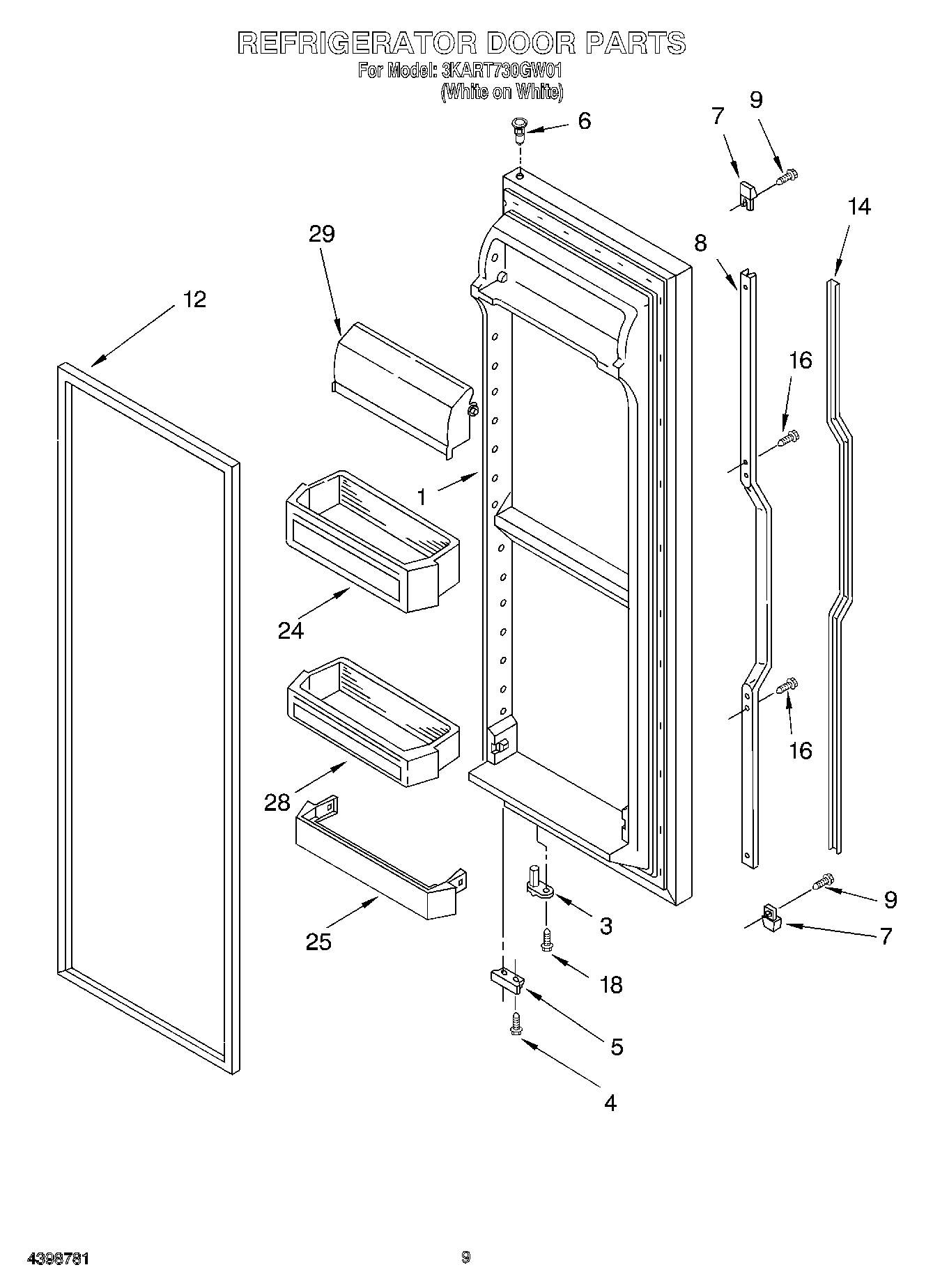

3KART730GW01 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
3WP2182179 Whirlpool Cam Closer
4WP489483 Whirlpool Screw
5Bracket, Door Stop (Chrome)
6WP2182181 Whirlpool Refrigerator Thimble
7End Cap, Handle
8Retainer, Insert
9WP3400852 Whirlpool Refrigerator Screw
122159073 Whirlpool Refrigerator Door Gasket
14Insert, Handle
16WP489463 Whirlpool Refrigerator Screw
18WP3400012 Whirlpool Refrigerator Screw
24Shelf Bin (2)
25WP2156022 Whirlpool Refrigerator Door Trim
28Shelf Bin
29WP2256101 Whirlpool Dairy Door
