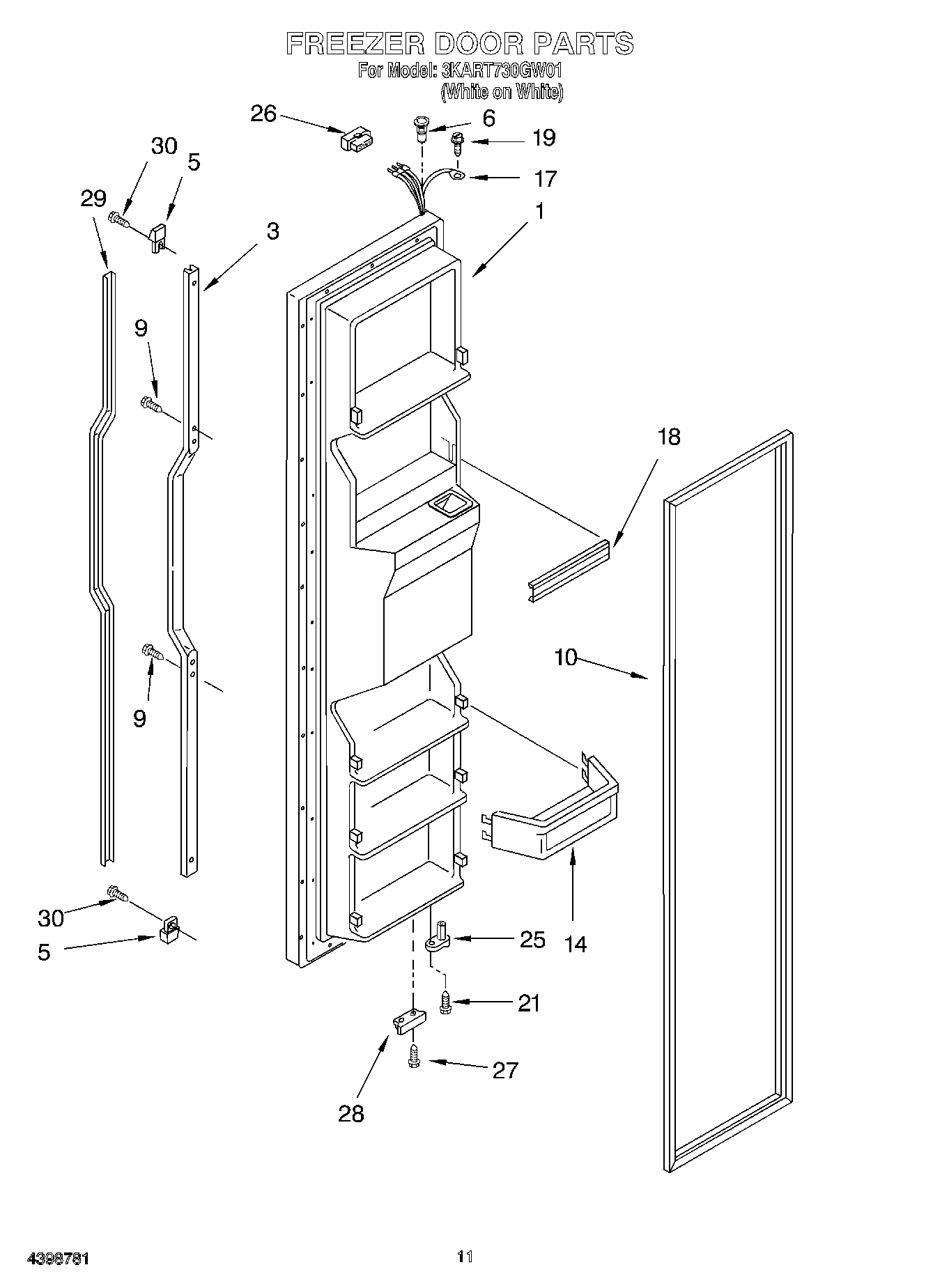

3KART730GW01 06 – FREEZER DOOR

3KART730GW01 06 – FREEZER DOOR

Written by

in

3KART730GW01 06 – FREEZER DOOR

Products

PositionProduct
1Freezer Door
3Retainer, Insert
5End Cap, Handle
6WP2182181 Whirlpool Refrigerator Thimble
9WP489463 Whirlpool Refrigerator Screw
102159072 Whirlpool Refrigerator FIP Gasket
14WP2156021 Whirlpool Refrigerator Door Trim
17Wire Harness
18WPW10307490 Whirlpool Door Trim Assembly
19WP489128 Whirlpool Refrigerator Screw
21WP3400012 Whirlpool Refrigerator Screw
25WP2182179 Whirlpool Cam Closer
26WP2154473 Whirlpool Refrigerator Connector
27WP489483 Whirlpool Screw
28Bracket, Door Stop (Chrome)
29Insert, Handle
30WP3400852 Whirlpool Refrigerator Screw
