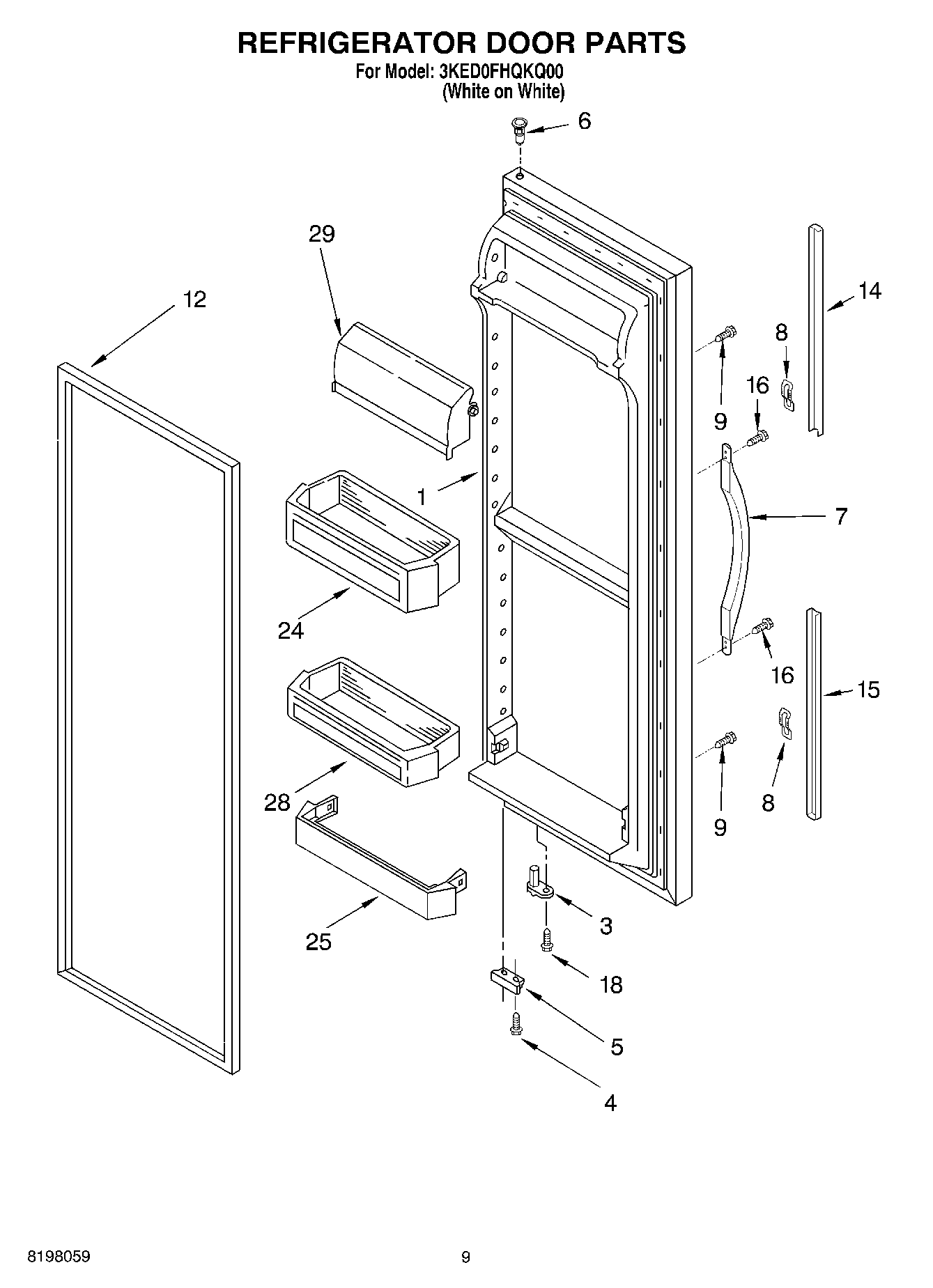

3KED0FHQKQ00 05 – REFRIGERATOR DOOR

3KED0FHQKQ00 05 – REFRIGERATOR DOOR

Written by

in

3KED0FHQKQ00 05 – REFRIGERATOR DOOR

Products

PositionProduct
1Refrigerator Door (Includes Item 6) (White)
3WP2182179 Whirlpool Cam Closer
4WP489483 Whirlpool Screw
5WP2206629B Whirlpool Refrigerator Bracket
6WP2182181 Whirlpool Refrigerator Thimble
7Handle, Center (White)
8WP2195327 Whirlpool Refrigerator Clip
9WP3400852 Whirlpool Refrigerator Screw
122159073 Whirlpool Refrigerator Door Gasket
14Extension, Top (White)
15Extension, Bottom (White)
16WP489491 Whirlpool Refrigerator Screw
18WP3400012 Whirlpool Refrigerator Screw
24WP2187172 Whirlpool Refrigerator Door Shelf Bin
25WP2156022 Whirlpool Refrigerator Door Trim
28WP2187197K Whirlpool Refrigerator Cantilever Bin
29WP2256101 Whirlpool Dairy Door
