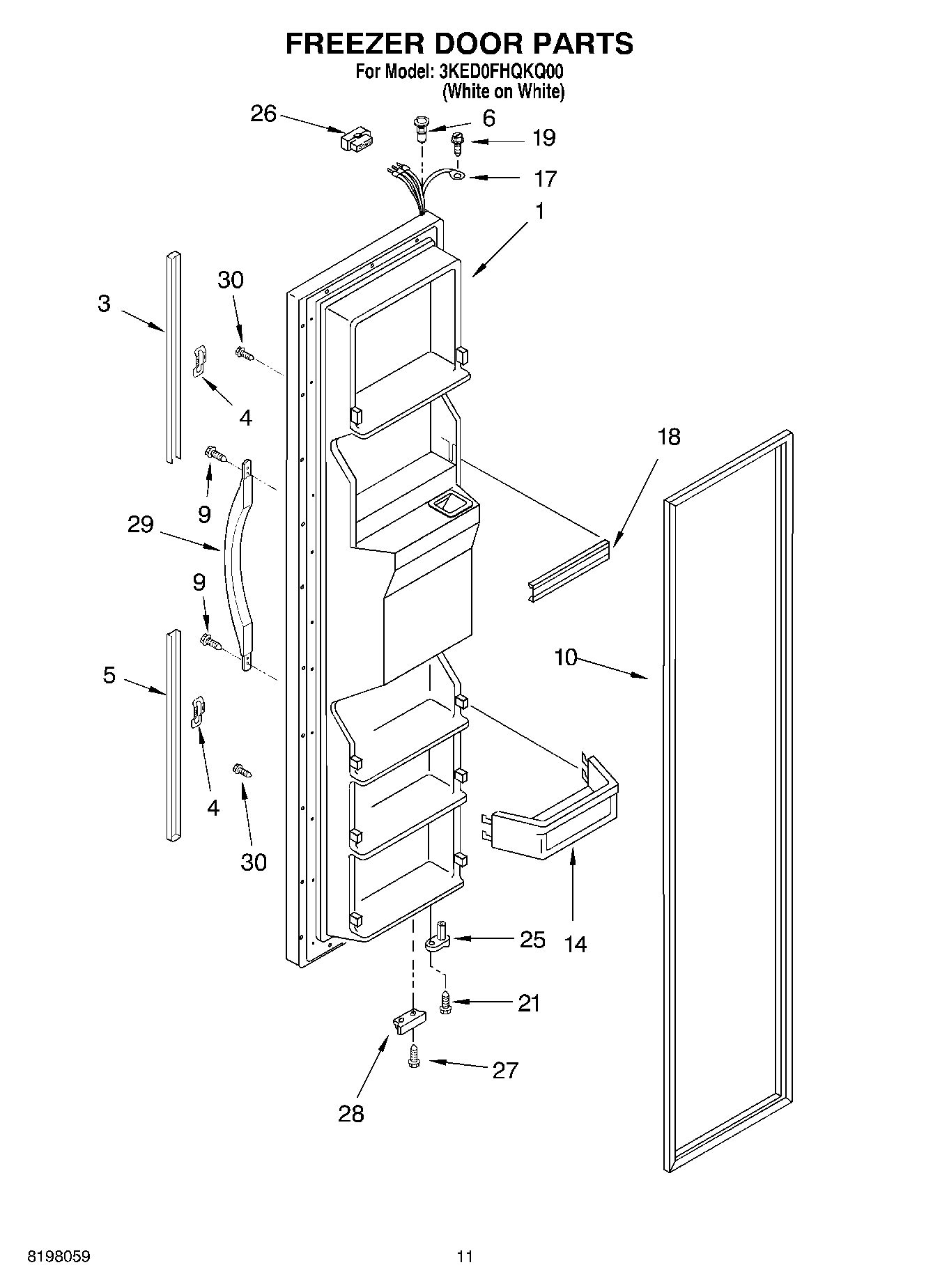

3KED0FHQKQ00 06 – FREEZER DOOR

Products

Position	Product
1	Freezer Door (White)
3	Extension, Top (White)
4	WP2195327 Whirlpool Refrigerator Clip
5	Extension, Bottom (White)
6	WP2182181 Whirlpool Refrigerator Thimble
9	WP489491 Whirlpool Refrigerator Screw
10	2159072 Whirlpool Refrigerator FIP Gasket
14	WP2156021 Whirlpool Refrigerator Door Trim
17	2311642 Whirlpool Refrigerator Wire Harness
18	WPW10307490 Whirlpool Door Trim Assembly
19	WP489128 Whirlpool Refrigerator Screw
21	WP3400012 Whirlpool Refrigerator Screw
25	WP2182179 Whirlpool Cam Closer
26	WP2154473 Whirlpool Refrigerator Connector
27	WP489483 Whirlpool Screw
28	WP2206629B Whirlpool Refrigerator Bracket
29	Handle, Center (White)
30	WP3400852 Whirlpool Refrigerator Screw
