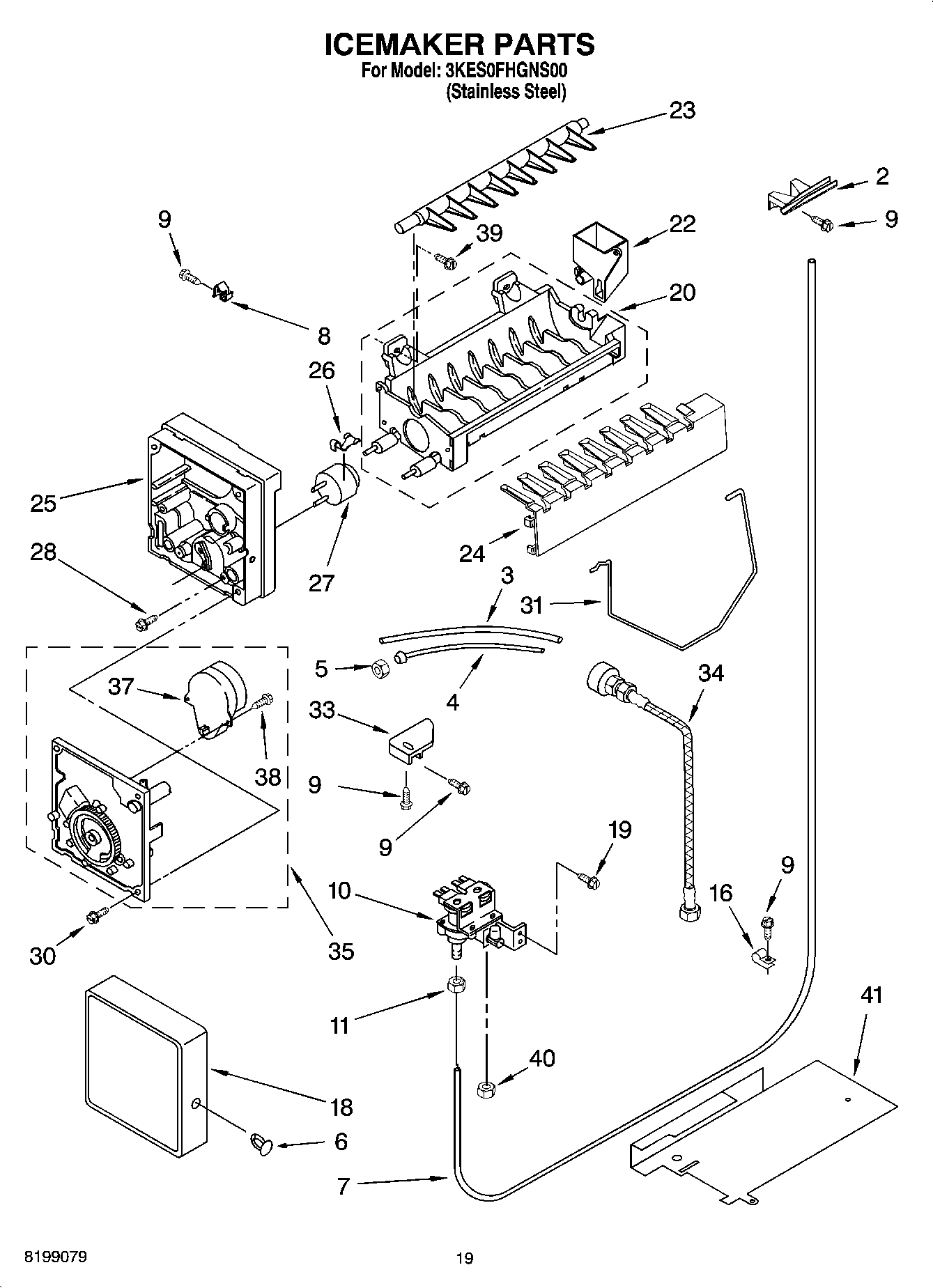

3KES0FHGNS00 11 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

3KES0FHGNS00 11 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Written by

in

3KES0FHGNS00 11 – ICEMAKER PARTS, PARTS NOT ILLUSTRATED

Products

PositionProduct
350930 Whirlpool White Spray Paint
72032 Whirlpool Touch Up Paint Black
285006 Whirlpool Spray
350942 Whirlpool Spray Paint
511873 Whirlpool Refrigerator Paint
606755 Whirlpool Refrigerator Bag
833938 Whirlpool Refrigerator Terminal
876370 Whirlpool Refrigerator Insulation
WP503695 Whirlpool Refrigerator Sealer
WP505587 Whirlpool Refrigerator Sealer
WP542638 Whirlpool Refrigerator Grease
Torx Key
CEMENT, ALUMILASTIC (1 1/4 OZ.)
Enamel, Black (1 Qt. Uncut)
WPL 799833
WPL 876029
212643 Whirlpool Refrigerator Permagum Sealer
WPL ARI12213A3
799344 Whirlpool Refrigerator Paint
WP72107 Whirlpool Touchup
Almond (Uncut)
WPL ARI12212A8
TAPE, VINYL (3/4 X 108“)
350956 Whirlpool Spray Assembly
WPL ARI12211A3
WPL ARI12210A2
WPL ARI12209A5
Ice Container Assembly
CLEANER, (STAINLESS STEEL)
72017 Whirlpool Appliance Touch-Up Paint White
2W11505385 Whirlpool Refrigerator Chute
38201597 Whirlpool Inlet Water Fill Tube Kit Filter
4W11496481 Whirlpool Refrigerator Water Tube
5Nut, Compression
6WP489115 Whirlpool Refrigerator Rivet
7W10823511 Whirlpool Refrigerator Water Tube
8WP628379 Whirlpool Refrigerator Clip
9WP489478 Whirlpool Refrigerator Screw
10Valve, Solenoid
11WP627018 Whirlpool Refrigerator Nut
16WP488366 Whirlpool Refrigerator Clamp
18WPW10289690 Whirlpool Ice Maker Cover
19WPW10141625 Whirlpool Refrigerator Screw Assembly
20WPW10122523 Whirlpool Refrigerator Ice Mold
22WP628356 Whirlpool Refrigerator Fill Cup
23WP627843 Whirlpool Refrigerator Ejector Arm
24WP2182124 Whirlpool Refrigerator Stripper Arm
25WP2195914 Whirlpool Refrigerator Ice Maker Housing
26WP2315522 Whirlpool Refrigerator Clip
27WP627985 Whirlpool Icemaker Cycling Thermostat
288533917 Whirlpool Refrigerator Screw
30WP681249 Whirlpool Screw Assembly
31W11342242 Whirlpool Refrigerator Ice Level Arm
33W11500948 Whirlpool Refrigerator Bracket
34European Water Connection Tube
35W10190933 Whirlpool Refrigerator Motor Assembly
38489136 Whirlpool Refrigerator Screw
39WP488163 Whirlpool Refrigerator Screw
40Nut, Compression
412256178 Whirlpool Shield Assembly
