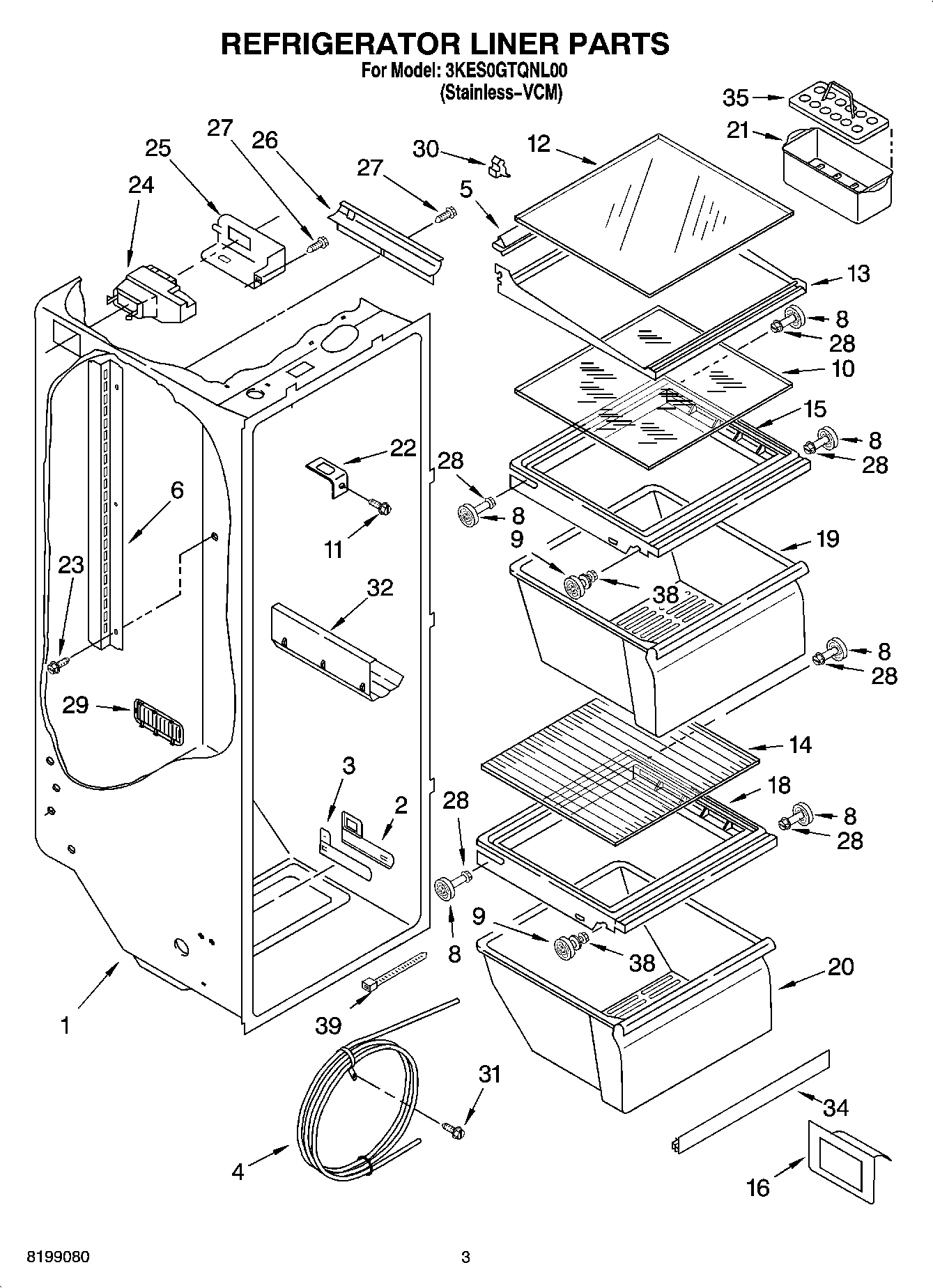

3KES0GTQNL00 02 – REFRIGERATOR LINER PARTS

Products

Position	Product
1	Liner (Not A Serviceable Part)
2	2194744 Whirlpool Refrigerator Escutcheon
3	2182757 Whirlpool Refrigerator Slide
4	WP2256126 Whirlpool Refrigerator Reservoir
5	Retainer
6	Shelf Ladder
8	WP2196483 Whirlpool Refrigerator Shelf Stud
9	W11223328 Whirlpool Refrigerator Shelf Stud
10	W10864399 Whirlpool Glass Shelf
11	WP488488 Whirlpool Refrigerator Screw
12	Glass, Shelf
13	Shelf, Cantilever
15	W10508993 Whirlpool Refrigerator Cover Pan
16	2179350 Whirlpool Refrigerator Deflector
18	Cover, Meat Pan
19	WP2188661 Whirlpool Crisper Pan
20	WP2188664 Whirlpool Dishwasher Meat Crisper Pan
21	W10136387A Whirlpool Refrigerator Egg Container
22	WP2256085 Whirlpool Refrigerator Retainer
23	WP489478 Whirlpool Refrigerator Screw
24	WPW10129864 Whirlpool Refrigerator Diffuser
25	WP2212240 Whirlpool Refrigerator Cover
26	Cover, Conduit
27	W10759522 Whirlpool Screw
28	WP3400806 Whirlpool Screw
29	Louver
30	2215823 Whirlpool Refrigerator Clip
31	Screw (2)
32	W10777924 Whirlpool Refrigerator Wine Rack
34	Extension
35	WP2177817 Whirlpool Refrigerator Egg Container
38	WP3-24004-109 Whirlpool Refrigerator Screw
39	WPW10339879 Whirlpool Wire Tie
