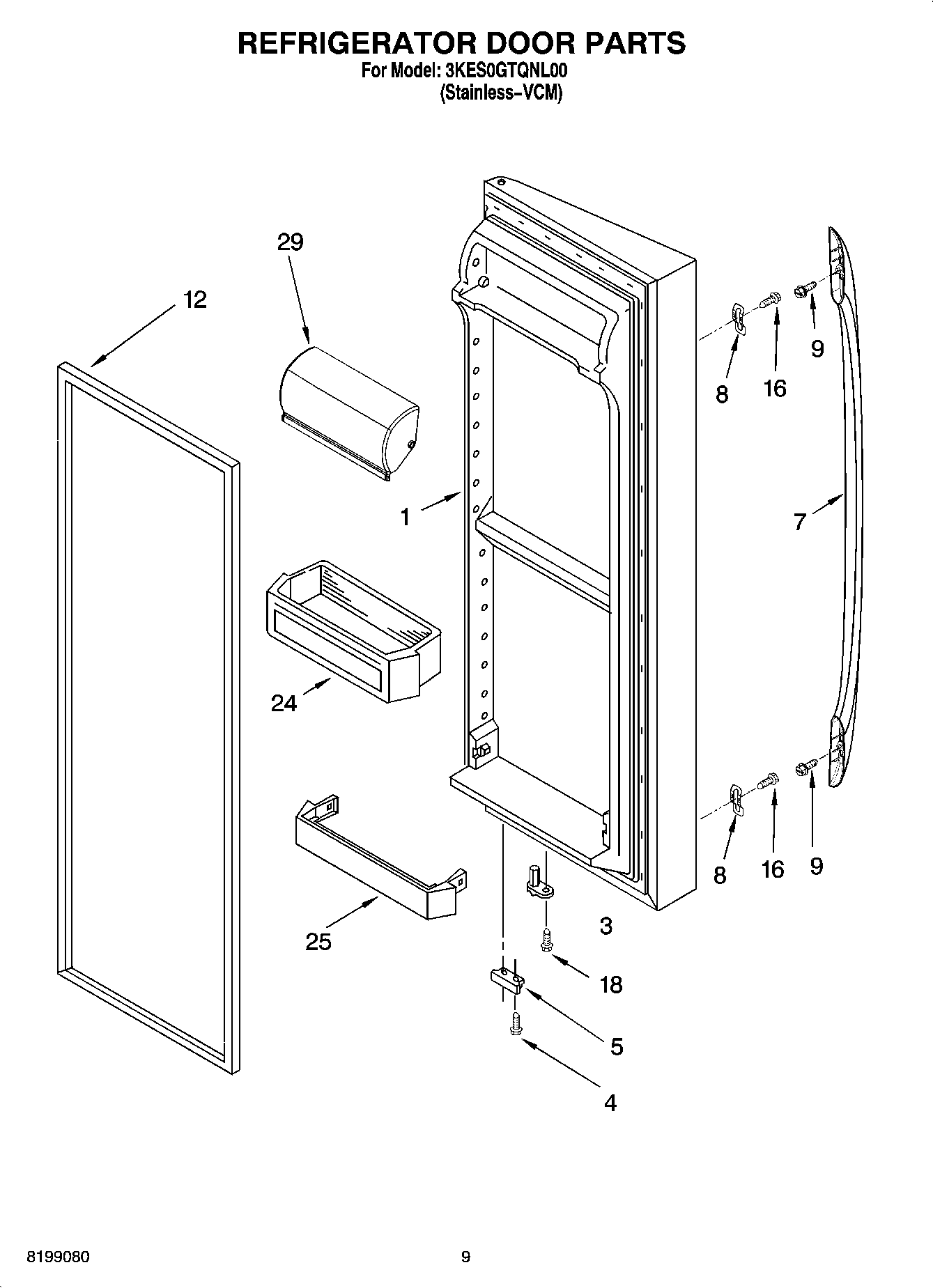

3KES0GTQNL00 05 – REFRIGERATOR DOOR PARTS

3KES0GTQNL00 05 – REFRIGERATOR DOOR PARTS

Written by

in

3KES0GTQNL00 05 – REFRIGERATOR DOOR PARTS

Products

PositionProduct
1Refrigerator Door
3WP2182179 Whirlpool Cam Closer
4WP489483 Whirlpool Screw
5Bracket, Door Stop
7Handle
8WP2255411 Whirlpool Refrigerator Clip
9SCREW
122159081 Whirlpool Refrigerator Door Gasket
16WP489491 Whirlpool Refrigerator Screw
18WP3400012 Whirlpool Refrigerator Screw
24WP2187172 Whirlpool Refrigerator Door Shelf Bin
25WP2177962K Whirlpool Refrigerator Door Trim
29WP2256101 Whirlpool Dairy Door
