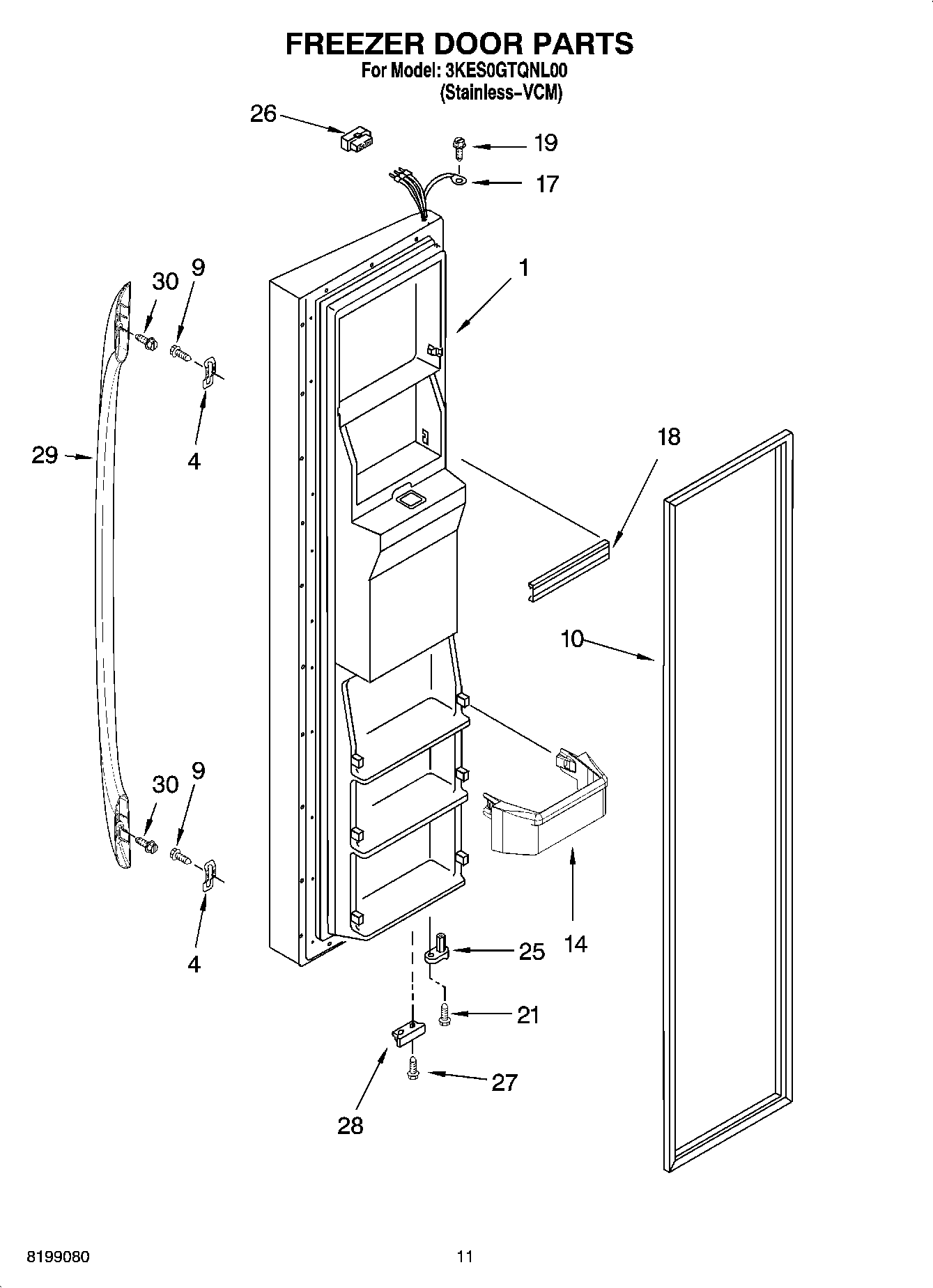

3KES0GTQNL00 06 – FREEZER DOOR PARTS

3KES0GTQNL00 06 – FREEZER DOOR PARTS

Written by

in

3KES0GTQNL00 06 – FREEZER DOOR PARTS

Products

PositionProduct
1Freezer Door (Stainless-VCM)
4WP2255411 Whirlpool Refrigerator Clip
9WP489491 Whirlpool Refrigerator Screw
102159080 Whirlpool Refrigerator Door Gasket
14Trivet (5)
172311642 Whirlpool Refrigerator Wire Harness
18WPW10307490 Whirlpool Door Trim Assembly
19WP489128 Whirlpool Refrigerator Screw
21WP3400012 Whirlpool Refrigerator Screw
25WP2182179 Whirlpool Cam Closer
26Connector
27WP489483 Whirlpool Screw
28Bracket, Door Stop
29Handle
30SCREW
