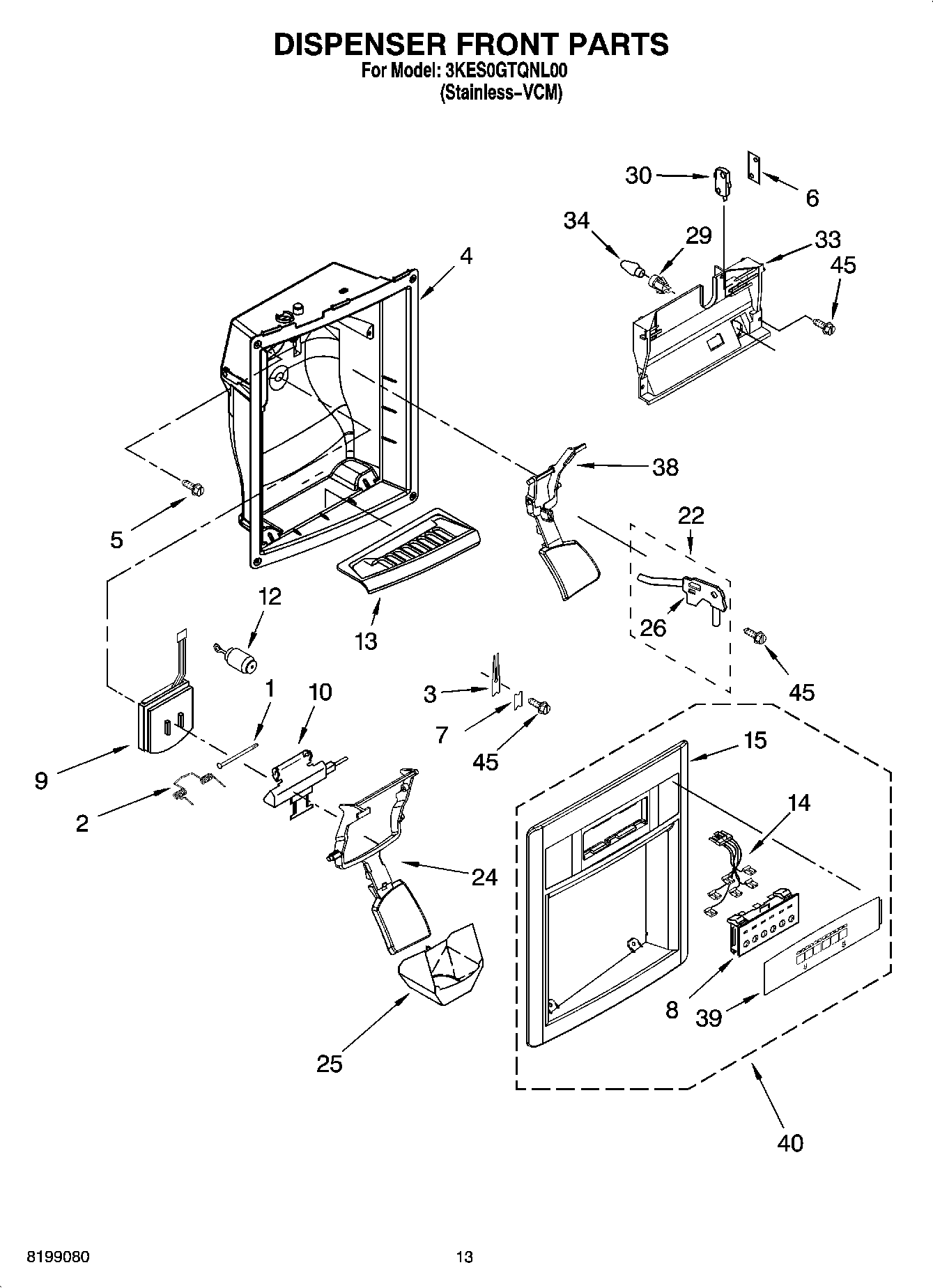

3KES0GTQNL00 07 – DISPENSER FRONT PARTS

Products

Position	Product
1	WP2196195 Whirlpool Refrigerator Door Pin
2	WPW10224328 Whirlpool Refrigerator Spring
3	WP2194719 Whirlpool Refrigerator Clip
4	Housing, Dispenser (Not Serviced)
5	WP3196557 Whirlpool Screw
6	Spacer, Switch (2)
7	WP2195051 Whirlpool Refrigerator Clip
8	Switch Assembly (Not Available, Order 40)
9	WP2180353 Whirlpool Dispenser Door
10	Door Mechanism Assembly
12	Delay Mechanism
13	Grille, Overflow (Black)
14	2311650 Whirlpool Refrigerator Wire Harness
15	Front Cover, Housing (Not Availabe, Order 40)
22	8201537 Whirlpool Water Tubing Assembly
24	WP2255431B Whirlpool Refrigerator Dispenser Arm
25	WP2180224 Whirlpool Dispenser Funnel Guide
26	WP2304673 Whirlpool Refrigerator Bracket
29	2180200 Whirlpool Refrigerator Socket
30	WP2162361 Whirlpool Switch
33	WP2180226 Whirlpool Ice Dispenser Control Switch Bracket
34	Bulb, Light
38	WP2255432B Whirlpool Refrigerator Dispenser Arm
39	Overlay, Front Cover (Not Available, Order 40)
40	Front Cover Assembly (Includes Items 8, 14 & 39) (Black)
45	WP3400906 Whirlpool Refrigerator Screw
