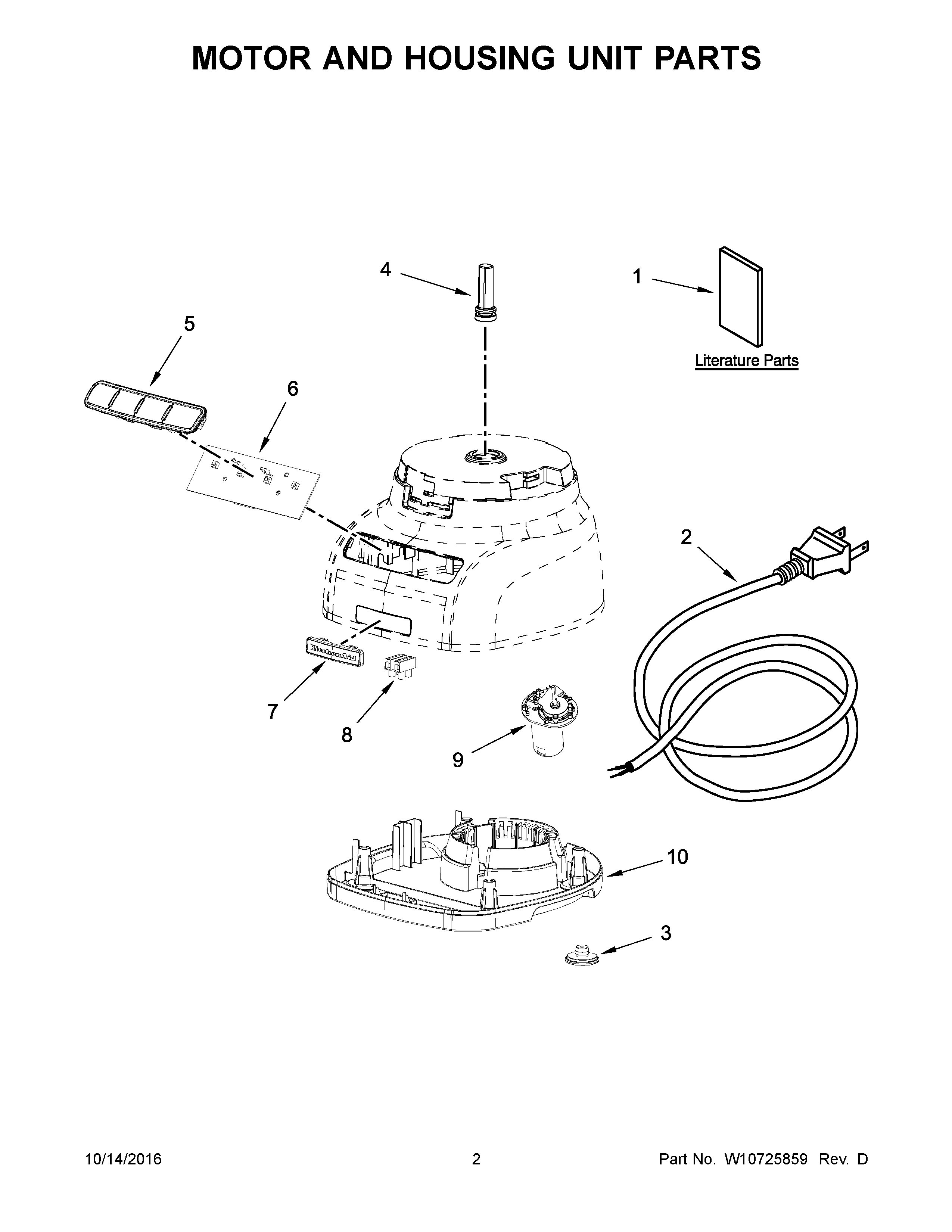

3KFP0933TER0 02 – MOTOR AND HOUSING UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE (AUSTRALIA)
1A	USE & CARE GUIDE (BRAZIL)
1B	USE & CARE GUIDE (TAIWAN)
2B	W11023764 Whirlpool Power Cord
2A	POWER CORD (120V/127V (BRAZIL))
2	POWER CORD (220V (AUSTRALIA/BRAZIL))
3	W10451320 Whirlpool Foot Assembly
4	W10648624 Whirlpool Shaft Sleeve
5	W10466886 Whirlpool Overlay
5A	PANEL, CONTROL (TAIWAN)
6A	PCBA ASSEMBLY (127V (BRAZIL/TAIWAN))
6	PCBA ASSEMBLY (220V (AUSTRALIA/BRAZIL))
7	NAMEPLATE
8	BLOCK, TERMINAL
9	MOTOR (INCLUDES GEARBOX) (220V (AUSTRALIA/BRAZIL))
9A	WPW10467162 Whirlpool Motor
10	BASE, HOUSING (AUSTRALIA)
10A	BASE, HOUSING (220V (BRAZIL))
10B	BASE, HOUSING (127V (BRAZIL))
10C	BASE, HOUSING (TAIWAN)
