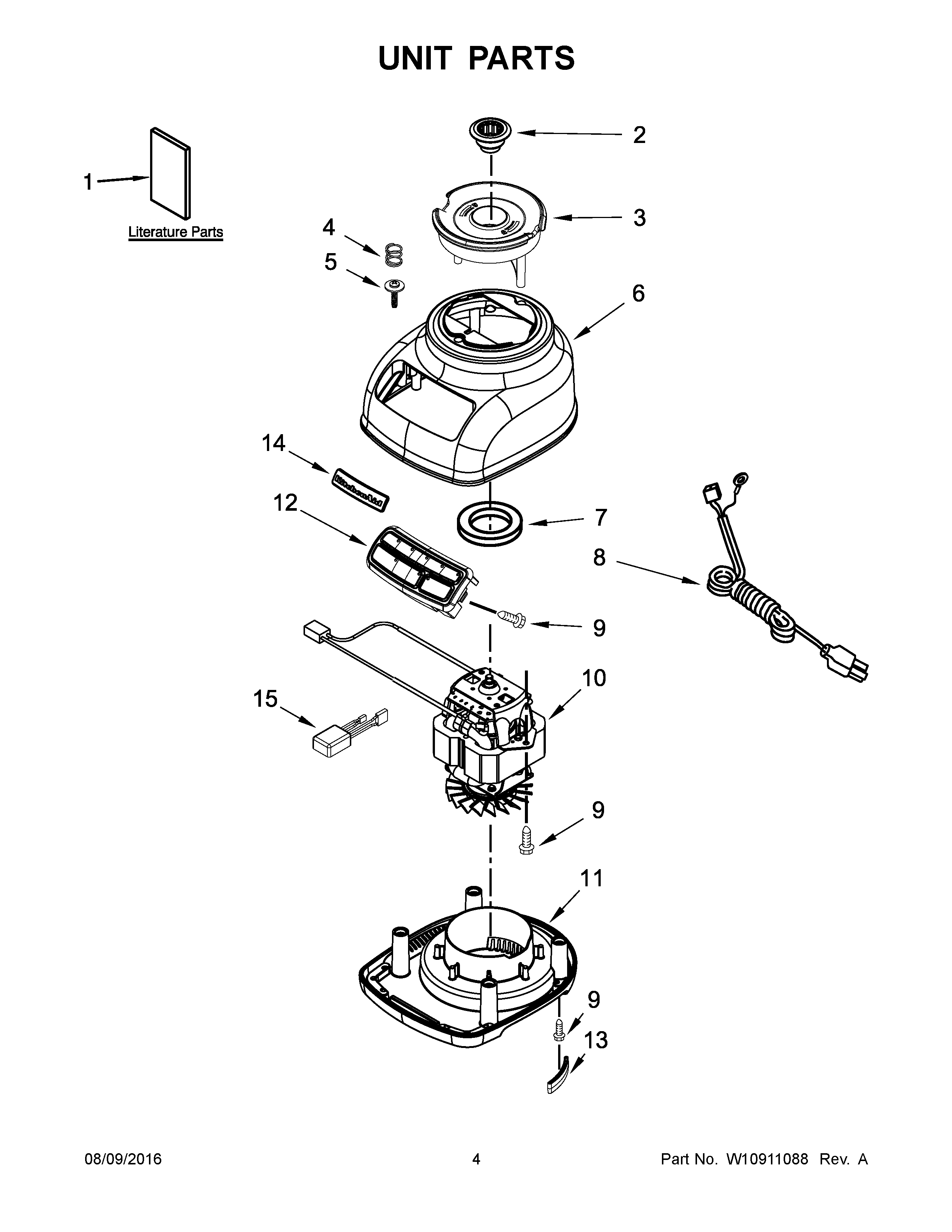

3KSB1575TER0 03 – UNIT PARTS

Products

Position	Product
1	USE & CARE GUIDE
2	WPW10279256 Whirlpool Blender Drive Coupler
3	WPW10497275 Whirlpool Jar Lock Assembly
4	SPRING
5	W10859468 Whirlpool Screw
6B	W10646512 Whirlpool Housing
6A	HOUSING, UPPER (GREEN APPLE)
6	HOUSING, UPPER (EMPIRE RED)
6C	HOUSING, UPPER (TANGERINE)
7	WP9709366 Whirlpool Seal
8	POWER CORD (BLACK (TAIWAN))
9	W11164114 Whirlpool Screw
10	WPW10225872 Whirlpool Motor
11	W10497274 Whirlpool Base
12	CONTROL ASSEMBLY (INCLUDES OVERLAY)
13	W11087504 Whirlpool Foot
14	W10514169 Whirlpool Nameplate
15	FILTER, EMI
