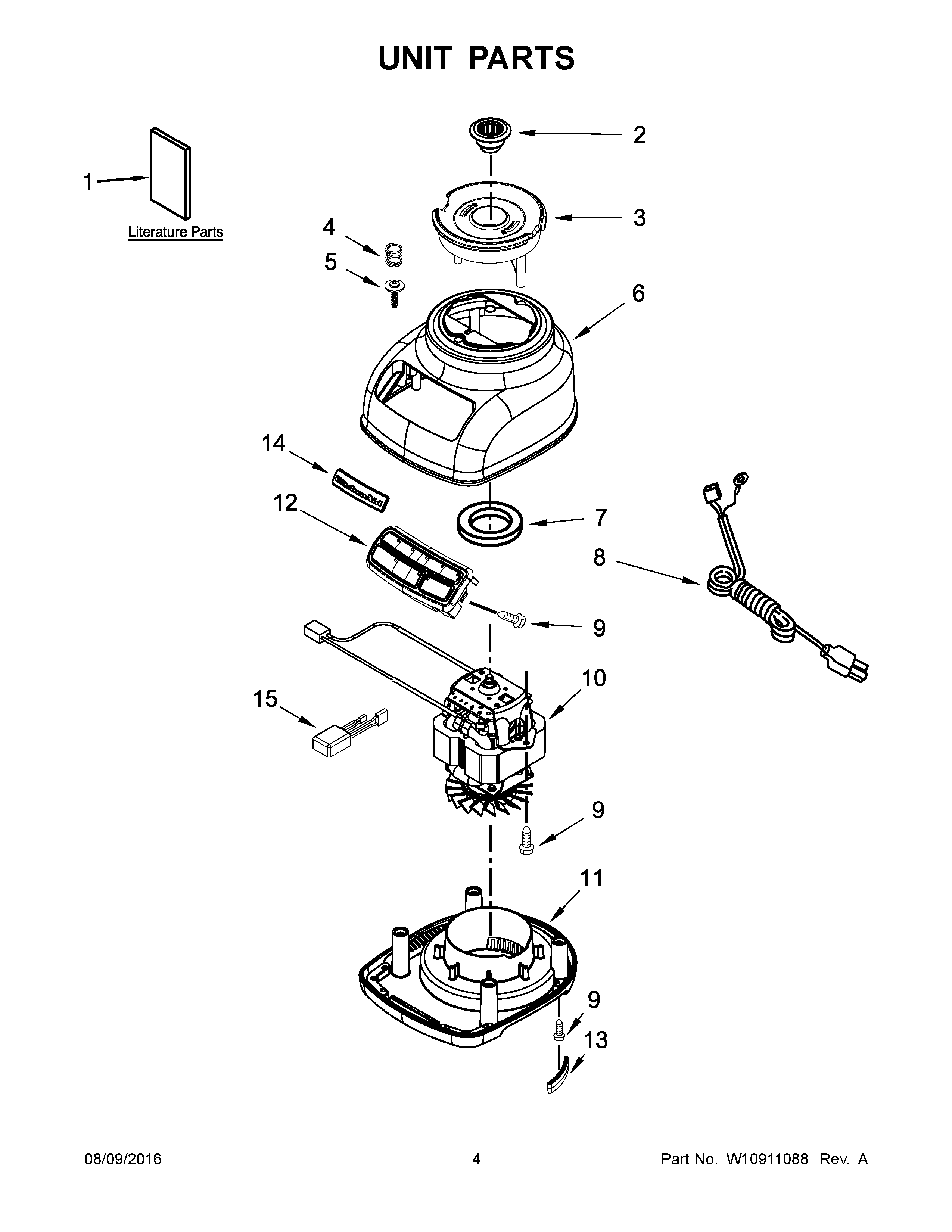

3KSB1575TOB0 03 – UNIT PARTS

3KSB1575TOB0 03 – UNIT PARTS

Written by

in

3KSB1575TOB0 03 – UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2WPW10279256 Whirlpool Blender Drive Coupler
3WPW10497275 Whirlpool Jar Lock Assembly
4SPRING
5W10859468 Whirlpool Screw
6BW10646512 Whirlpool Housing
6AHOUSING, UPPER (GREEN APPLE)
6HOUSING, UPPER (EMPIRE RED)
6CHOUSING, UPPER (TANGERINE)
7WP9709366 Whirlpool Seal
8POWER CORD (BLACK (TAIWAN))
9W11164114 Whirlpool Screw
10WPW10225872 Whirlpool Motor
11W10497274 Whirlpool Base
12CONTROL ASSEMBLY (INCLUDES OVERLAY)
13W11087504 Whirlpool Foot
14W10514169 Whirlpool Nameplate
15FILTER, EMI
