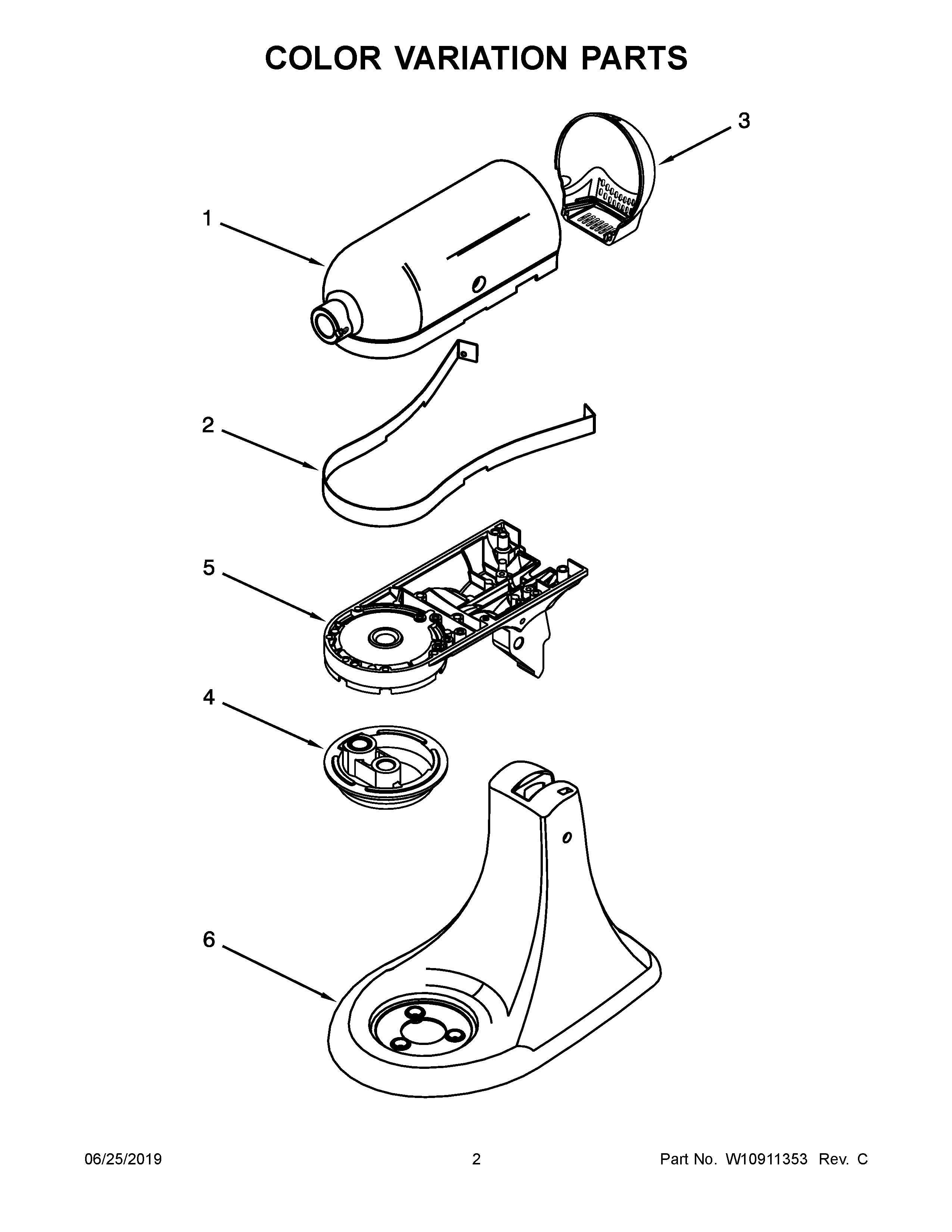

3KSM150PSTCB0 02 – COLOR VARIATION PARTS

3KSM150PSTCB0 02 – COLOR VARIATION PARTS

Written by

in

3KSM150PSTCB0 02 – COLOR VARIATION PARTS

Products

PositionProduct
1CMOTOR HOUSING (CRYSTAL BLUE)
1EMOTOR HOUSING (EMPIRE RED)
1IMOTOR HOUSING (MAJESTIC YELLOW)
1MMOTOR HOUSING (TANGERINE)
1L9706473 Whirlpool Housing
1DW10350463 Whirlpool Housing
1JMOTOR HOUSING (MATTE DRIED ROSE)
1HMOTOR HOUSING (MATTE LAVENDER CREAM)
1A9709600 Whirlpool Housing
1G9707662 Whirlpool Housing
1BMOTOR HOUSING (CRANBERRY/FLAMINGO)
1FMOTOR HOUSING (GREEN APPLE)
1PMOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1QMOTOR HOUSING (BLACK MATTE)
1NW10564356 Whirlpool Housing
1OMotor Housing (White)
1RMOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
1MOTOR HOUSING (AQUA SKY)
1SMOTOR HOUSING (PASSION/SIGNATURE RED)
1KMotor Housing (Onyx Black)
2W11171098 Whirlpool Trim Band
3A9709595 Whirlpool Cover
3M9706854 Whirlpool Cover
3HW10678729 Whirlpool Cover Assembly
3G9707667 Whirlpool Cover
3NW10564338 Whirlpool Cover
3DW10350456 Whirlpool Cover Assembly
3F9709683 Whirlpool Cover
3PE
3CEND COVER (CRYSTAL BLUE)
3SWPL W11298415
3QWPL W10885707
3RWPL W11113835
3B9706801 Whirlpool Cover
3W10193496 Whirlpool Cover
3EEND COVER (EMPIRE RED)
3KEND COVER (ONYX BLACK)
3JEND COVER (MATTE DRIED ROSE)
3OEND COVER-White
3L9706469 Whirlpool Cover
3IEND COVER (MAJESTIC YELLOW)
4F9709685 Whirlpool Planetary Assembly
4G9707665 Whirlpool Planetary Mixer
4KPLANETARY-Onyx Black
4CW10476794 Whirlpool Planetary Mixer
4OPLANETARY-White
4HWPL W10678731
4JWPL W11209496
4LWPL 9706475
4NWPL W10564344
4PWPL W11209470
4QW11170306 Whirlpool Planetary Assembly
4RW11113886 Whirlpool Planetary Mixer
4SWPL W11298422
4W10193498 Whirlpool Planetary Assembly
4BWPL 9706799
4EPLANETARY (EMPIRE RED)
4AWPL 9709597
4IPLANETARY (MAJESTIC YELLOW)
4MWPL 9706852
4DW10350465 Whirlpool Planetary Mixer
5PW11209465 Whirlpool Gearcase
5EWPL 24035091
5RWPL W11113859
5SWPL W11298417
5F9709691 Whirlpool Gearcase
5GWPL 9708868
5HWPL W10678734
5JWPL W11209493
5IWPL 24035093
5NWPL W10564350
5QWPL W10885699
5M9707936 Whirlpool Gearcase
5LWPL 9707364
5CW10476775 Whirlpool Gearcase
5B9706792 Whirlpool Gearcase
5AWPL 9709603
5OLOWER GEARCASE-White
5KLOWER GEARCASE (ONYX BLACK)
5DLOWER GEARCASE (CONTOUR SILVER)
5W10193504 Whirlpool Gearcase
6LWPL 9707361
6JWPL W11209491
6IWPL 3184281
6HWPL W11176417
6G9708865 Whirlpool Pedestal
6M9707933 Whirlpool Pedestal Assembly
6FW10128411 Whirlpool Pedestal
6EWPL 3184280
6CWPL W10476774
6BWPL W10310011
6AW10119207 Whirlpool Pedestal
6QWPL W11185575
6NW10637217 Whirlpool Pedestal
6DPEDESTAL (CONTOUR SILVER)
6RWPL W11259895
6KPEDESTAL & FOOT (ONYX BLACK)
6PEDESTAL & FOOT (AQUA SKY)
6OWP3184273 Whirlpool Pedestal
6SWPL W11298425
6PWPL W11209463
