  • 3KSM150PSTER0 04 – MOTOR AND CONTROL UNIT PARTS

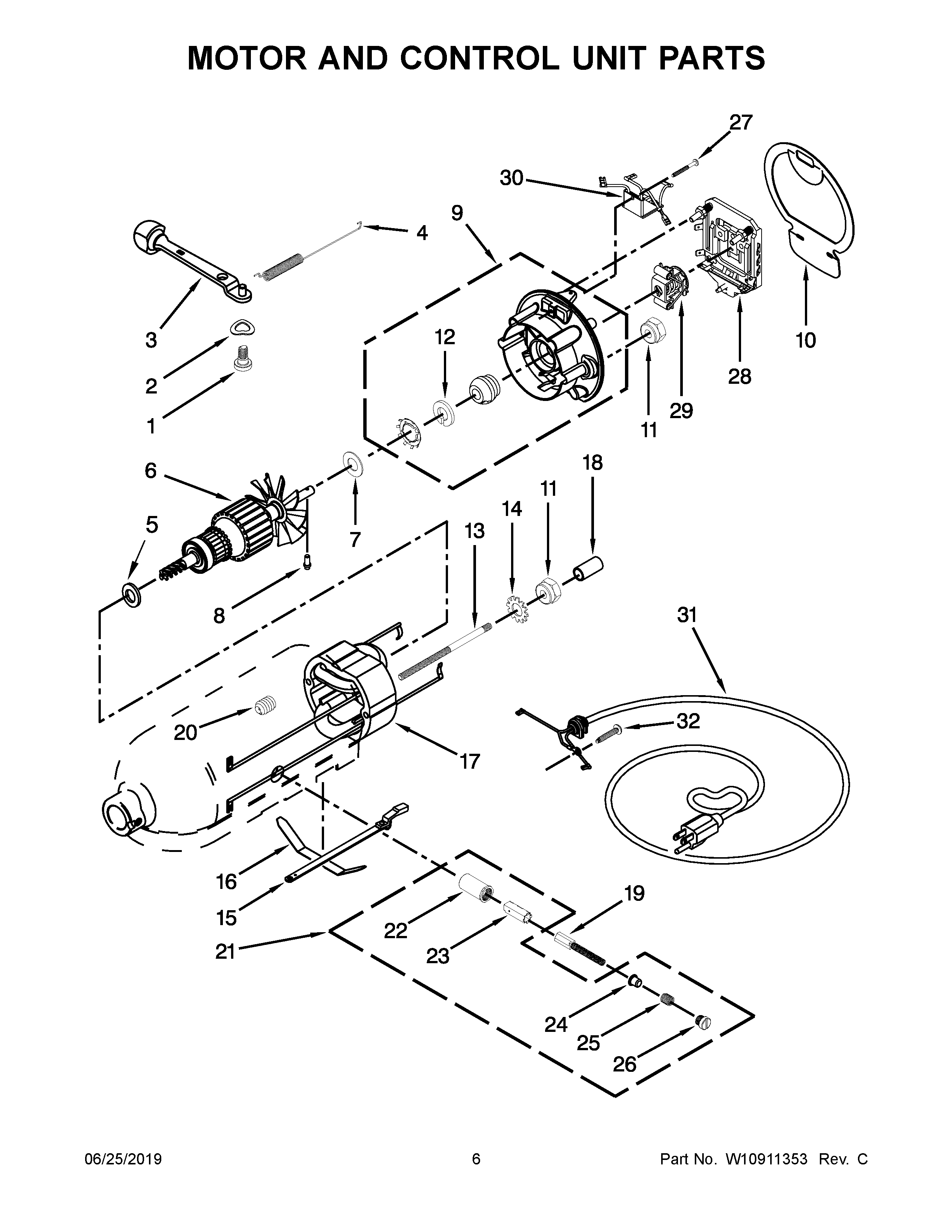

3KSM150PSTER0 04 – MOTOR AND CONTROL UNIT PARTS

3KSM150PSTER0 04 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5WP9704324 Whirlpool Washer
6W11133634 Whirlpool Armature
7W11233557 Whirlpool Washer
8WP16998 Whirlpool Drive Stud
9WP3180526 Whirlpool Bearing Bracket
10WP240775-1 Whirlpool Endcap Seal
11WPW10131078 Whirlpool Nut Assembly
12WASHER
13W10851015 Whirlpool Stat Screw
14W11170663 Whirlpool Washer
15W11557271 Whirlpool Link Speed
16WP240205 Whirlpool Spring
17FIELD ASSEMBLY (100-125 VOLT)
18W11210996 Whirlpool Sleeve
19WPW10380496 Whirlpool Stand Mixer Motor Brush
20W11176201 Whirlpool Screw
214162546 Whirlpool Brush Holder
22WP3179908 Whirlpool Brush Holder
23W11656718 Whirlpool Insert
24WP116286 Whirlpool Spring Cap
25WP116287 Whirlpool Spring Cap
26WP3184212 Whirlpool Stand Mixer Brush Holder Cap,Black
27W11084238 Whirlpool Screw Assembly
28WPW10119326 Whirlpool Speed Control
29WPW10330804 Whirlpool Speed Governor
30PHASE CONTROL, 120 VOLT
31POWER CORD (BLACK (TAIWAN))
32SCREW
