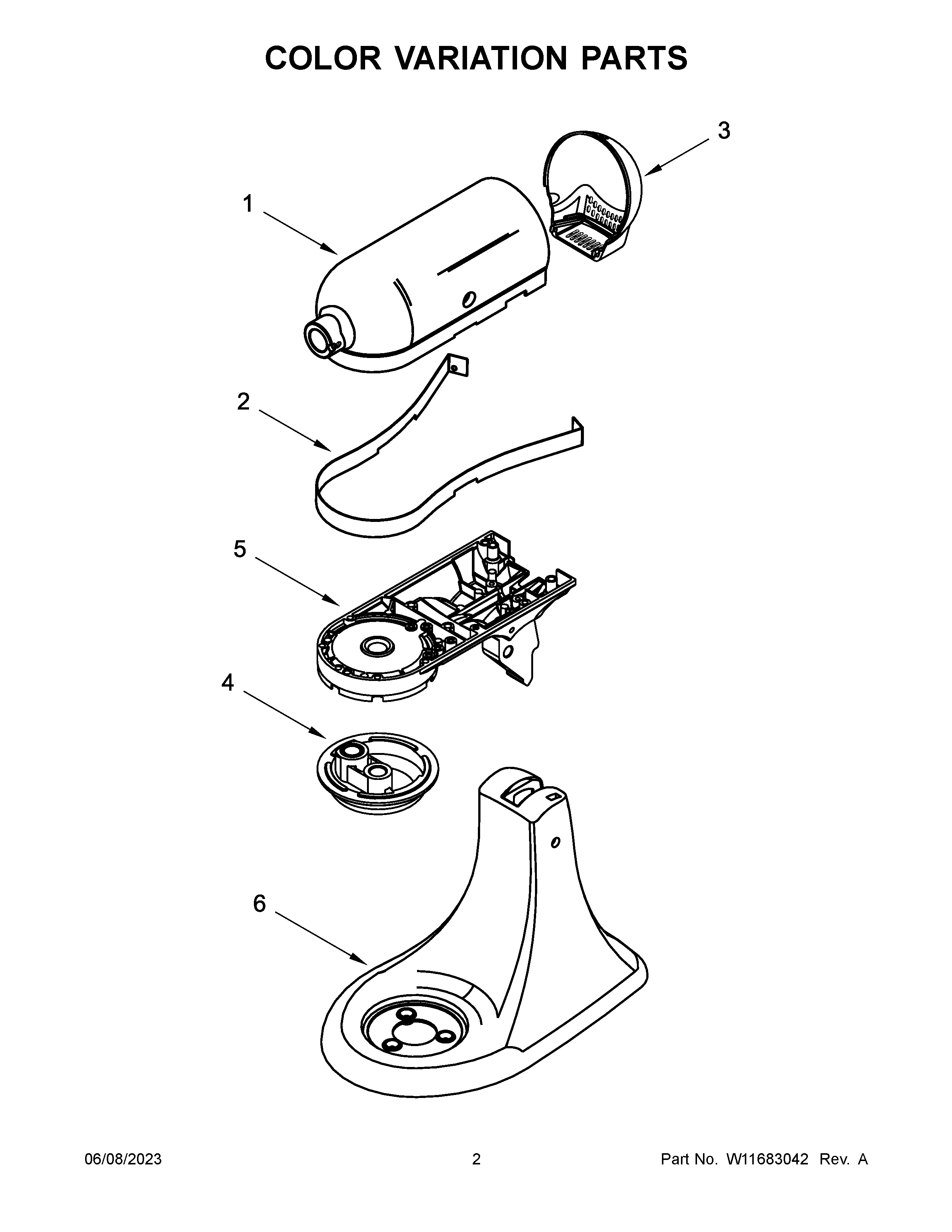

3KSM150PSTIC5 02 – COLOR VARIATION PARTS

Products

Position	Product
1A	MOTOR HOUSING (BLACK MATTE)
1G	MOTOR HOUSING (MILKSHAKE/MATTE MILKSHAKE)
1F	MOTOR HOUSING (MATTE DRIED ROSE)
1E	MOTOR HOUSING (LAVENDER CREAM)
1D	MOTOR HOUSING (ICE)
1C	MOTOR HOUSING (EMPIRE RED)
1B	MOTOR HOUSING (BLUE VELVET/MATTE VINTAGE BLUE)
1H	MOTOR HOUSING (PASSION/SIGNATURE RED)
1	MOTOR HOUSING (AQUA SKY)
2	W11171098 Whirlpool Trim Band
3B	E
3E	W10678729 Whirlpool Cover Assembly
3D	9707667 Whirlpool Cover
3H	WPL W11298415
3G	WPL W11113835
3A	WPL W10885707
3F	END COVER (MATTE DRIED ROSE)
3C	END COVER (EMPIRE RED)
3	W10193496 Whirlpool Cover
4G	W11113886 Whirlpool Planetary Mixer
4H	WPL W11298422
4C	PLANETARY (EMPIRE RED)
4A	W11170306 Whirlpool Planetary Assembly
4B	WPL W11209470
4	W10193498 Whirlpool Planetary Assembly
4F	WPL W11209496
4E	WPL W10678731
4D	9707665 Whirlpool Planetary Mixer
5	W10193504 Whirlpool Gearcase
5H	WPL W11298417
5G	WPL W11113859
5A	WPL W10885699
5C	WPL 24035091
5D	WPL 9708868
5E	WPL W10678734
5F	WPL W11209493
5B	W11209465 Whirlpool Gearcase
6F	WPL W11209491
6H	WPL W11298425
6G	WPL W11259895
6	PEDESTAL & FOOT (AQUA SKY)
6C	WPL 3184280
6D	9708865 Whirlpool Pedestal
6A	WPL W11185575
6B	WPL W11209463
6E	WPL W11176417
