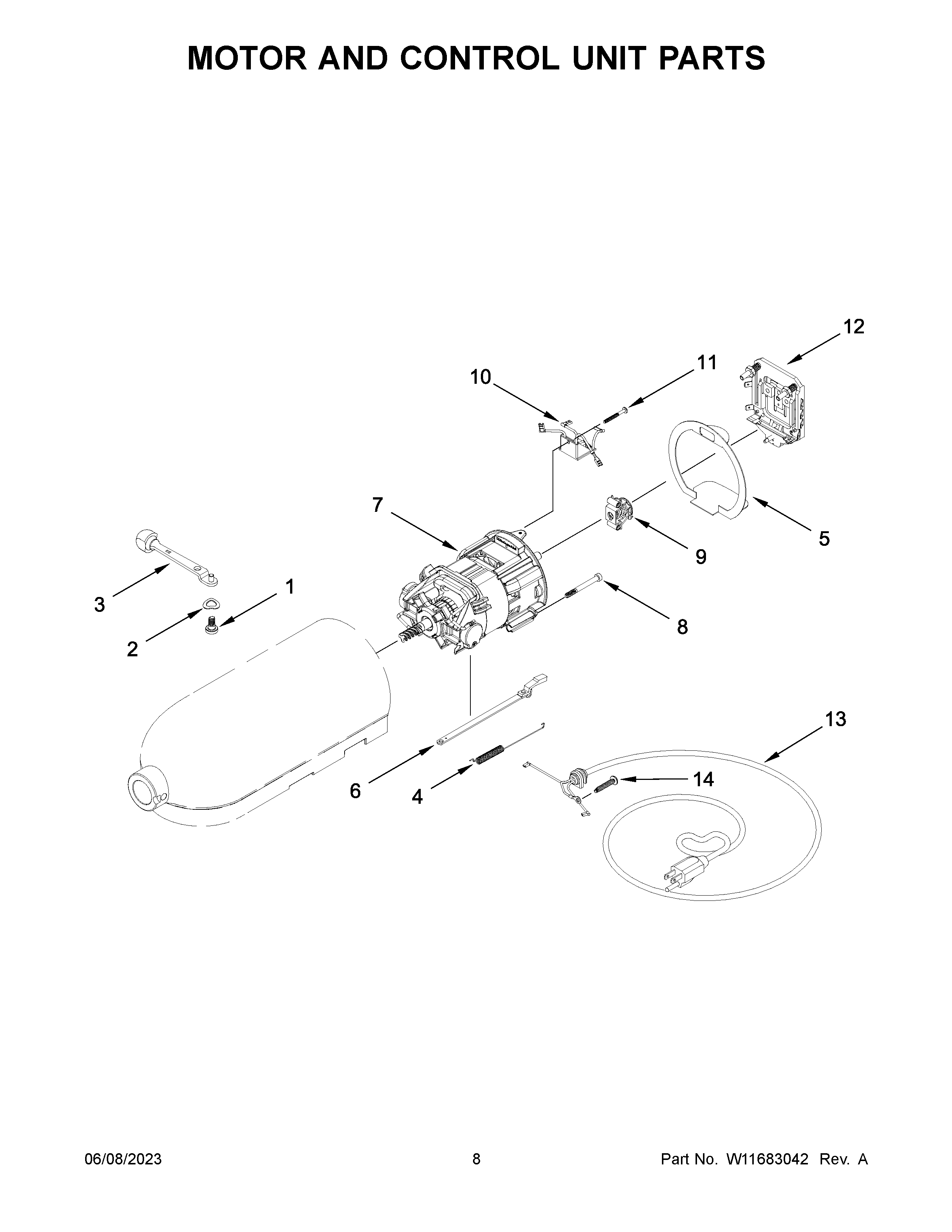

3KSM150PSTPA5 05 – MOTOR AND CONTROL UNIT PARTS

3KSM150PSTPA5 05 – MOTOR AND CONTROL UNIT PARTS

Written by

in

3KSM150PSTPA5 05 – MOTOR AND CONTROL UNIT PARTS

Products

PositionProduct
1WP110679 Whirlpool Screw
2WP116241 Whirlpool Washer
3WP9709276 Whirlpool Speed Control Lever
4WP3183680 Whirlpool Spring
5SEAL, END
6W11557271 Whirlpool Link Speed
7MOTOR ASSEMBLY
8SCREW, MOTOR MOUNTING
9WPW10330804 Whirlpool Speed Governor
10PHASE CONTROL, 120 VOLT
11W11084238 Whirlpool Screw Assembly
12WPW10119326 Whirlpool Speed Control
13POWER CORD (BLACK (TAIWAN))
14W10914506 Whirlpool Screw
