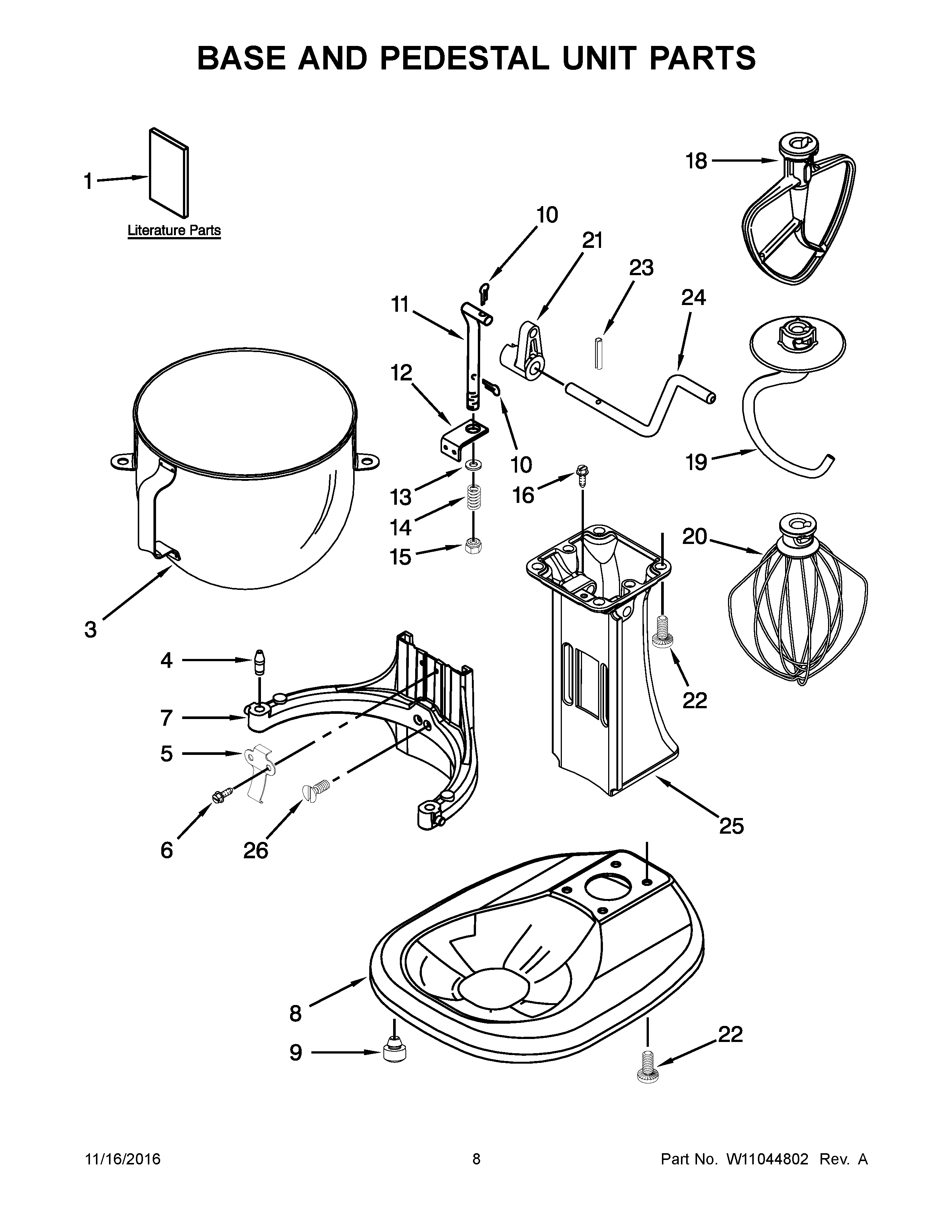

3KSM5CBTWH0 05 – BASE AND PEDESTAL UNIT PARTS
Written by
in
3KSM5CBTWH0 05 – BASE AND PEDESTAL UNIT PARTS
Products
Position
Product
1
USE & CARE GUIDE
3
W10802050 Whirlpool Mixer Bowl
4
WP240185 Whirlpool Bowl Retaining Pin
5
WP3182857 Whirlpool Spring
6
WP4159193 Whirlpool Screw
9
WP9708649 Whirlpool Foot
10
WP9704608 Whirlpool Cotter Pin
11
W10598834 Whirlpool Lift Rod
12
240169 Whirlpool Bracket
13
WASHER
14
4159622 Whirlpool PP Spring
15
8533907 Whirlpool Dishwasher Nut
16
3182904 Whirlpool Screw
18
W10807813 Whirlpool Mixer Beater
19
WPW10674621 Whirlpool Dough Hook Assembly
20
WPW10731415 Whirlpool Stand Mixer Wire Whip
21
WP241764 Whirlpool Mixer Lift Arm Bowl
22
WP4162403 Whirlpool Screw
23
WP9703442 Whirlpool Roll Pin
24
W10598843 Whirlpool Handle Assembly
25
CABINET (NOT A SERVICEABLE PART)
26
W10861883 Whirlpool Screw
←
