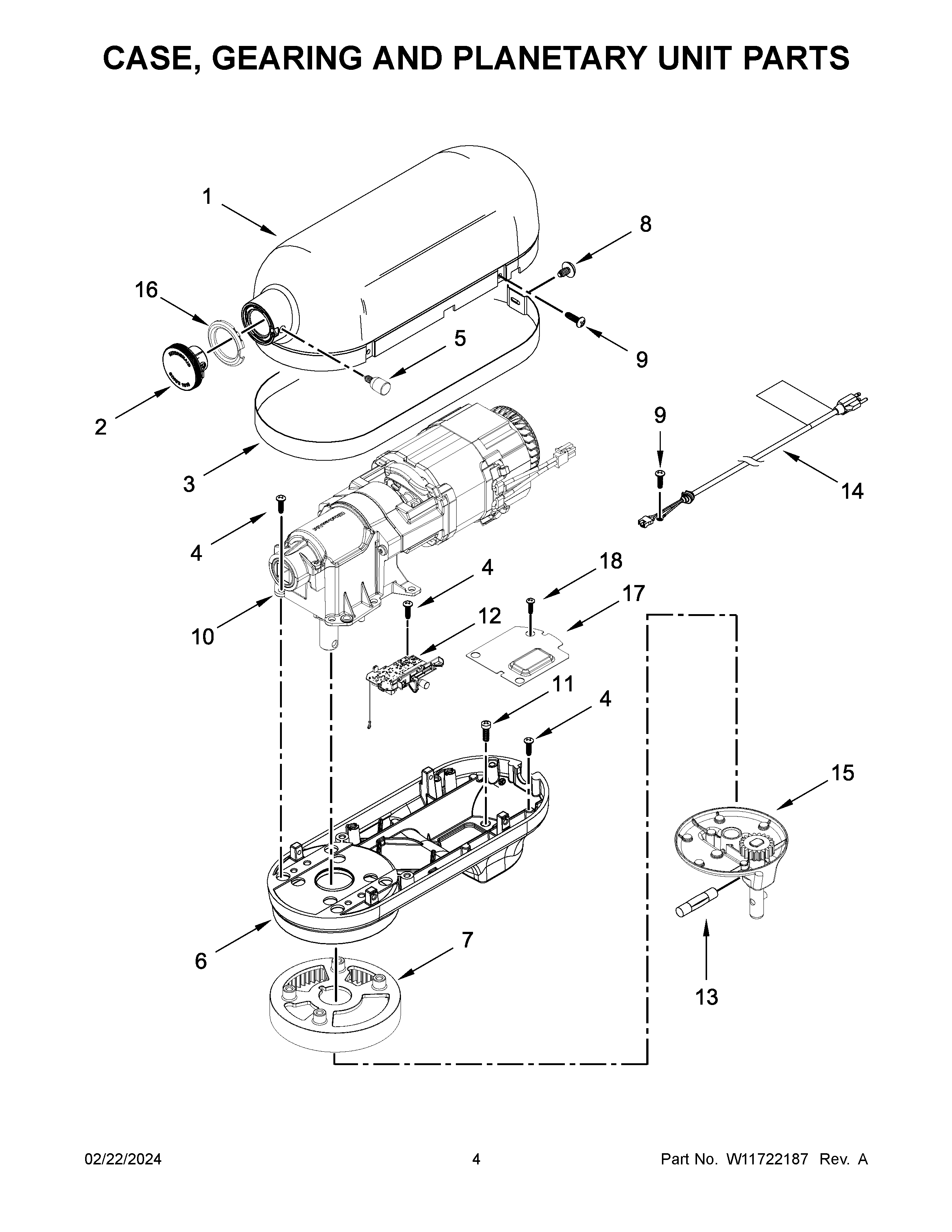

3KSM60SPXTWH0 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

Position	Product
1	MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)
2	CAP, ATTACHMENT HUB
3	TRIM BAND (REFER TO COLOR VARIATION PARTS PAGE)
4	W10914506 Whirlpool Screw
5	THUMB SCREW (SATIN CHROME)
6	LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)
7	GEAR, RING AND PLATE ASSEMBLY
8	W10853069 Whirlpool Screw
9	WP3400814 Whirlpool Screw
10	MOTOR, 127 VOLT ASSEMBLY
11	W10913677 Whirlpool Screw
12	CONTROL ASSEMBLY (127V)
13	WPW10234531 Whirlpool Dishwasher Groove Pin
14	CORD, POWER (BLACK (TAIWAN))
15	PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
16	WP9703315 Whirlpool Hub Cap
17	PLATE, LOWER HOUSING
18	SCREW
