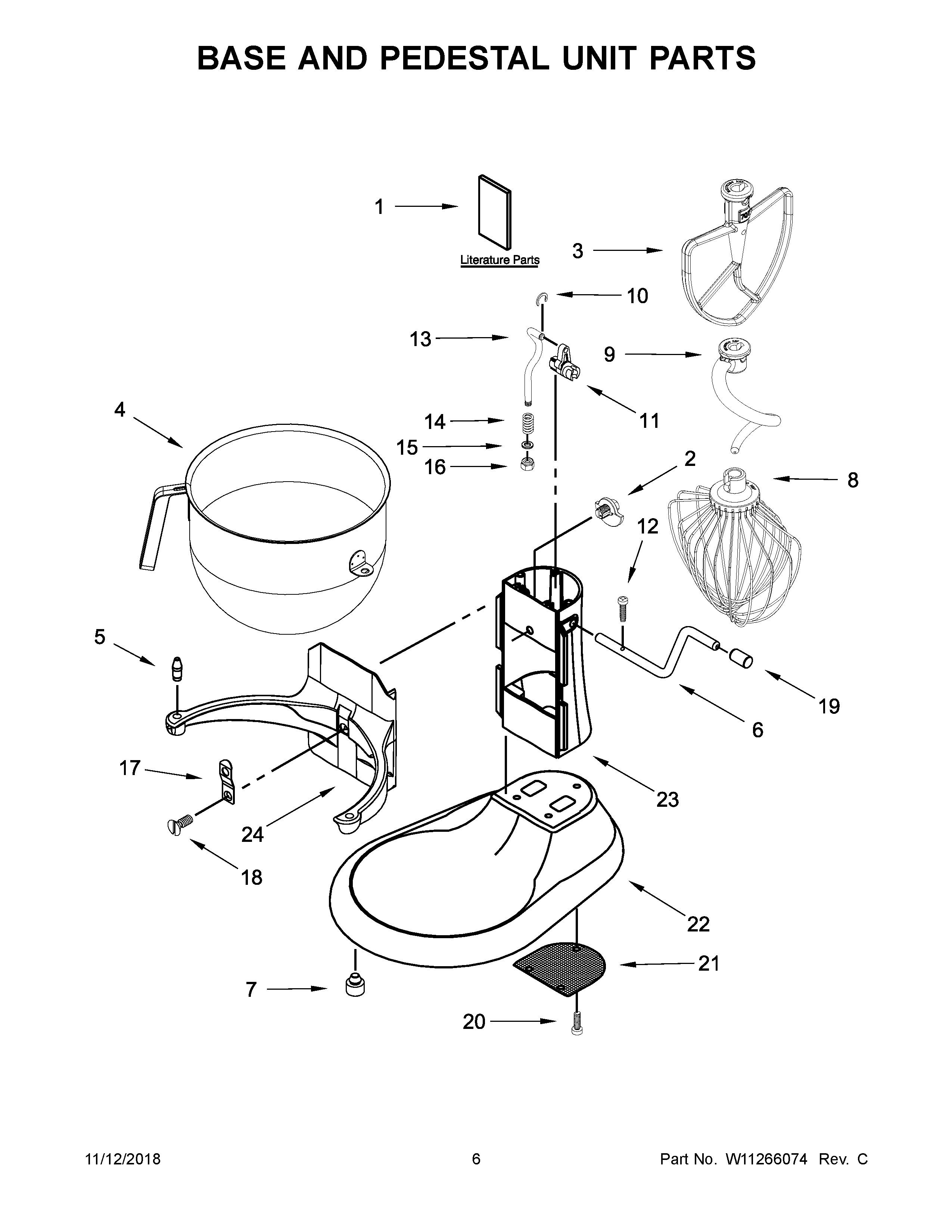

3KSM6583TWH0 04 – BASE AND PEDESTAL UNIT PARTS

3KSM6583TWH0 04 – BASE AND PEDESTAL UNIT PARTS

Written by

in

3KSM6583TWH0 04 – BASE AND PEDESTAL UNIT PARTS

Products

PositionProduct
1USE & CARE GUIDE
2Cam, Adjusting
3WPW10672616 Whirlpool Mixer Beater
4WPW10245251 Whirlpool Mixer Bowl
5WP240185 Whirlpool Bowl Retaining Pin
6W11376371 Whirlpool Handle Assembly
7WP9708649 Whirlpool Foot
8WP9703491 Whirlpool Wire Whip
9W10908278 Whirlpool Dough Hook
10WP9703307 Whirlpool Ring-C Assembly
11WP9706885 Whirlpool Lift Arm Assembly
12WP3400814 Whirlpool Screw
13W11376364 Whirlpool Lift Rod
144159622 Whirlpool PP Spring
15Washer
168533907 Whirlpool Dishwasher Nut
17WPW10504114 Whirlpool Clip
18W10861883 Whirlpool Screw
19W11379274 Whirlpool Handle
20W10913677 Whirlpool Screw
219706814 Whirlpool Screen
24CABINET (NOT A SERVICEABLE PART)
