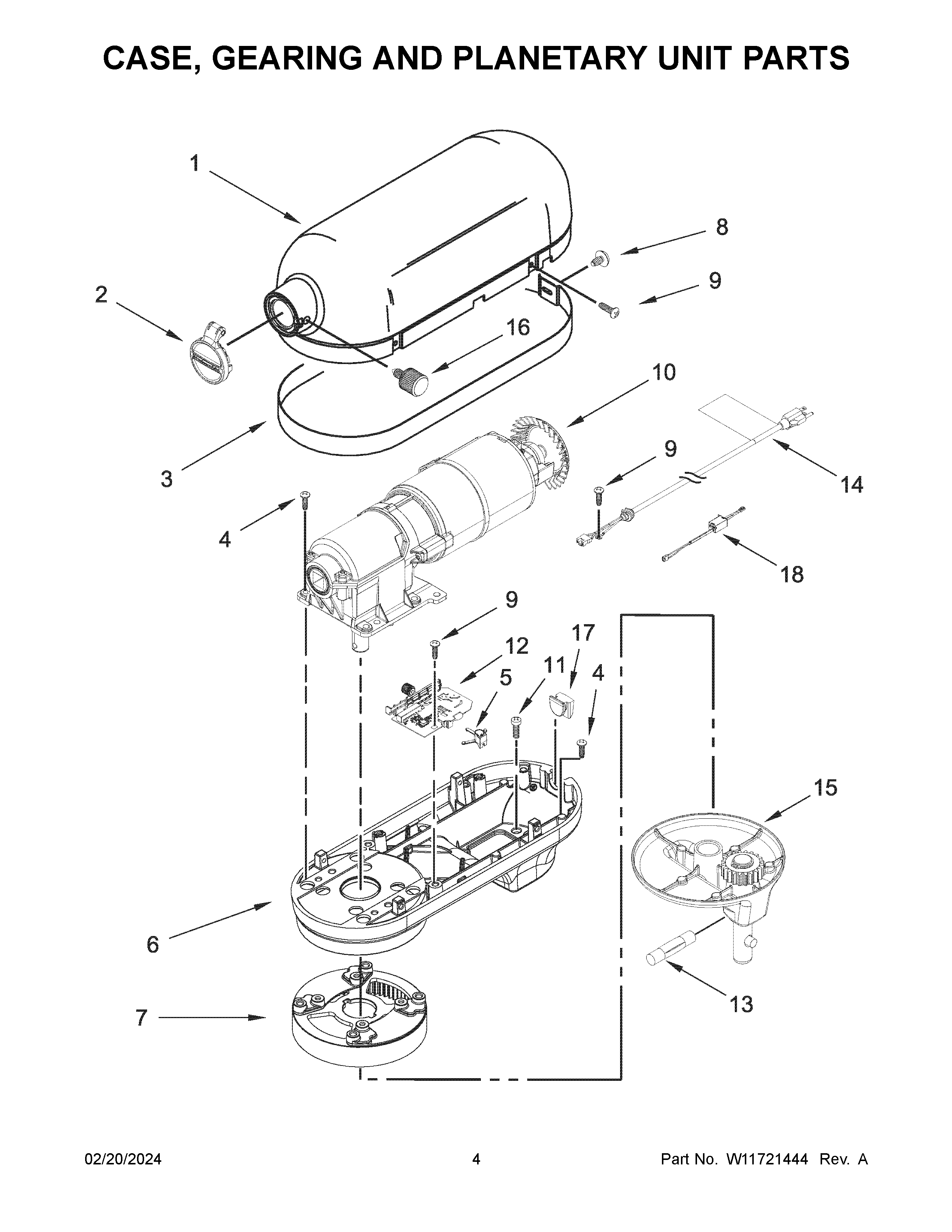

3KSMC895TWH1 03 – CASE, GEARING AND PLANETARY UNIT PARTS

Products

PositionProduct
1MOTOR HOUSING (REFER TO COLOR VARIATION PARTS PAGE)
2W11123129 Whirlpool Hubcap
3TRIM BAND (REFER TO COLOR VARIATION PARTS PAGE)
4W10914506 Whirlpool Screw
5WPW10305968 Whirlpool Holder
6LOWER GEARCASE (REFER TO COLOR VARIATION PARTS PAGE)
7ASSEMBLY, RING GEAR AND PLATE
8W10853069 Whirlpool Screw
9WP3400814 Whirlpool Screw
10W11246392 Whirlpool Motor
11W10913677 Whirlpool Screw
12CONTROL, 120 VOLT
13WPW10234531 Whirlpool Dishwasher Groove Pin
14CORD, POWER (ORANGE (TAIWAN))
15PLANETARY ASSEMBLY (REFER TO COLOR VARIATION PARTS PAGE)
16WPW10360791 Whirlpool Screw
17W10417201 Whirlpool Clip
18FILTER
