3KUIS185V0 02 – UNIT

Products

Position	Product
	350956 Whirlpool Spray Assembly
	Pump, Condensate Drain (Complete Kit)
	Leveler (Thinner) (2oz.)
	WPL LIT758801
	WPL LIT759087
	WPL LIT759088
	WPL LIT759089
	350942 Whirlpool Spray Paint

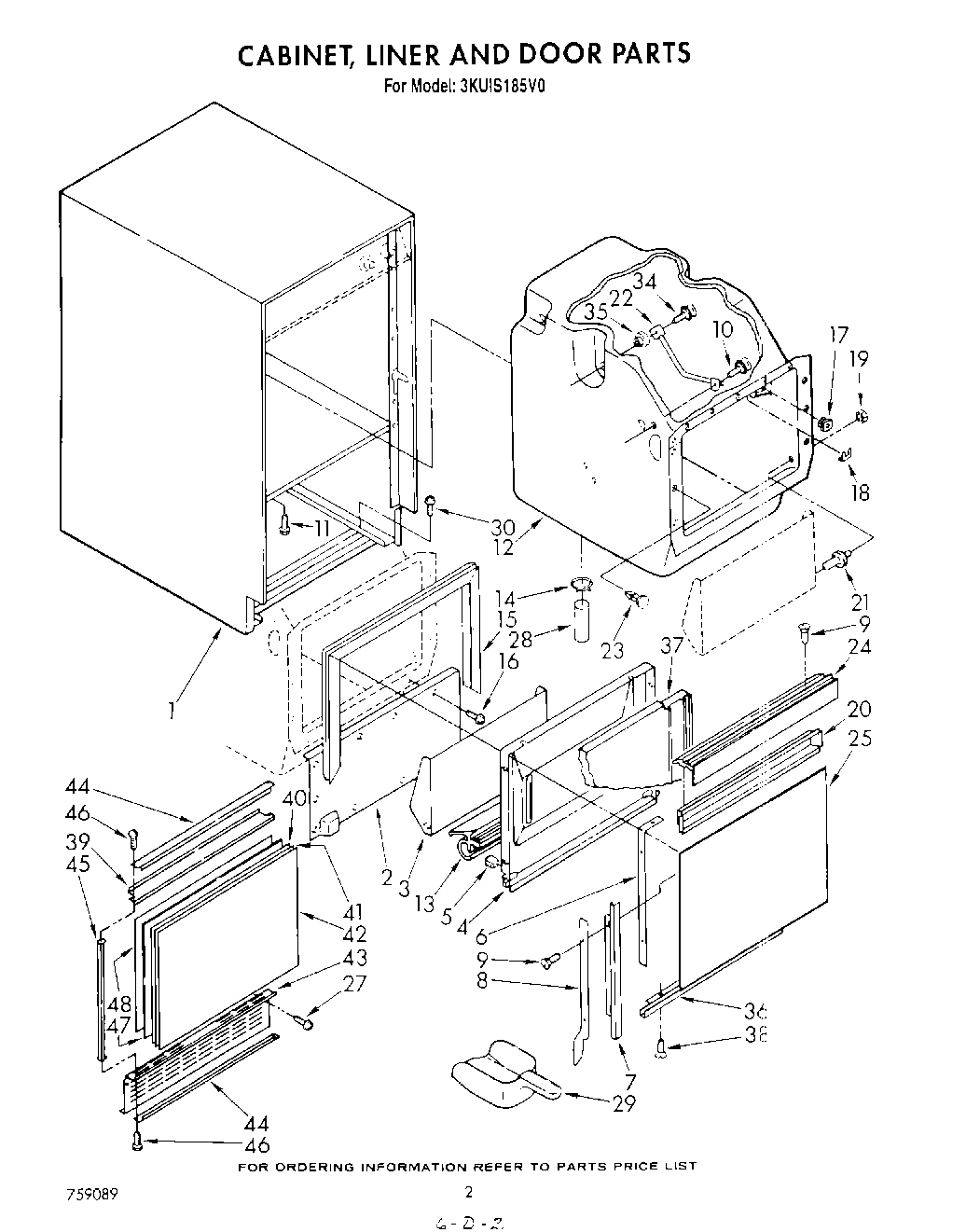

1	Shell
2	Support, Cabinet Front
3	Door, Inner
4	Liner, Door
5	Plug, Hinge
6	Strip, Tapping (2)
7	Trim, Door (2)
8	Rail, Door (Right Side)
8	Rail, Door (Left Side)
9	Screw, No.8-32 1/2 (6)
10	Thumbscrew 10-32 x 5/8
11	Screw, 8-32 x 3/8 (2)
12	Liner (Includes No.s 5, 6, 7, 11, 14)
13	Gasket, Door
14	Clamp, Hose (2)
15	Gasket
16	WP965173 Whirlpool Dishwasher Screw
17	Grommet, Mtg (2)
18	Washer, Clip
19	Nut, Hex 1/4 (2)
20	Pocket, Handle
21	Stud, Inner Door Mtg. (2)
22	Thermostat, Well Bin
23	Clip, Linner (12)
24	Handle, Door
25	Panel, Door (White & Black)
25	WPL 758745
25	Panel
27	Screw, 8-32 x 3/8 (6)
28	Hose, 5/8 x 4“ (Connector To Air Gap)
29	W11420408 Whirlpool Refrigerator Ice Scoop
30	Screw, No.10-32 x 3/8
34	Screw, 10 x 1/2
35	Nut, Well (3)
36	Trim, Door
37	Insulation, Door
38	Screw, No.8-32 x 1/2
39	Support Panel
40	Panel, Grille Cabinet Front
41	Toast & Platinum Panel
42	Grille, Cabinet Front
43	Grille, Panel
44	Trim Front, Panel (Top & Bottom)
45	Trim Front, Panel (Side)
47	Filler, Grille Panel
48	Leg, Leveling Kit
48	Grid, Cutter (3/4“ – Cubes)
48	Panel, Inner Grille
48	Grid, Cutter (1-1/4“ – Cubes (Complete Assembly))
48	WP978025 Whirlpool Refrigerator Valve
48	978026 Whirlpool Refrigerator Primary Valve
48	876764 Whirlpool Refrigerator Primary Valve
48	WP503695 Whirlpool Refrigerator Sealer
48	Ice Deflector Kit
