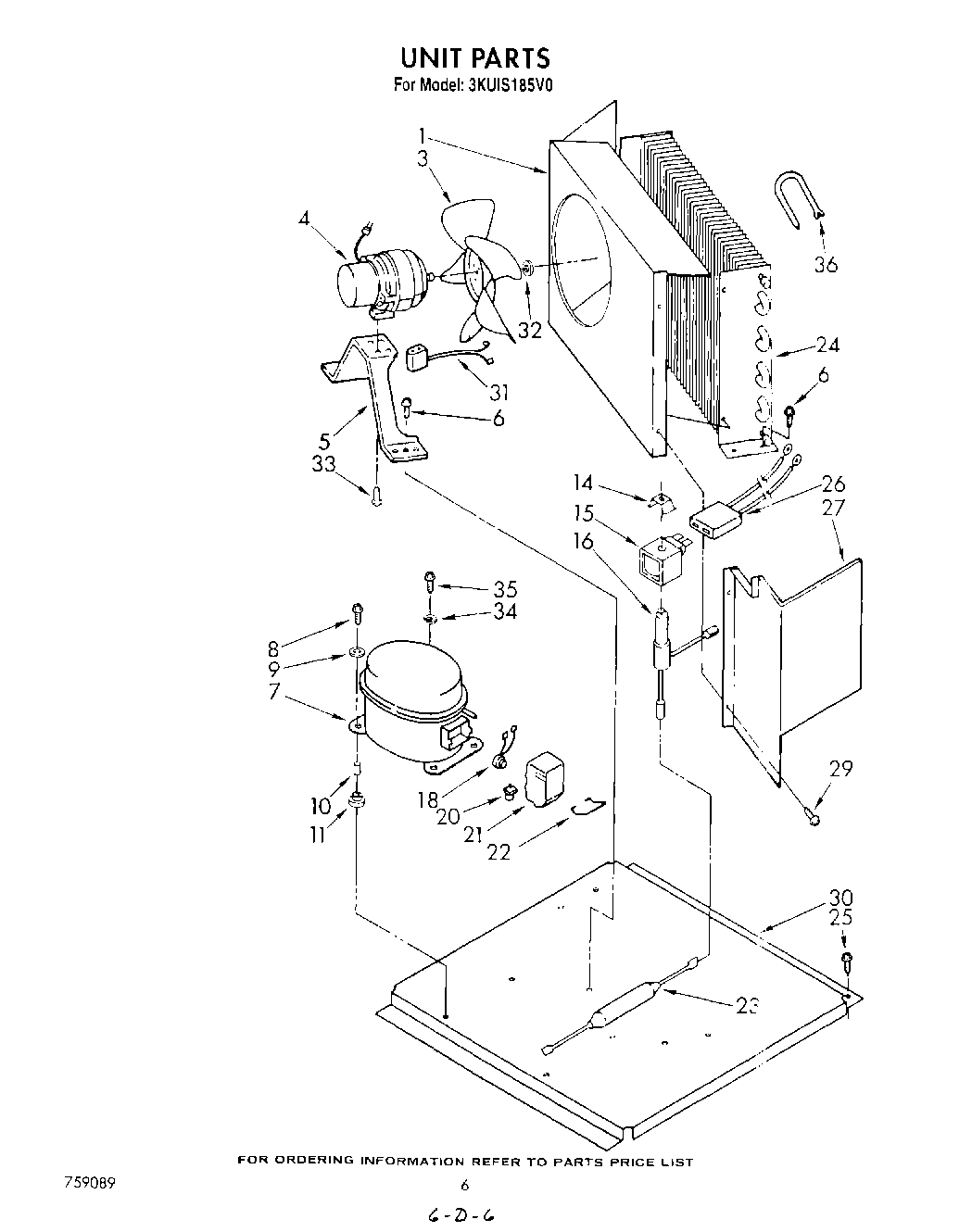

3KUIS185V0 05 – UNIT

Products

Position	Product
1	Shroud, Condenser
3	978655 Whirlpool Refrigerator Fan Blade
4	WPL 593821
5	Bracket, Fan Motor
6	Screw, 1/4-20 x 1/2
7	Compressor
8	Screw, 5/16-18 x 1-1/4 (4)
9	Washer, Flat (4)
10	Sleeve (4)
11	Grommet (4)
14	Retainer, Solenoid Coil
15	WPL 593639
16	Valve, Solenoid Coil
18	WPL 598196
20	WPL 598195
21	Case, Relay
22	Spring
23	W10843121 Whirlpool Refrigerator Tube
24	Condenser
25	Screw, No.10-32 x 3/8
26	Harness, Wiring (Solenoid Coil)
27	Deflector, Air
29	WP90767 Whirlpool Screw
30	Base, Unit
31	Harness, Wiring (Fan Motor)
32	Nut, Hex 1/4-20
33	Screw, 8-36 x 1/2 (Included With Fan Motor)
34	Lock Washer
35	Screw (Compressor Ground)
36	Accumulator
