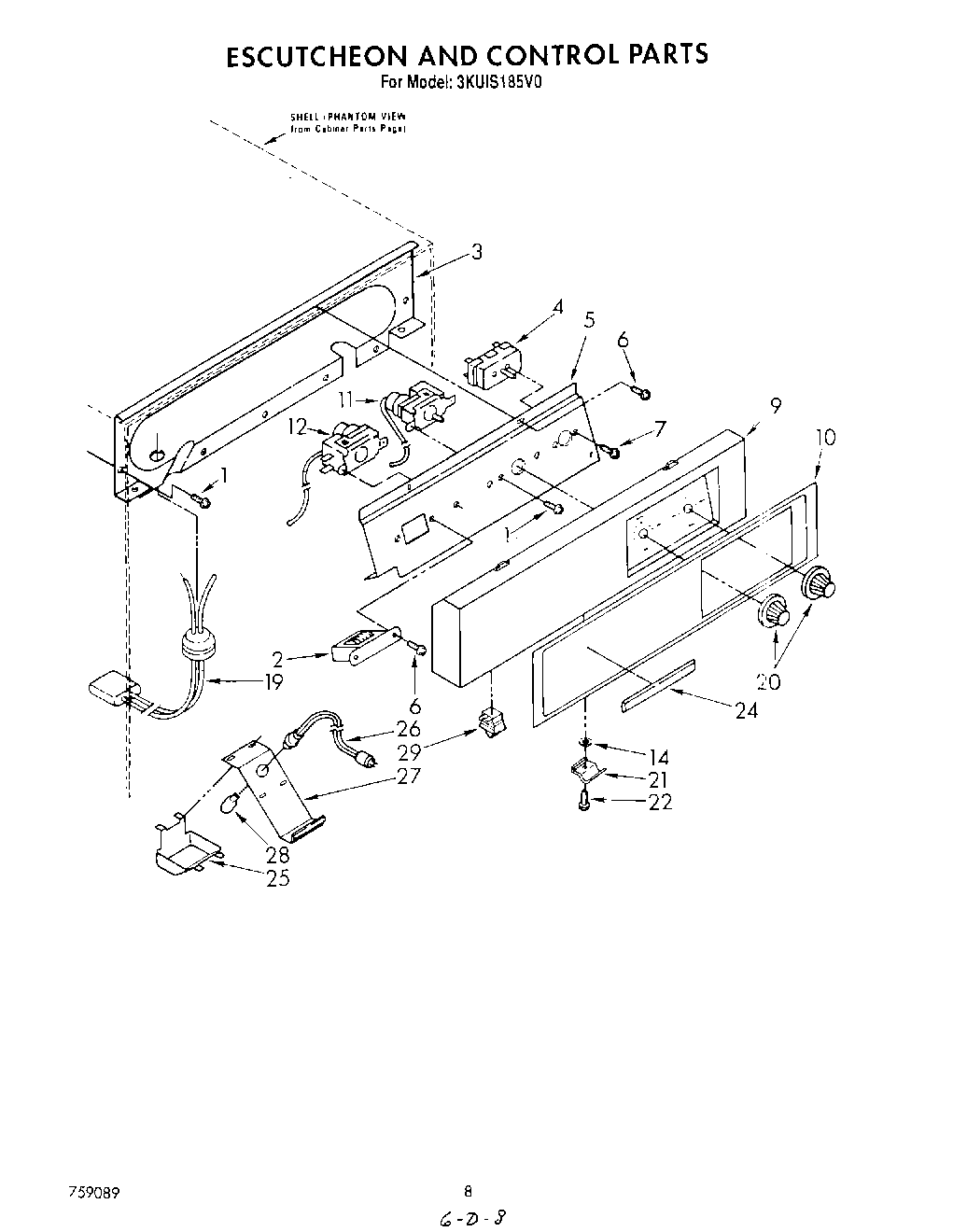

3KUIS185V0 06 – ESCUTCHEON AND CONTROL

3KUIS185V0 06 – ESCUTCHEON AND CONTROL

Written by

in

3KUIS185V0 06 – ESCUTCHEON AND CONTROL

Products

PositionProduct
1Screw, 8-32 x 3/8 (2)
2WPL 758309
3Panel, Rear Escutcheon
4Switch, Rotary
5Panel, Control
6WP965173 Whirlpool Dishwasher Screw
7WP486579 Whirlpool Air Conditioner Screw
9Escutcheon
10Decal, Escutcheon
11Thermostat, Evaporator
12Thermostat, Ice Bin
14Washer, Latch
19Harness, Wiring (Cutter Grid)
20Knob (2)
21Latch, Door
22Screw, 8-32 x 1/2
24Nameplate
25Shield, Light
26Harness, Light
27Bracket, Light
28Bulb, Light (Pkg. Of 2)
29W11384469 Whirlpool Door Switch
