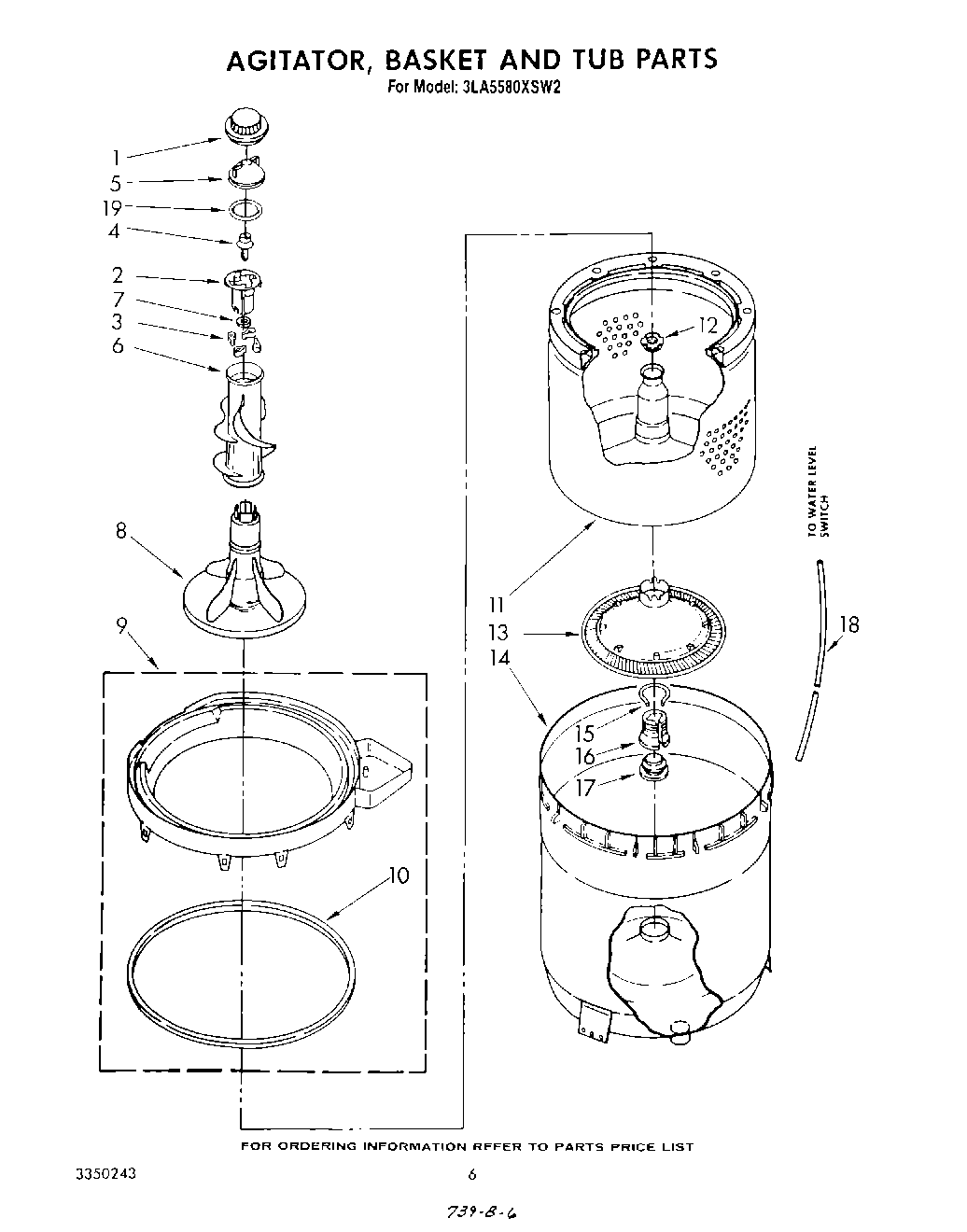

3LA5580XSW2 04 – AGITATOR, BASKET AND TUB

3LA5580XSW2 04 – AGITATOR, BASKET AND TUB

Written by

in

3LA5580XSW2 04 – AGITATOR, BASKET AND TUB

Products

PositionProduct
1WP3355758 Whirlpool Agitator Cap
2285811 Whirlpool Washer Agitator Repair Kit
380040 Whirlpool Washer Agitator Dog Kit
4WP358237 Whirlpool Agitator Bolt
5WPW10074580 Whirlpool Agitator Inner Cap and Seal
6WP3348752 Whirlpool Agitator Mover
7Seal, Agitator
8AGITATOR
9W10880720 Whirlpool Tub Ring
10WP3976308 Whirlpool Tub Seal
11W10389328 Whirlpool Basket
12WP21366 Whirlpool Spanner Nut
13285868 Whirlpool Washer Filter Plug Kit
1463849 Whirlpool Outer Tub Primary Assembly
15Lock, Filter
16WP389140 Whirlpool Drive Block or Bell
17W10814296 Whirlpool Washer Center Post Seal Gasket
18WP353244 Whirlpool Hose
19WPW10072840 Whirlpool Seal Assembly
