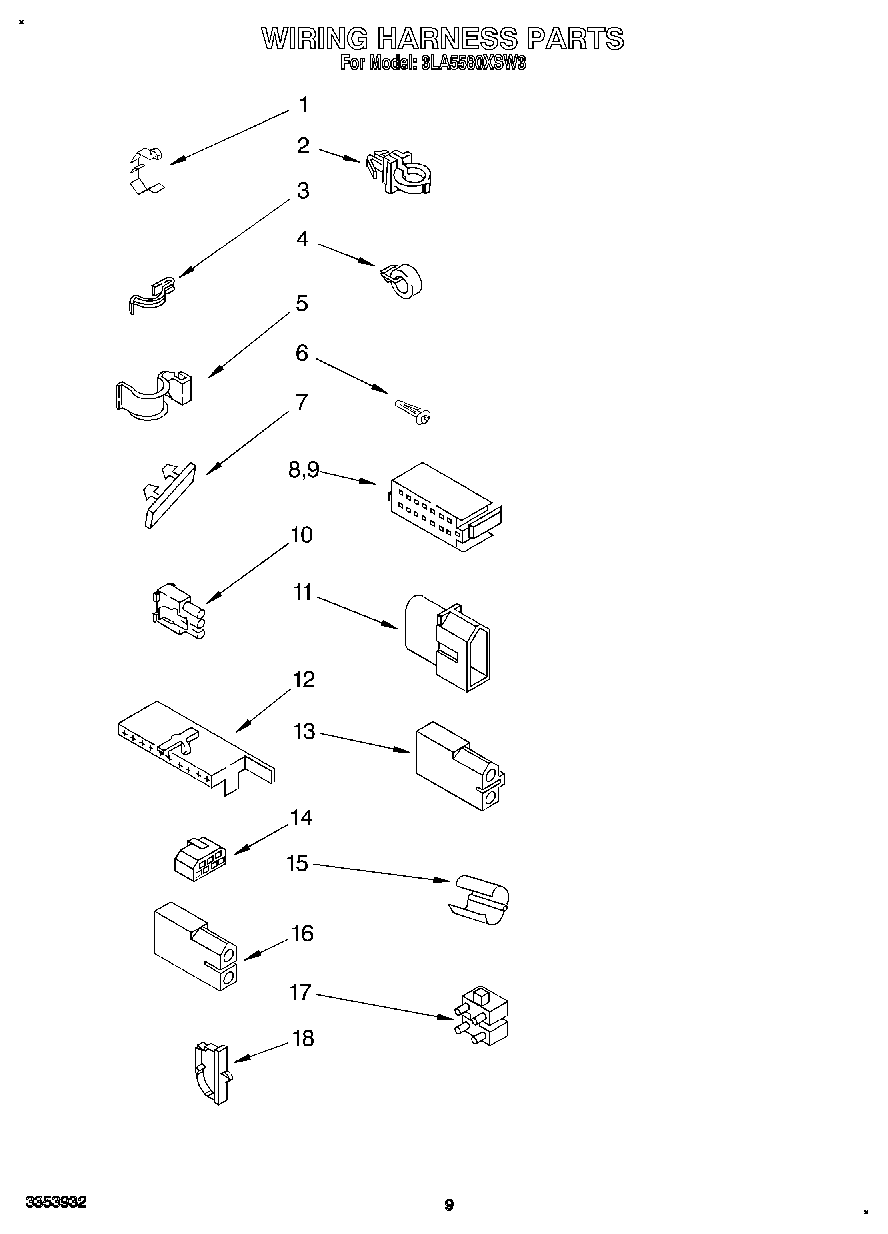

3LA5580XSW3 07 – WIRING HARNESSadmin2025-04-26T10:52:02+00:003LA5580XSW3 07 – WIRING HARNESS
Products
| Position | Product |
|---|
| 1 | Clip, Harness |
| 2 | Clip, Harness |
| 3 | 8528351 Whirlpool Clip |
| 4 | 8559320 Whirlpool Clip |
| 5 | WP90016 Whirlpool Clip |
| 6 | Clip, Harness |
| 7 | WP389379 Whirlpool Retainer |
| 8 | Timer, Block Disconnect (White) |
| 9 | W10876590 Whirlpool Connector |
| 10 | WP62889 Whirlpool Washer Lid Switch Terminal Receptacle |
| 11 | 353424 Whirlpool Connector |
| 12 | WP62505 Whirlpool Connector |
| 13 | Block, Disconnect (Motor 3 Speed) (Use Term. 94613 Or 94614) |
| 14 | Block, Disconnect |
| 15 | Protector, Harness |
| 16 | Receptacle, Latching (2-Way) (Uses Terminal 94614) |
| 17 | Plug, Terminal (4-Way) (Power Cord) (Use M3 Screws) |
| 18 | Clip, Harness |
