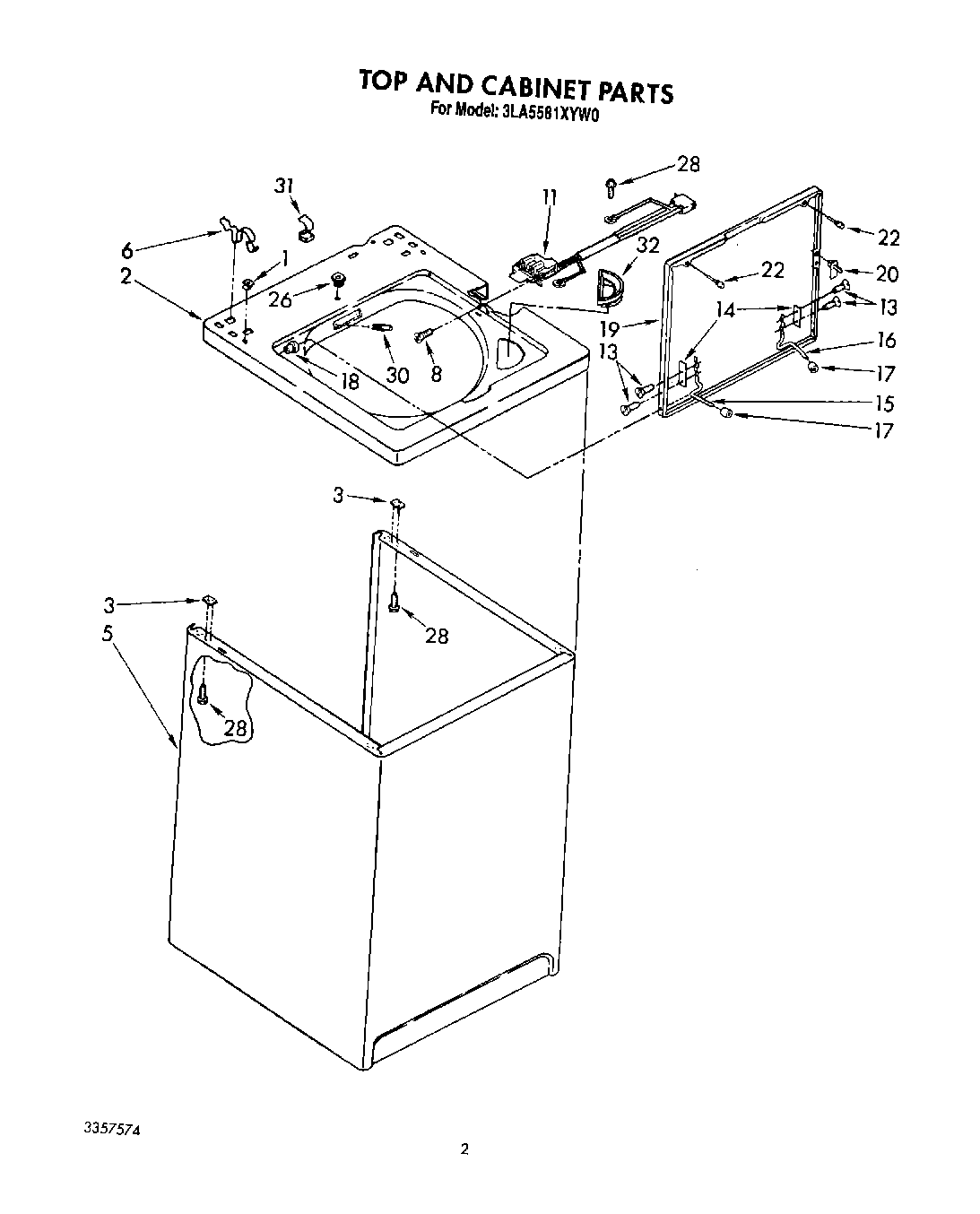

3LA5581XYN0 02 – TOP AND CABINET, LIT/OPTIONAL
Written by
in
3LA5581XYN0 02 – TOP AND CABINET, LIT/OPTIONAL
Products
Position
Product
350930 Whirlpool White Spray Paint
350572 Whirlpool Oil Transmission 15 Oz
Guide, Laundry
Shipping Kit
WPL 89121
LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
Guide, Use and Care
Earth Ground Assembly
WP285195 Whirlpool Sealer Assembly
Drain Protector (Not Included)
285320 Whirlpool Washer Siphon Break Kit
350938 Whirlpool Spray Gun
350956 Whirlpool Spray Assembly
72017 Whirlpool Appliance Touch-Up Paint White
799344 Whirlpool Refrigerator Paint
Sheet, Installation Instructions
Leveler (Thinner)
List, Repair Parts
WP72107 Whirlpool Touchup
Almond (Uncut)
1
Nut, Push-In (2)
2
Top (White)
2
Top (Almond)
3
WP62750 Whirlpool Spacer
5
Cabinet (Almond)
5
63424 Whirlpool Cabinet Assembly
6
WP62780 Whirlpool Cabinet Clip
8
WP3356311 Whirlpool Screw
11
Switch, Lid
13
SCREW
14
WP21097 Whirlpool Pad
15
WP54584 Whirlpool Hinge
16
WP54583 Whirlpool Hinge
17
Bumper, Lid Hinge
18
WP21258 Whirlpool Washer Lid Hinge Bearing
19
Lid (Almond)
19
Lid (White)
20
WP358684 Whirlpool Strike Assembly
22
WP9724509 Whirlpool Bumper
26
Stop, Push-In Top
28
SCREW
30
Rivet, Serial Nameplate
31
WP90016 Whirlpool Clip
32
WP3362952 Whirlpool Bezel
←
