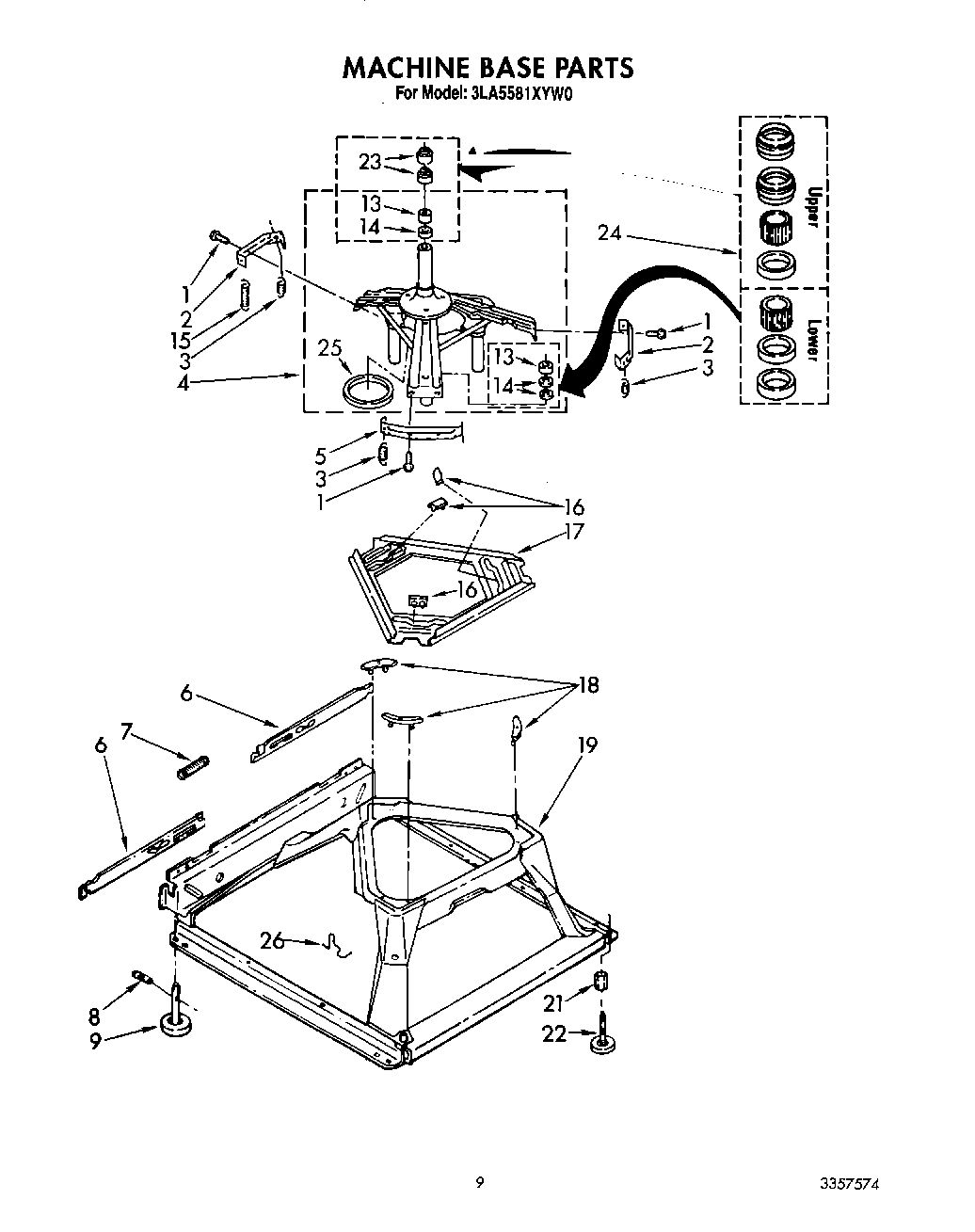

3LA5581XYN0 08 – MACHINE BASE

Products

Position	Product
1	WP273556 Whirlpool Screw
2	WP64067 Whirlpool Bracket
3	WP63907 Whirlpool Washer Suspension Spring
4	Support & Brake, Tub
5	Bracket, Spring Outer (L.F.)
6	Link, Leveling Mechanism (2)
7	8316845 Whirlpool Washer Spring
8	WP62837 Whirlpool Dowel Pin
9	285244 Whirlpool Leveling Feet
13	WP8546455 Whirlpool Bearing
14	W11095997 Whirlpool Seal
15	WPW10250667 Whirlpool Washer Suspension Spring
16	285219 Whirlpool Washer Suspension Plate Friction Pads 3 Pack
17	WP3946509 Whirlpool Skate Plate
18	285744 Whirlpool Washer Tub Suspension Rod Kit Pad 3 Pack
19	Base Assembly (Includes Illus, 6, 7, 8, 9, 18 & 26)
21	WP62739 Whirlpool Nut
22	WPW10001130 Whirlpool Leveling Leg
23	WP8577376 Whirlpool Seal
24	285203 Whirlpool CP Bearing
25	WP63134 Whirlpool Ring
26	WPW10145155 Whirlpool Retainer
