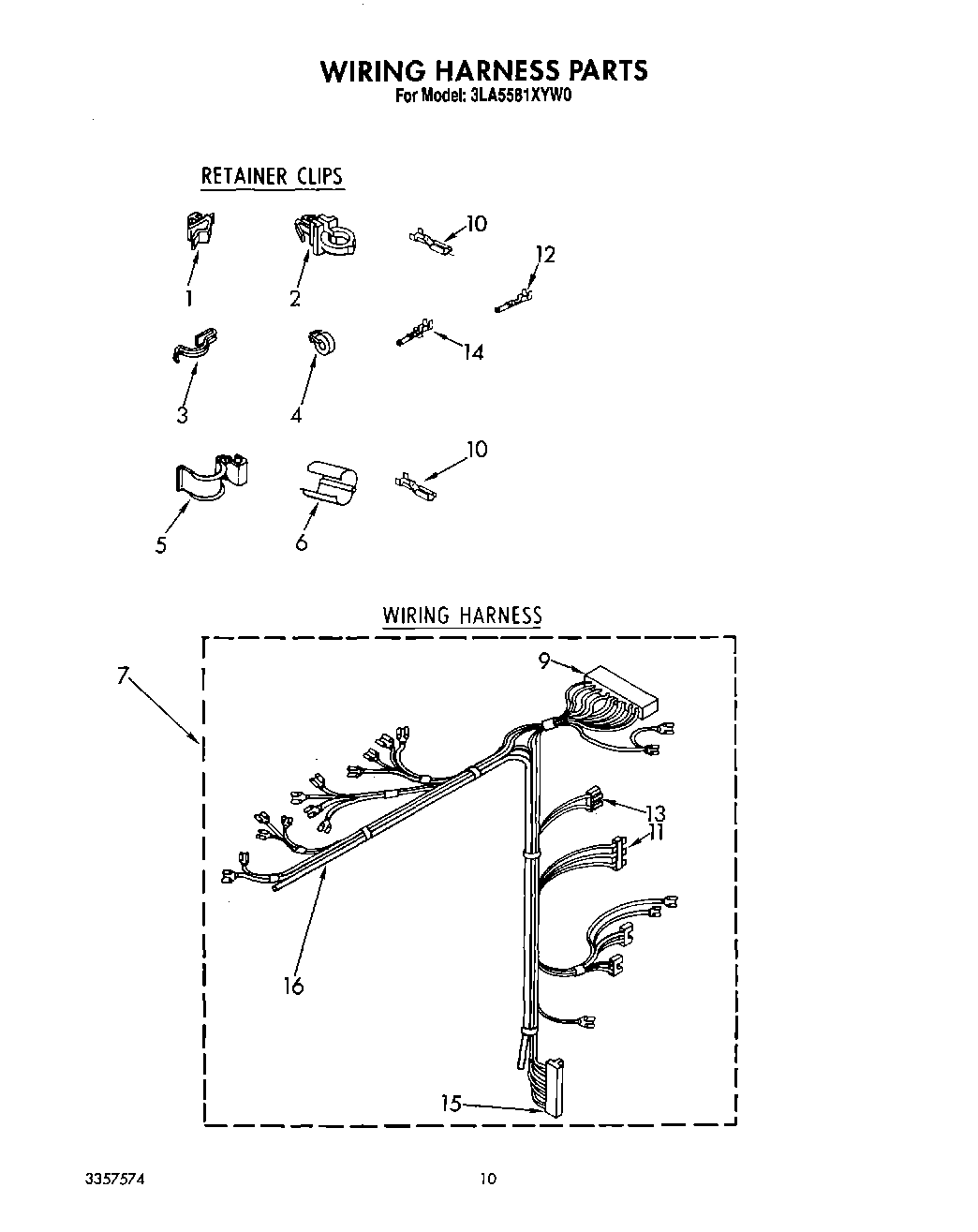

3LA5581XYN0 09 – WIRING HARNESS

3LA5581XYN0 09 – WIRING HARNESS

Written by

in

3LA5581XYN0 09 – WIRING HARNESS

Products

PositionProduct
1Clip, Harness
2Clip, Harness
38528351 Whirlpool Clip
48559320 Whirlpool Clip
5WP90016 Whirlpool Clip
6Protector, Harness
7Wiring Harness & Pressure Switch Hose
9W10876590 Whirlpool Connector
10Terminal
11WP62889 Whirlpool Washer Lid Switch Terminal Receptacle
12WP94614 Whirlpool Terminal
13Plug, Terminal (4-Way) (Power Cord) (Use M3 Screws)
14WP596797 Whirlpool Terminal
15WP62505 Whirlpool Connector
16WP353244 Whirlpool Hose
