3LA5700XMW0 03 – TOP AND CONSOLE

3LA5700XMW0 03 – TOP AND CONSOLE

Written by

in

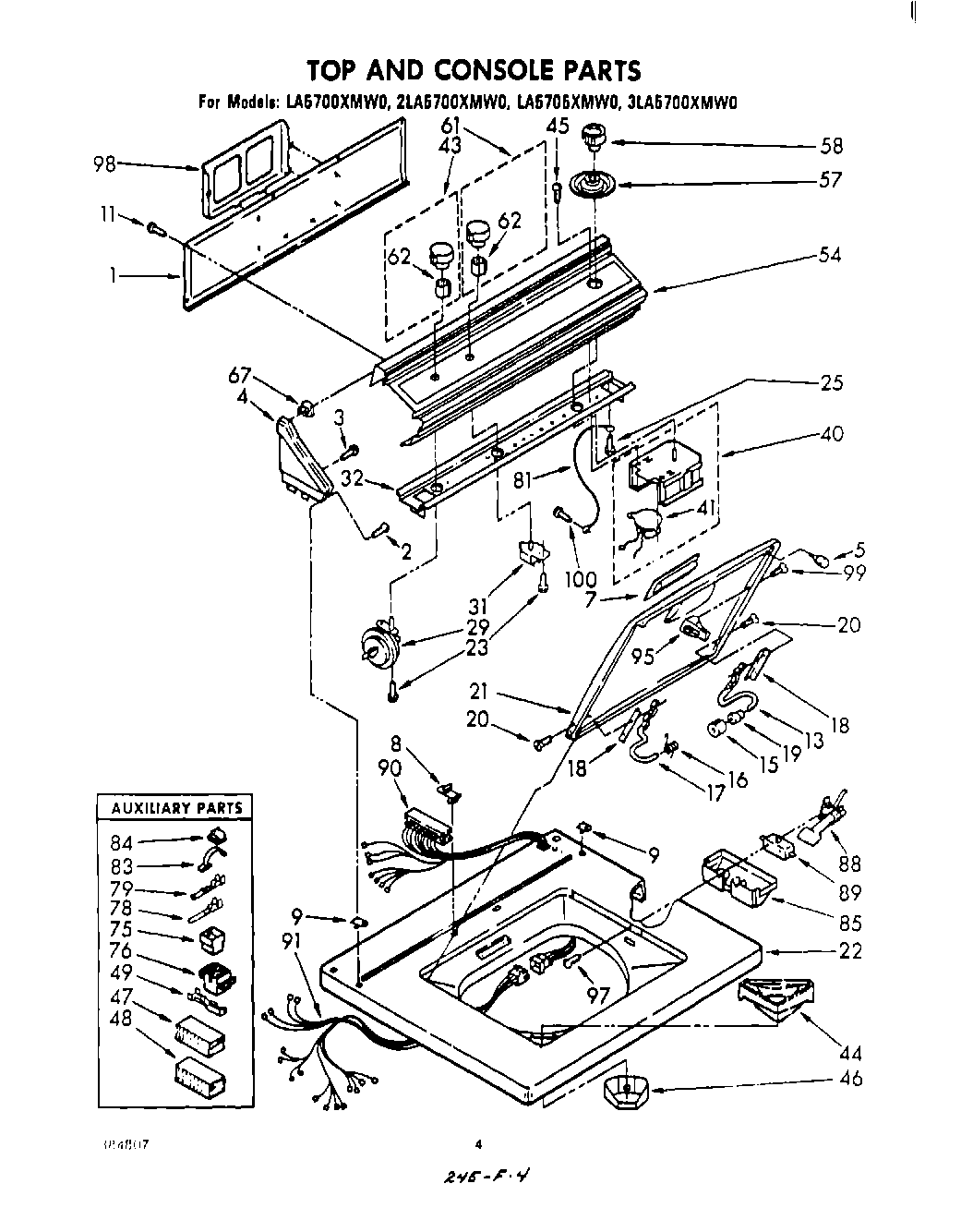

3LA5700XMW0 03 – TOP AND CONSOLE

Products

Position	Product
	WPL 385336
1	Panel, Rear Console
2	Screw, 8-18 x 1 (2)
3	WPL 355326
4	Cap, End (L.H.) (White)
4	Cap, End L.H. (White)
4	Cap, End (L.H.) (Almond)
4	Cap, End L.H. (Almond Cap, End R.H.)
4	Cap, End (L.H.) (Platinum Cap, End (R.H.))
4	Cap, End L.H. (Platinum)
4	Cap, End L.H. (Golden Harvest)
4	Cap, End (L.H.) (Toast)
4	Cap, End L.H. (Toast)
4	Cap, End (L.H.) (Golden Harvest Cap, End (R.H.))
5	WP9724509 Whirlpool Bumper
7	Handle, Lid (White)
7	Handle, Lid (Almond)
7	Handle, Lid (Platinum)
7	Handle, Lid (Toast)
7	Handle, Lid (Golden Harvest)
8	Stop, Push-In Top
9	Nut, Push-In (2)
11	W11693756 Whirlpool Screw Assembly
13	WP91770 Whirlpool Hinge
15	Bumper, Lid Hinge
16	Spring, Hinge
17	Hinge, L.H.
18	WP21097 Whirlpool Pad
19	WP21258 Whirlpool Washer Lid Hinge Bearing
20	SCREW
21	Lid (Toast)
21	Lid (White)
21	Lid (Platinum)
21	Lid (Almond)
21	Lid (Golden Harvest)
22	Top (Platinum)
22	Top (Toast)
22	Top (Almond)
22	Top (Golden Harvest)
22	Top (White)
23	WP90767 Whirlpool Screw
25	WP3351614 Whirlpool Screw
29	Switch, Water Level
29	Switch, Water Level (Alternate)
29	Switch, Water Level (Alternate)
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature (Alt.)
31	Switch, Water Temperature
32	Bracket, Control
40	Timer, 60 Hz. (Alt.) (Non-Suds) (C.C.A.)
40	WPL 385348
40	WPL 385347
40	Timer Assembly, 50 Hz.
40	WPL 660973
41	Motor, Timer 50 Hz. (Use W/C.C.A. Timer)
41	Use W/C.C.A. Timer
41	Motor Timer (50 Hz.)
41	Motor, Timer 60 Hz.
43	Knob Assembly, Water Level
44	WPL 352821
45	WP356418 Whirlpool Screw
46	WPL 352827
47	W10876590 Whirlpool Connector
48	Timer, Block Disconnect (White)
49	Terminal, Female
54	WPL 384766
54	WPL 384765
57	Dial, Timer
58	Knob, Timer
61	Knob, Water Temperature
62	WP688805 Whirlpool Spring Clip
67	WP689559 Whirlpool Nut
75	Cap, Terminal (Console Harness)
76	Plug, Terminal (Cabinet Harness)
78	WP596797 Whirlpool Terminal
79	WP94614 Whirlpool Terminal
81	3184020 Whirlpool Oven Wire
83	8528351 Whirlpool Clip
84	WP90016 Whirlpool Clip
85	WP359231 Whirlpool Shield
88	Switch Actuator Assembly
89	WPL 359327
89	W10820036 Whirlpool Door Switch Kit
90	WPL 359383
91	Harness, Base
91	WPL 88401
95	Strike, Lid Switch
97	Screw & Washer, Lid Switch (2)
98	Rack, Literature
99	Screw & Washer
100	SCREW
