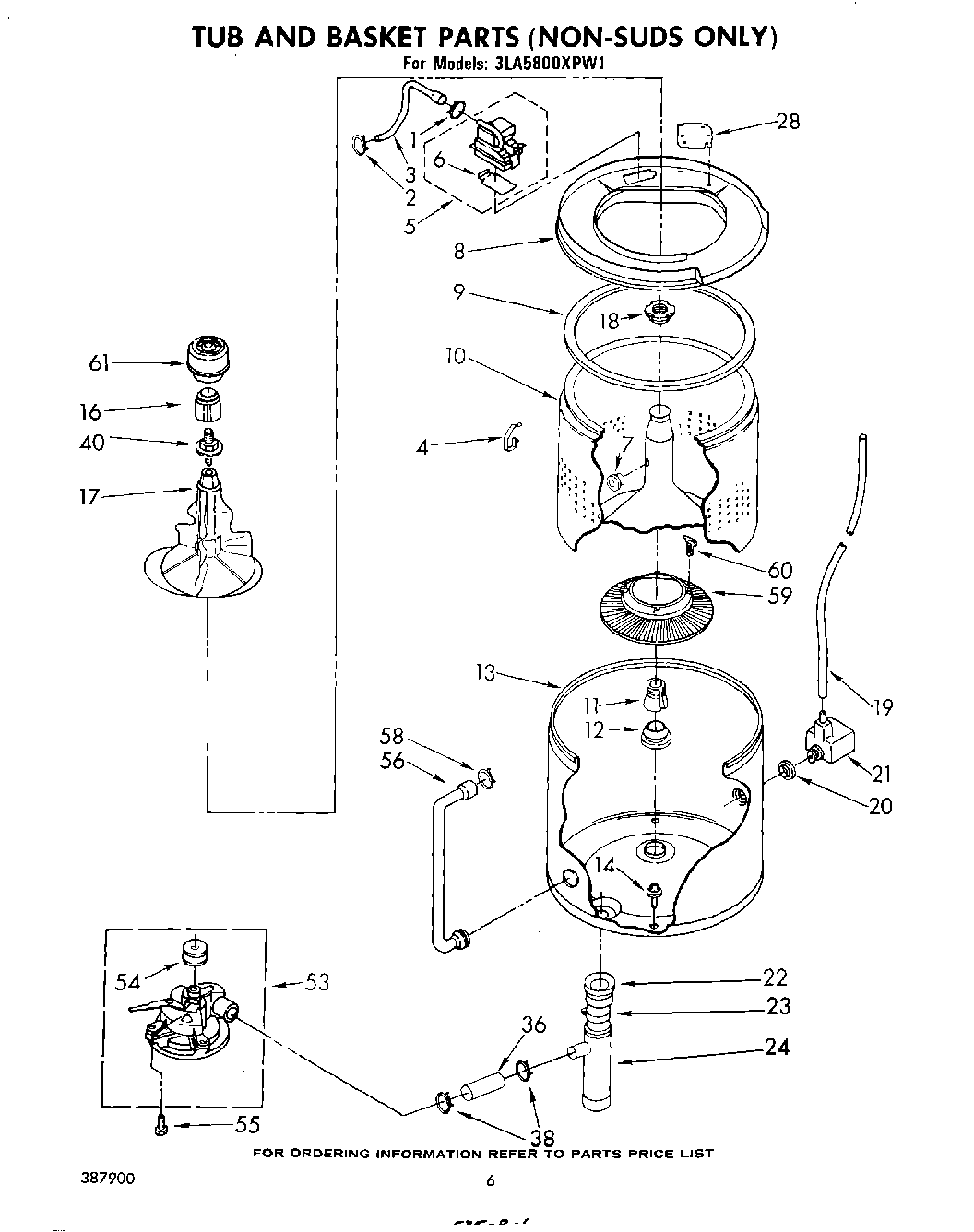

3LA5800XPW1 05 – TUB AND BASKET

Products

Position	Product
3	Hose, Water Inlet
4	Clip, Tub Ring (4)
5	Inlet, Water
6	Flapper
7	Stopper (2)
8	Ring & Filter, Tub (Includes Illus. 22)
9	Seal, Tub Ring
10	Basket
11	WP389140 Whirlpool Drive Block or Bell
12	W10814296 Whirlpool Washer Center Post Seal Gasket
13	Tub
14	Screw & Washer, Tub (4)
16	Cap, Agitator
17	Agitator
18	WP21366 Whirlpool Spanner Nut
19	WP353244 Whirlpool Hose
20	Seal
21	Air Dome Assembly
22	Hose, Tub Outlet
23	Clip, Hose
24	Manifold
28	Plate, Snubber
36	Hose
38	WP285655 Whirlpool Hose Clamp
40	Stud, Agitator Shaft
53	Pump Assembly
54	Pulley
55	386011 Whirlpool Screw
56	Hose, Bleach Dispenser
58	WP596669 Whirlpool Hose Clamp
59	Filter, Element (Includes Illus. 39)
60	Clip, Filter (3)
61	Dispenser, Rinse
