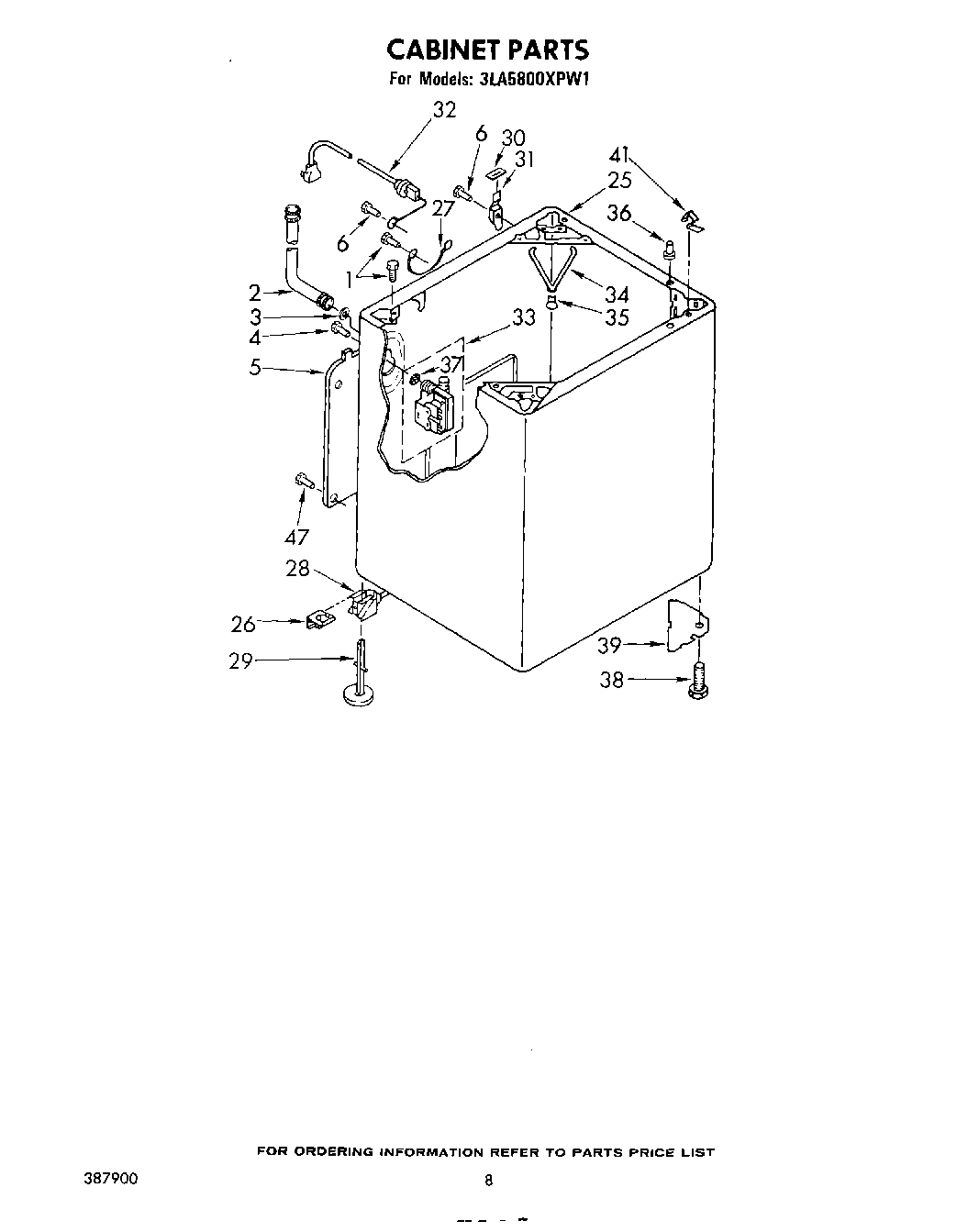

3LA5800XPW1 06 – CABINET

Products

Position	Product
2	WP89503 Whirlpool Washer Fill Hose
3	WP16123 Whirlpool Washer
4	WP3390631 Whirlpool Screw
5	Panel, Rear
6	SCREW
25	Cabinet (Toast)
25	Cabinet (Golden Harvest)
25	Cabinet (Almond)
25	Cabinet
25	Cabinet (Platinum)
26	WP359364 Whirlpool Clip
27	WPL 364089
28	Link, Leveling
29	WP358594 Whirlpool Leveling Feet
30	18849 Whirlpool Pad
31	Hinge, L.H.
31	Hinge, R.H.
32	Cord, Power (60 Hz.)
33	285874 Whirlpool Valve Assembly
34	Spring, Snubber
35	Pad, Snubber
36	Locator, Top
37	WP96160 Whirlpool Washer Inlet Valve Screen
38	WP367594 Whirlpool Leveling Feet
39	Plate, Gusset
41	WP18776 Whirlpool Lock
