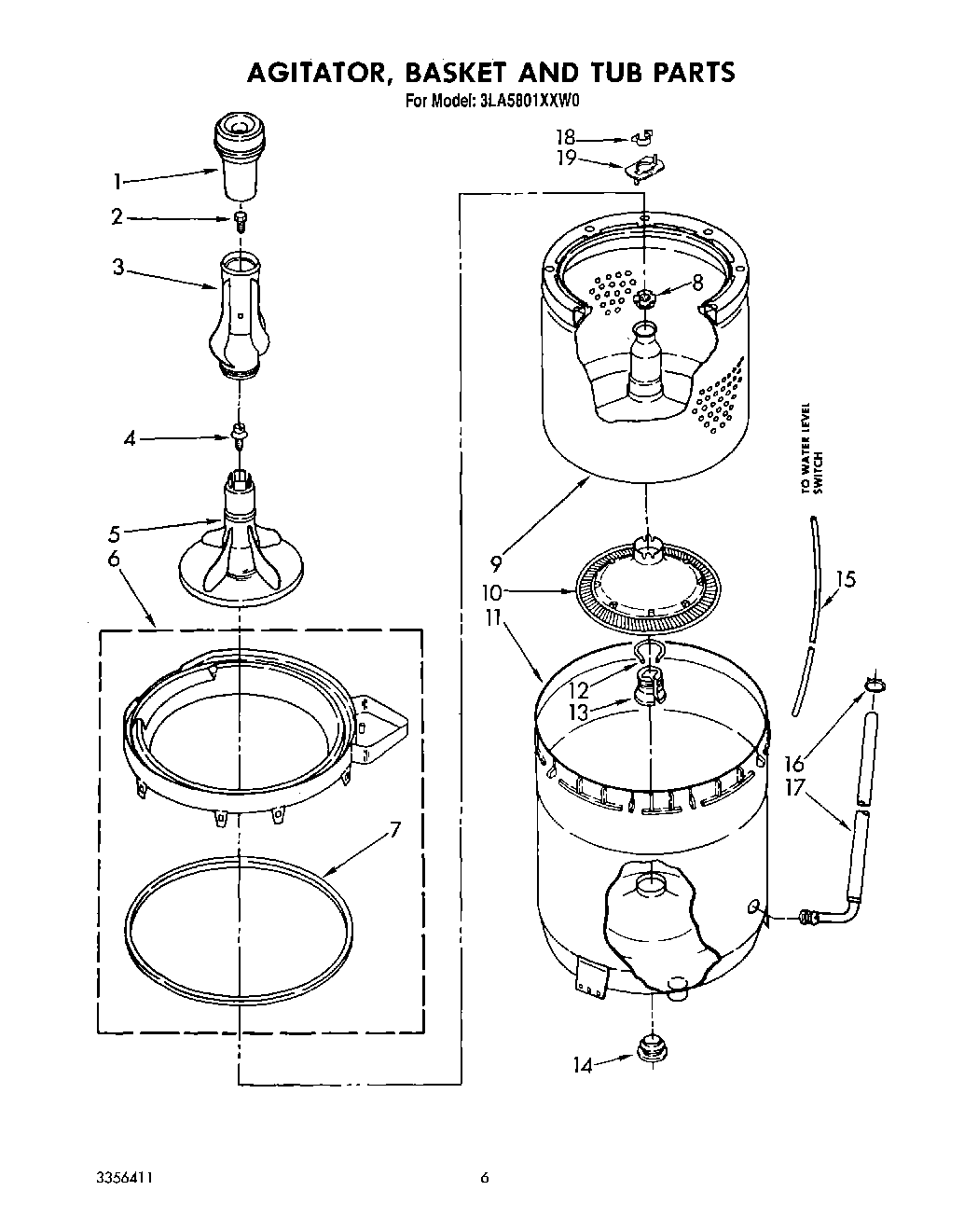

3LA5801XXN0 05 – AGITATOR, BASKET AND TUB

3LA5801XXN0 05 – AGITATOR, BASKET AND TUB

Written by

in

3LA5801XXN0 05 – AGITATOR, BASKET AND TUB

Products

PositionProduct
163580 Whirlpool Washer Fabric Softener Dispenser
2WPW10109200 Whirlpool Screw
3WP3348752 Whirlpool Agitator Mover
4WP358237 Whirlpool Agitator Bolt
5AGITATOR
6W10880720 Whirlpool Tub Ring
7WP3976308 Whirlpool Tub Seal
8WP21366 Whirlpool Spanner Nut
9W10389328 Whirlpool Basket
10285868 Whirlpool Washer Filter Plug Kit
113361596 Whirlpool Outer Tub Primary
12Lock, Filter
13WP389140 Whirlpool Drive Block or Bell
14W10814296 Whirlpool Washer Center Post Seal Gasket
15WP353244 Whirlpool Hose
16WP596669 Whirlpool Hose Clamp
17Hose, Bleach
18WP3354845 Whirlpool Clip
19WP8543666 Whirlpool Washer
