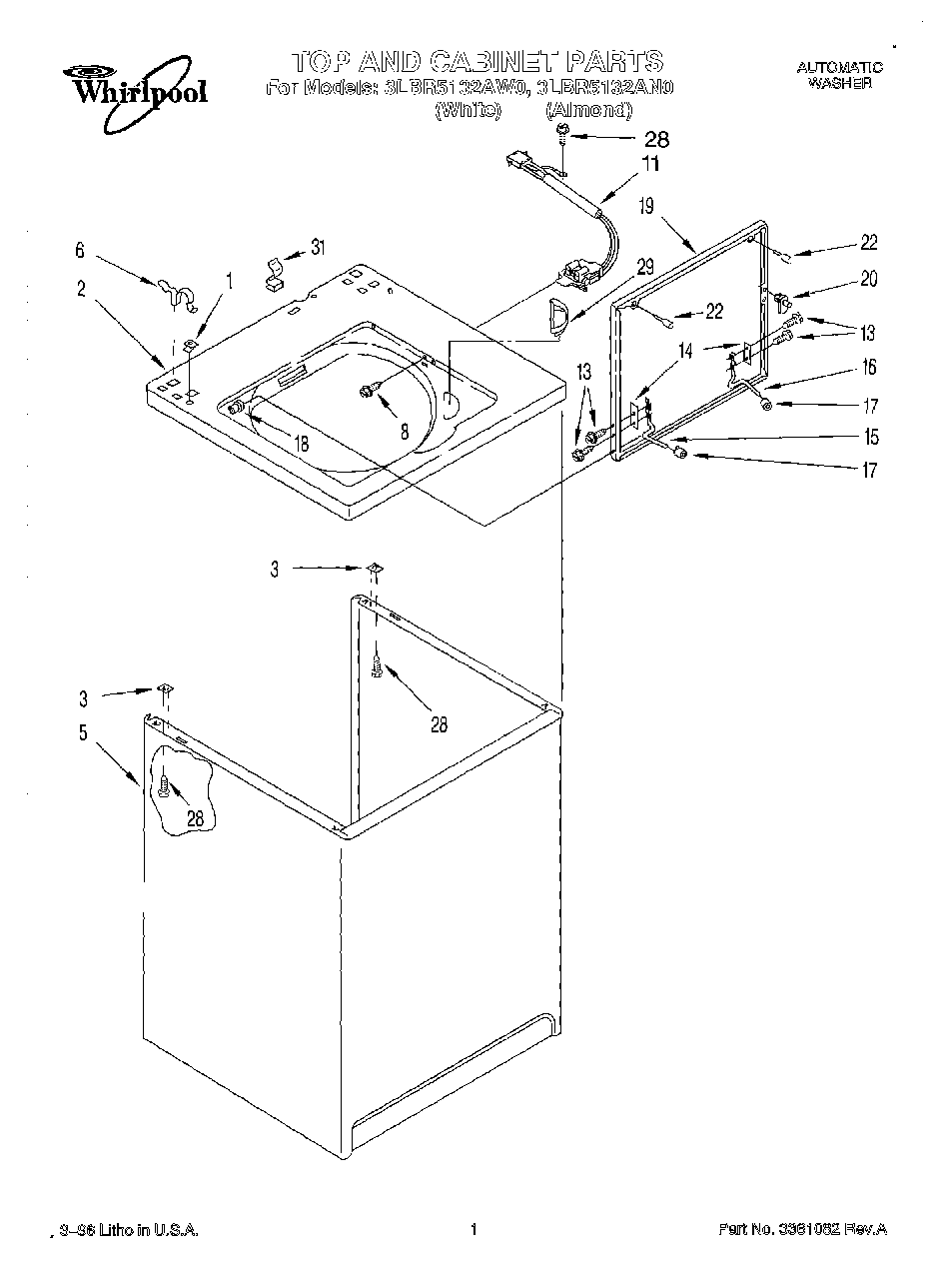

3LBR5132AN0 01 – TOP AND CABINET, LIT/OPTIONAL

Products

Position	Product
	WPL LIT3361082
	Golden Harvest
	Golden Harvest (Uncut)
	Shipping Kit
	WPL 89121
	LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON ROLLER & PIN)
	WP285195 Whirlpool Sealer Assembly
	Sheet, Installation Instructions
	Manual, (Washer) Do-It-Yourself
	Guide, Use and Care
	WPL LIT3361006
	72110 Whirlpool Dryer Touch-Up Paint, Golden Harvest 6 Oz
	350572 Whirlpool Oil Transmission 15 Oz
	Drain Protector (Not Included)
	350956 Whirlpool Spray Assembly
	799344 Whirlpool Refrigerator Paint
	72017 Whirlpool Appliance Touch-Up Paint White
	WP72107 Whirlpool Touchup
	Leveler (Thinner)
	350930 Whirlpool White Spray Paint
	Almond (Uncut)
	285320 Whirlpool Washer Siphon Break Kit
	350938 Whirlpool Spray Gun
1	WP357213 Whirlpool Hinge Stopper
2	Top (For Designer White Model)
2	Top (For Almond Model)
3	WP62750 Whirlpool Spacer
5	Cabinet (White)
5	Cabinet (Almond)
6	WP62780 Whirlpool Cabinet Clip
8	WP3356311 Whirlpool Screw
11	285671 Whirlpool Lid Switch Assembly
13	SCREW
14	WP21097 Whirlpool Pad
15	WP54584 Whirlpool Hinge
16	WP54583 Whirlpool Hinge
17	Bumper, Lid Hinge
18	WP21258 Whirlpool Washer Lid Hinge Bearing
19	Lid (Almond)
19	Lid (White)
20	WP358684 Whirlpool Strike Assembly
22	WP9724509 Whirlpool Bumper
28	SCREW
29	WP3362952 Whirlpool Bezel
31	WP90016 Whirlpool Clip
