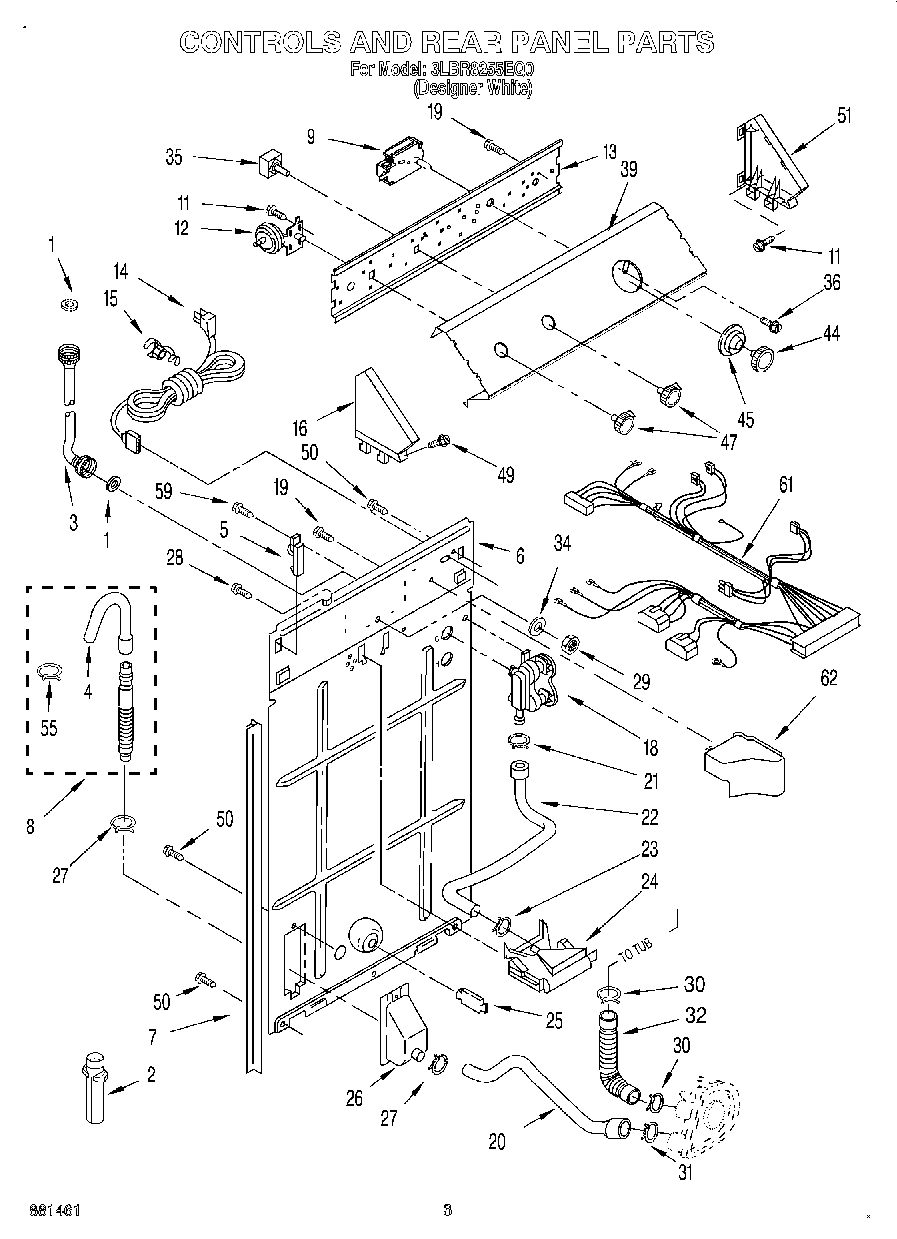

3LBR8255EQ0 02 – CONTROLS AND REAR PANEL

Products

Position	Product
1	WP16123 Whirlpool Washer
2	3363920A Whirlpool Adapter Assembly
3	WPW10489643 Whirlpool Fill Hose
4	WP3357027 Whirlpool Nozzle Assembly
5	Hinge, Console (2)
6	Panel, Rear
7	WP62747 Whirlpool Pad
8	285664 Whirlpool Drain Hose
8	285666 Whirlpool Drain Hose 10'
8	285702 Whirlpool Extensions
9	Timer, Control (50 Hz.) (Motor Not A Service Part)
11	WP90767 Whirlpool Screw
12	WP3356465 Whirlpool Washer Water Level Switch
13	Bracket, Control
14	Cord, Power
15	Strain Relief, Power Cord
16	Cap, End (L.H.)
18	WP3360397 Whirlpool Valve
19	WP3351614 Whirlpool Screw
20	Hose, Pump To Drain
21	WP596669 Whirlpool Hose Clamp
22	HOSE
24	WP3347034 Whirlpool Vacuum Break
25	WP8519200 Whirlpool Support Assembly
26	WPW10358149 Whirlpool Hose
27	WP356138 Whirlpool Hose Clamp
28	WP308544 Whirlpool Screw
29	W10080180 Whirlpool Nut
30	WP616099 Whirlpool Clamp
31	WP371502 Whirlpool Clamp
32	285871 Whirlpool Hose and Clamp
34	Washer (2)
35	Switch, Water Temperature
36	W10915367 Whirlpool Screw Assembly
39	Panel, Console
44	W10807860 Whirlpool White Control Knob
45	WP3957841 Whirlpool Dial
47	WP3957796 Whirlpool Knob
49	WP388326 Whirlpool Screw
50	WP3390631 Whirlpool Screw
51	Cap, End (R.H.)
55	WP3357331 Whirlpool Clamp
59	WP308685 Whirlpool Microwave Screw
61	WPL 3950818
62	Shield, Inlet
