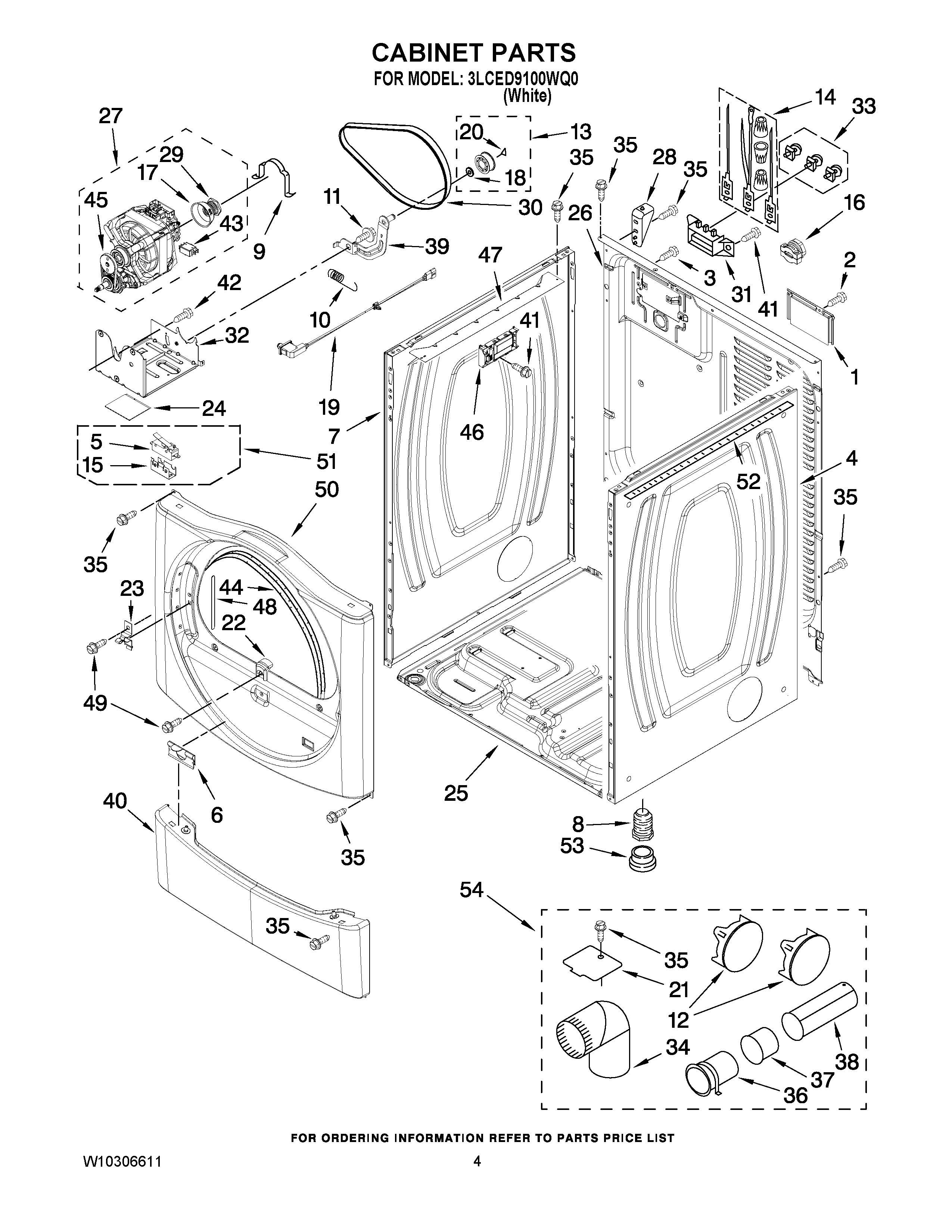

3LCED9100WQ0 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1Cover, Terminal Block
2WP90767 Whirlpool Screw
3SCREW GROUND
4W10542714 Whirlpool Panel
5WP8564010 Whirlpool Plug Switch
6W11295573 Whirlpool Clip
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13279640 Whirlpool Dryer Idler Pulley Kit
14279318 Whirlpool Terminal
158564011 Whirlpool Bracket
16W11704629 Whirlpool Clamp
17WP3393657 Whirlpool Belt Retainer
18WPW10121334 Whirlpool Washer
19W11192375 Whirlpool Door Switch
20WPW10512946 Whirlpool Dryer Tri-Ring Drum Roller
21WPW10354249 Whirlpool Cover
228565083 Whirlpool Ramp Assembly
23WP8565122 Whirlpool Strike Assembly
24W11113654 Whirlpool Pad
25W11215531 Whirlpool Base
26W10225180 Whirlpool Rear Panel
27W10416574 Whirlpool Motor Drive
28W10137398 Whirlpool Block
29W10167237 Whirlpool Motor Pulley
30WPW10131172 Whirlpool Belt
31WP3397659 Whirlpool Terminal Block
32W11676491 Whirlpool Base
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35WP489464 Whirlpool Refrigerator Screw
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
39WPW10344192 Whirlpool Idler Pulley
40WP8540621 Whirlpool Toe Panel
423400934 Whirlpool Screw
43279827 Whirlpool Dryer Drive Motor
44WP3387242 Whirlpool Seal
45WP3405160 Whirlpool Belt Assembly
46WPW10166301 Whirlpool Electronic Control Board
47WP8563727 Whirlpool Bracket
488565043 Whirlpool Plug
49Screw, 10-16 x 1/2
50FRONT PANEL (INCLUDES ILLUS. 44)
51W11236387 Whirlpool Switch
52Seal, Foam
53WP3391943 Whirlpool Foot Boot
54W10470674 Whirlpool Dryer Side Vent Exhaust Kit
