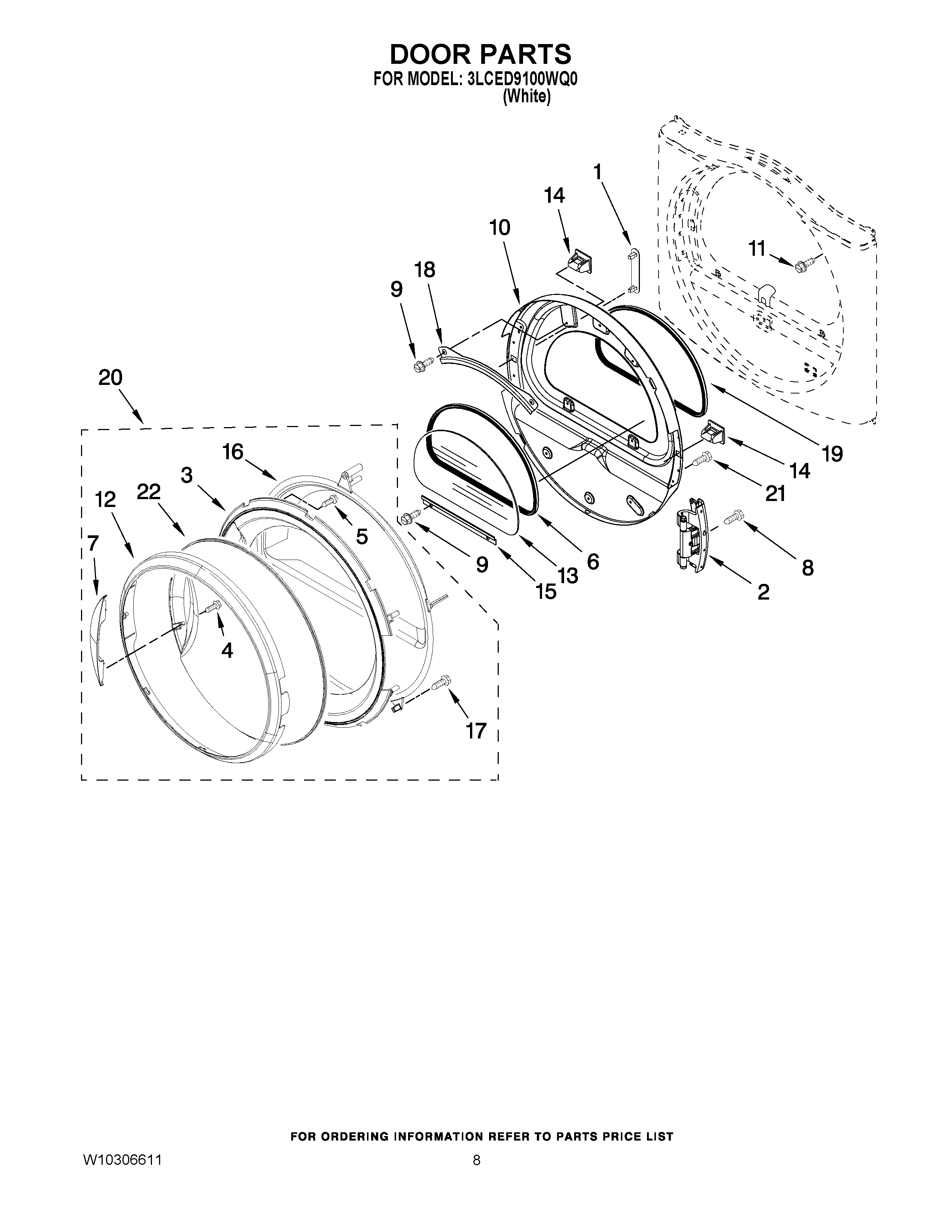

3LCED9100WQ0 04 – DOOR PARTS

Products

Position	Product
1	8565119 Whirlpool Plug
2	ASSEMBLY, DOOR HINGE
3	ASSEMBLY, DOOR INTERMEDIATE
4	Screw, 8-18 x 5/8
5	3400618 Whirlpool Screw
6	W11706993 Whirlpool Seal
7	HANDLE, DOOR (INCLUDES ILLUS. 20.)
8	WPW10159996 Whirlpool Screw
9	SCREW, 10-16
10	WPW10164062 Whirlpool Door Assembly
11	Screw, 8-18 x 11/16
12	8576577 Whirlpool Door
13	WPW10286878 Whirlpool Window
14	279570 Whirlpool Dryer Door Latch Kit
15	W10822054 Whirlpool Retainer
16	WP8580059 Whirlpool Window
17	WP8534022 Whirlpool Screw
18	8519356 Whirlpool Retainer
19	WPW10163915 Whirlpool Door Seal
20	DOOR, OUTER ASSEMBLY
21	SCREW
22	DOOR SCREEN
