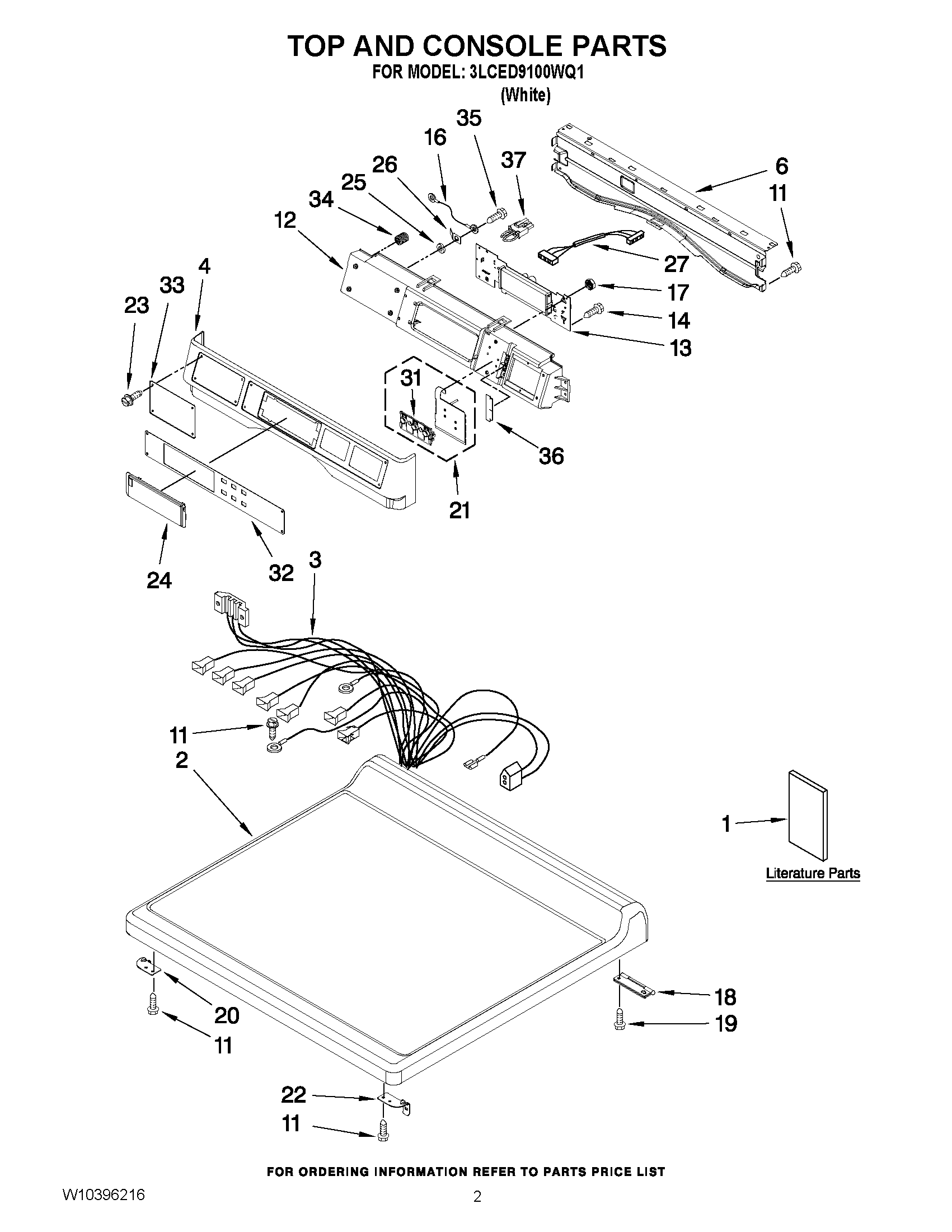

3LCED9100WQ1 01 – TOP AND CONSOLE PARTS

3LCED9100WQ1 01 – TOP AND CONSOLE PARTS

Written by

in

3LCED9100WQ1 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1TECH SHEET
1INSTALLATION INSTRUCTION
1USER INSTRUCTION
2W11622909 Whirlpool Top
3HARNESS, MAIN
4W10779120 Whirlpool Console
6WP8565237 Whirlpool Bracket Assembly
11WP488627 Whirlpool Refrigerator Screw
12W10137427 Whirlpool Console
13WPW10166346 Whirlpool Electronic Control Board
14489136 Whirlpool Refrigerator Screw
16Ground Wire Assembly
17WPW10139046 Whirlpool Nut
18WP8565018 Whirlpool Hinge
19WP488729 Whirlpool Refrigerator Door Screw
20W10137445 Whirlpool Bracket Assembly
21WPW10135255 Whirlpool Switch
22W10137444 Whirlpool Bracket
23WPW10137457 Whirlpool Screw
24WPW10267645 Whirlpool Cover Assembly
25W10189075 Whirlpool Washer
26TAB, GROUNDING
27W10166307 Whirlpool Wire Harness
31PUSH BUTTON
32FASCIA-CONSOLE
33FASCIA-DISPENSER
34WPW10189313 Whirlpool Insert
35WP488234 Whirlpool Air Conditioner Screw
36W10187276 Whirlpool Gasket
37W11129439 Whirlpool Wire Harness
