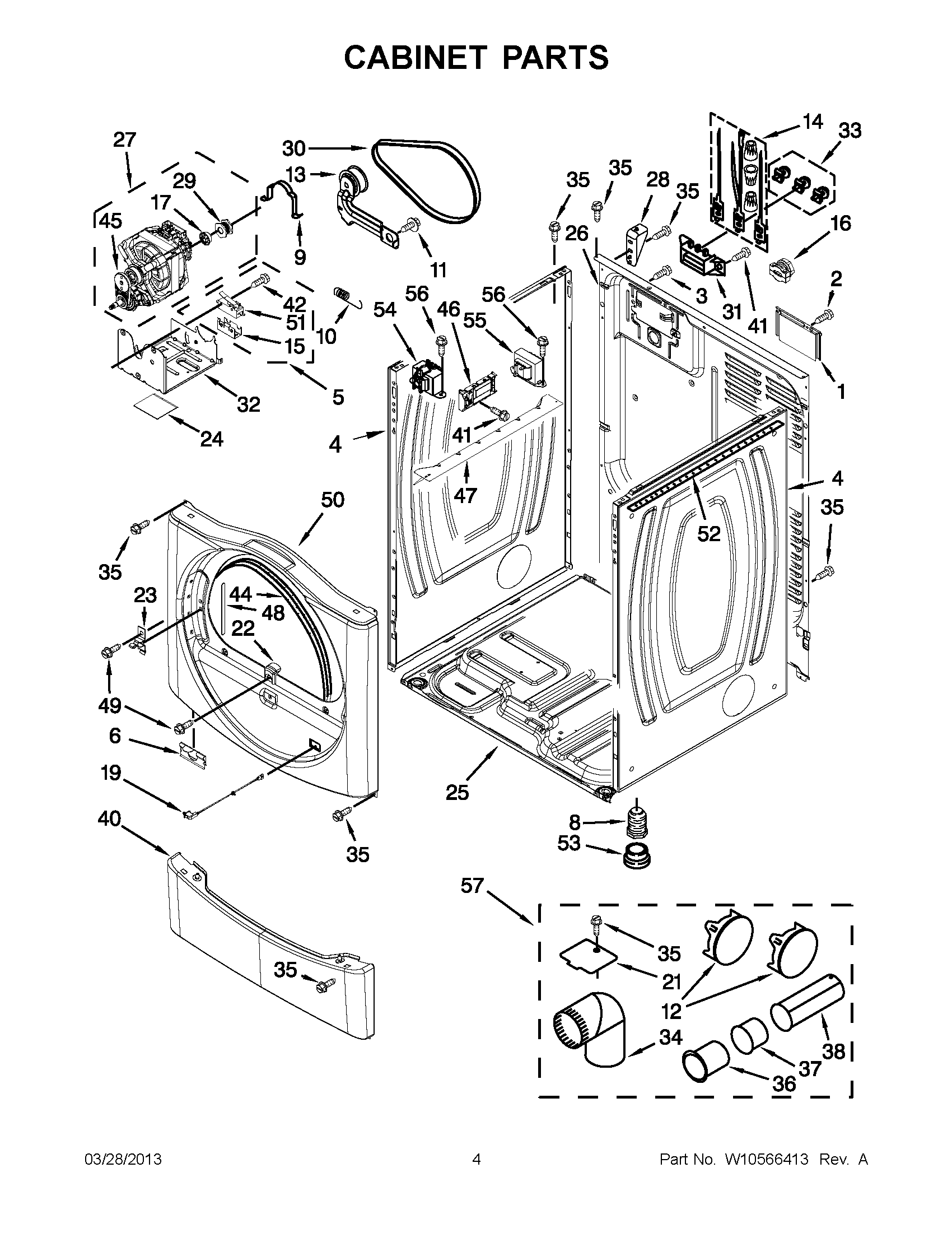

3LCED9100WQ2 02 – CABINET PARTS

3LCED9100WQ2 02 – CABINET PARTS

Written by

in

3LCED9100WQ2 02 – CABINET PARTS

Products

PositionProduct
NI49621 Whirlpool Leveling Feet
1Cover, Terminal Block
2WP90767 Whirlpool Screw
3W10850756 Whirlpool Screw
4W10542714 Whirlpool Panel
5W10410873 Whirlpool Plug Switch
6W11295573 Whirlpool Clip
9WP660658 Whirlpool Clamp
10WPW10446781 Whirlpool Spring
11WP3389420 Whirlpool Screw
12WPW10404617 Whirlpool Plug Assembly
13WPW10344192 Whirlpool Idler Pulley
14279318 Whirlpool Terminal
158564011 Whirlpool Bracket
16W11704629 Whirlpool Clamp
17WP3393657 Whirlpool Belt Retainer
19W11192658 Whirlpool Door Switch
21WPW10354249 Whirlpool Cover
228580015 Whirlpool Ramp
23WP8565122 Whirlpool Strike Assembly
24W11113654 Whirlpool Pad
25W11215531 Whirlpool Base
26W10225180 Whirlpool Rear Panel
27W10416574 Whirlpool Motor Drive
28W10137398 Whirlpool Block
29W10167237 Whirlpool Motor Pulley
30WPW10131172 Whirlpool Belt
31WP3397659 Whirlpool Terminal Block
32W11676491 Whirlpool Base
33279393 Whirlpool Terminal Block Screw and Nut Kit
34WPW10416072 Whirlpool Elbow
35WP488729 Whirlpool Refrigerator Door Screw
36WP8563747 Whirlpool Exhaust Pipe
37WPW10331278 Whirlpool Exhaust Pipe
38WP8563749 Whirlpool Exhaust Pipe
40WP8540621 Whirlpool Toe Panel
41WP489464 Whirlpool Refrigerator Screw
423400934 Whirlpool Screw
44WP3387242 Whirlpool Seal
45WP3405160 Whirlpool Belt Assembly
46WPW10166301 Whirlpool Electronic Control Board
47WP8563727 Whirlpool Bracket
488565043 Whirlpool Plug
49WP308685 Whirlpool Microwave Screw
50FRONT PANEL (WHITE)
51W11236387 Whirlpool Switch
52Seal, Foam
53WP3391943 Whirlpool Foot Boot
54W10751202 Whirlpool Transformer
55W10237958 Whirlpool Transformer
57W10470674 Whirlpool Dryer Side Vent Exhaust Kit
