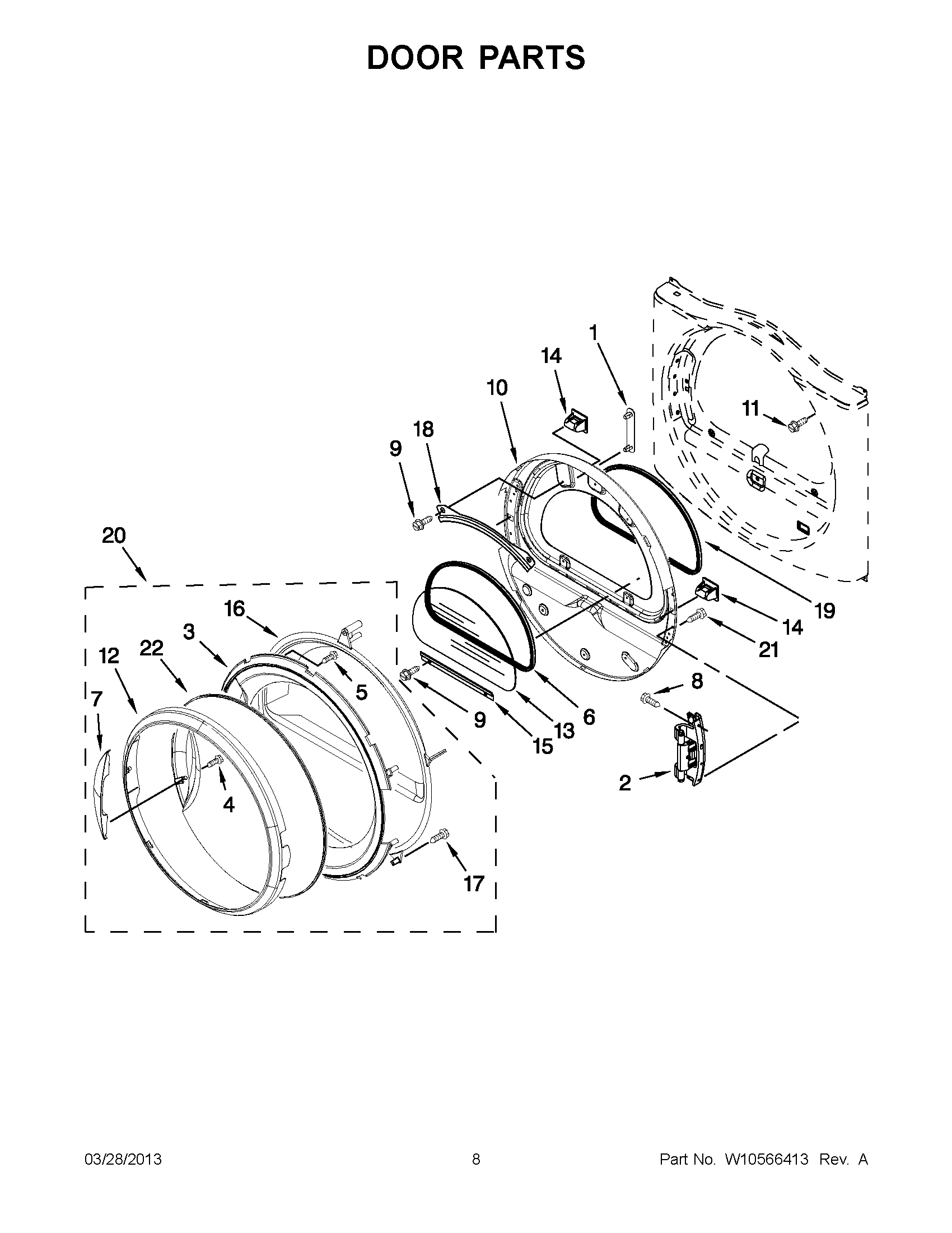

3LCED9100WQ2 04 – DOOR PARTSadmin2025-04-26T10:54:23+00:003LCED9100WQ2 04 – DOOR PARTS ProductsPositionProduct18565119 Whirlpool Plug2ASSEMBLY, DOOR HINGE3ASSEMBLY, DOOR INTERMEDIATE53400618 Whirlpool Screw6W11706993 Whirlpool Seal7HANDLE, DOOR (INCLUDES ILLUS. 20.)8WPW10159996 Whirlpool Screw9WP3373329 Whirlpool Dishwasher Screw10W11690171 Whirlpool Door Assembly11WP355515 Whirlpool Screw128576577 Whirlpool Door13WPW10286878 Whirlpool Window14279570 Whirlpool Dryer Door Latch Kit15W10822054 Whirlpool Retainer16WP8580059 Whirlpool Window17WP8534022 Whirlpool Screw188519356 Whirlpool Retainer19WPW10163915 Whirlpool Door Seal20DOOR, OUTER ASSEMBLY21SCREW22DOOR SCREEN
