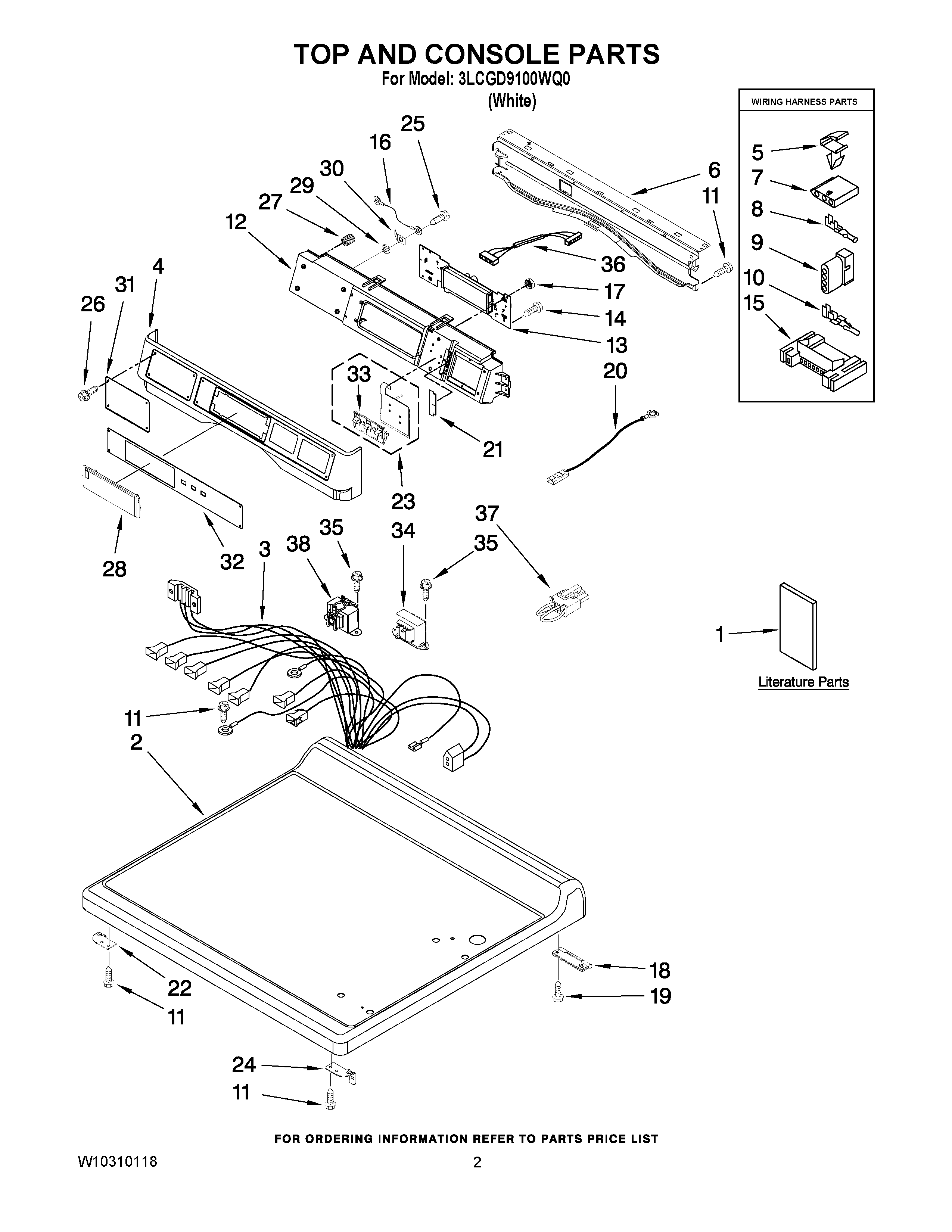

3LCGD9100WQ0 01 – TOP AND CONSOLE PARTS

3LCGD9100WQ0 01 – TOP AND CONSOLE PARTS

Written by

in

3LCGD9100WQ0 01 – TOP AND CONSOLE PARTS

Products

PositionProduct
1PARTS LIST
1TECH SHEET
1INSTALLATION INSTRUCTION
1USER INSTRUCTION
2W11622909 Whirlpool Top
3HARNESS, MAIN
4W10779120 Whirlpool Console
5WP3394427 Whirlpool Clip
6WP8565237 Whirlpool Bracket Assembly
7353424 Whirlpool Connector
8WP94614 Whirlpool Terminal
93936144 Whirlpool Connector
10WP596797 Whirlpool Terminal
11WP489464 Whirlpool Refrigerator Screw
12W10137427 Whirlpool Console
13WPW10166346 Whirlpool Electronic Control Board
14489136 Whirlpool Refrigerator Screw
153395683 Whirlpool Connector
16Ground Wire Assembly
17WPW10139046 Whirlpool Nut
18WP8565018 Whirlpool Hinge
19Screw, 8-18 x 1/2
20JUMPER, STATIC
21W10187276 Whirlpool Gasket
22W10137445 Whirlpool Bracket Assembly
23WPW10135255 Whirlpool Switch
24W10137444 Whirlpool Bracket
25WP488234 Whirlpool Air Conditioner Screw
26WPW10137457 Whirlpool Screw
27WPW10189313 Whirlpool Insert
28WPW10131114 Whirlpool Cover Assembly
29W10189075 Whirlpool Washer
30TAB, GROUNDING
31FASCIA-DISPENSER
32FASCIA-CONSOLE
33PUSH BUTTON
34W10237958 Whirlpool Transformer
35WPL W10080820
36W10166307 Whirlpool Wire Harness
37W11129439 Whirlpool Wire Harness
38W10751202 Whirlpool Transformer
